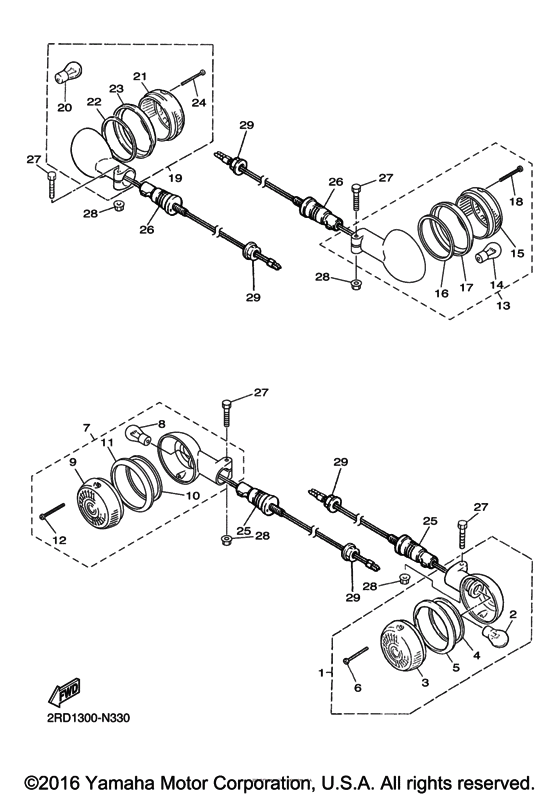

Flasher light Diagram Yamaha SR400
- Year
- 2017
- Model code
- 2RDD
- Sales region
- USA
- Базовая модель
- SR400HB
- Engine Capacity
- 400
- Model
- SR400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2RD-83310-00-00 Front Flasher Light Assy 1 |
2RD-83310-00-00 |
US $60.23 |
||
|
2
|
2
256-84714-61-00
Bulb (12V-27/8W)
|
256-84714-61-00 |
— | ||
| replacements | |||||
|
2
|
2
137-84714-61-XX
Bulb (12V-21/5W)
|
137-84714-61-XX |
— | ||
|
2
|
2
137-84714-61-00 Bulb (12V-21/5W) |
137-84714-61-00 |
from US $4.53 |
||
|
3
|
3
42X-83312-10-00 Lens, Flasher |
42X-83312-10-00 |
from US $14.45 |
||
|
4
|
4
1D6-83313-00-00 Gasket, Flasher Lens |
1D6-83313-00-00 |
from US $3.12 |
||
|
5
|
5
1D6-83363-00-00 Lens, Rim |
1D6-83363-00-00 |
from US $18.70 |
||
|
6
|
6
57M-83358-00-00 Screw, Special |
57M-83358-00-00 |
from US $1.56 |
||
| replacement | |||||
|
6
|
6
901-51030-03-00 Screw, Countersunk |
901-51030-03-00 |
from US $1.40 |
||
|
7
|
7
2RD-83320-00-00 Front Flasher Light Assy 2 |
2RD-83320-00-00 |
US $52.81 |
||
|
8
|
8
256-84714-61-00
Bulb (12V-27/8W)
|
256-84714-61-00 |
— | ||
| replacements | |||||
|
8
|
8
137-84714-61-XX
Bulb (12V-21/5W)
|
137-84714-61-XX |
— | ||
|
8
|
8
137-84714-61-00 Bulb (12V-21/5W) |
137-84714-61-00 |
from US $4.53 |
||
|
9
|
9
42X-83312-20-00 Lens, Flasher |
42X-83312-20-00 |
from US $14.45 |
||
|
10
|
10
1D6-83313-00-00 Gasket, Flasher Lens |
1D6-83313-00-00 |
from US $3.12 |
||
|
11
|
11
1D6-83363-10-00 Lens, Rim |
1D6-83363-10-00 |
from US $18.70 |
||
|
12
|
12
57M-83358-00-00 Screw, Special |
57M-83358-00-00 |
from US $1.56 |
||
| replacement | |||||
|
12
|
12
901-51030-03-00 Screw, Countersunk |
901-51030-03-00 |
from US $1.40 |
||
|
13
|
13
1AA-83330-K9-00 Rear Flasher Light Assy 1 |
1AA-83330-K9-00 |
from US $63.82 |
||
|
14
|
14
256-83311-70-00 Bulb (12V-27W) |
256-83311-70-00 |
from US $1.91 |
||
| replacement | |||||
|
14
|
14
256-83311-70-XX
Bulb (12V-27W)
|
256-83311-70-XX |
— | ||
|
15
|
15
42X-83312-20-00 Lens, Flasher |
42X-83312-20-00 |
from US $14.45 |
||
|
16
|
16
1D6-83313-00-00 Gasket, Flasher Lens |
1D6-83313-00-00 |
from US $3.12 |
||
|
17
|
17
1D6-83363-10-00 Lens, Rim |
1D6-83363-10-00 |
from US $18.70 |
||
|
18
|
18
57M-83358-00-00 Screw, Special |
57M-83358-00-00 |
from US $1.56 |
||
| replacement | |||||
|
18
|
18
901-51030-03-00 Screw, Countersunk |
901-51030-03-00 |
from US $1.40 |
||
|
19
|
19
1AA-83340-K9-00 Rear Flasher Light Assy 2 |
1AA-83340-K9-00 |
from US $68.80 |
||
|
20
|
20
256-83311-70-00 Bulb (12V-27W) |
256-83311-70-00 |
from US $1.91 |
||
| replacement | |||||
|
20
|
20
256-83311-70-XX
Bulb (12V-27W)
|
256-83311-70-XX |
— | ||
|
21
|
21
42X-83312-10-00 Lens, Flasher |
42X-83312-10-00 |
from US $14.45 |
||
|
22
|
22
1D6-83313-00-00 Gasket, Flasher Lens |
1D6-83313-00-00 |
from US $3.12 |
||
|
23
|
23
1D6-83363-00-00 Lens, Rim |
1D6-83363-00-00 |
from US $18.70 |
||
|
24
|
24
57M-83358-00-00 Screw, Special |
57M-83358-00-00 |
from US $1.56 |
||
| replacement | |||||
|
24
|
24
901-51030-03-00 Screw, Countersunk |
901-51030-03-00 |
from US $1.40 |
||
|
25
|
25
1AA-83318-00-00 Stay,flasher 1 |
1AA-83318-00-00 |
from US $33.72 |
||
|
26
|
26
1AA-83328-00-00 Stay, Flasher 2 (24M-83318-00) |
1AA-83328-00-00 |
from US $33.72 |
||
|
27
|
27
97004-06030-00 Bolt |
97004-06030-00 |
from US $1.42 |
||
| replacement | |||||
|
27
|
27
97017-06030-00 Bolt |
97017-06030-00 |
from US $1.07 |
||
|
28
|
28
957-04065-00-00
Nut, Flange(3Bm)
|
957-04065-00-00 |
— | ||
| replacement | |||||
|
28
|
28
95780-06500-00 Nut, Flange |
95780-06500-00 |
from US $1.13 |
||
|
29
|
29
95707-12500-00 Nut, Flange |
95707-12500-00 |
from US $1.98 |
||
| replacements | |||||
|
29
|
29
90179-12657-00 Nut |
90179-12657-00 |
from US $6.52 |
||
|
29
|
29
90179-12588-00 Nut, Flange |
90179-12588-00 |
from US $1.98 |
||
