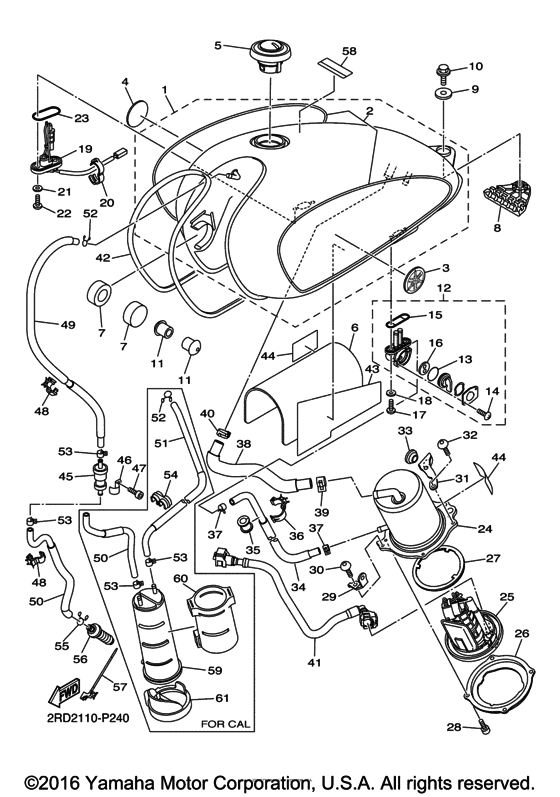

Fuel tank Diagram Yamaha SR400
- Year
- 2017
- Model code
- 2RDD
- Sales region
- USA
- Базовая модель
- SR400HB
- Engine Capacity
- 400
- Model
- SR400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3HT-Y2410-10-08 Fuel Tank CompUse for Color YAMAHA BLACK ( YB / 0033 ) |
3HT-Y2410-10-08 |
from US $881.76 |
||
|
2
|
2
2RD-24240-60-00 Graphic Set |
2RD-24240-60-00 |
from US $131.53 |
||
|
3
|
3
1JN-24161-10-00 Emblem |
1JN-24161-10-00 |
from US $28.19 |
||
|
4
|
4
1JN-24162-10-00 Emblem |
1JN-24162-10-00 |
from US $28.19 |
||
|
5
|
5
5BN-24602-10-00 Fuel Cap Assy |
5BN-24602-10-00 |
from US $104.86 |
||
|
5
|
5
4NK-24602-20-00 Cap AssyFOR CALIFORNIA |
4NK-24602-20-00 |
from US $106.80 |
||
|
6
|
6
905-20030-08-00 Damper, Plate |
905-20030-08-00 |
from US $22.39 |
||
|
7
|
7
2J2-24181-00-00 Damper, Locating 1 |
2J2-24181-00-00 |
from US $7.93 |
||
|
8
|
8
1J7-24182-01-00 Damper, Locating 2 |
1J7-24182-01-00 |
from US $18.28 |
||
|
9
|
9
90209-08098-00 Washer 341833480000 |
90209-08098-00 |
from US $3.47 |
||
| replacement | |||||
|
9
|
9
90209-08008-00 Washer |
90209-08008-00 |
from US $5.24 |
||
|
10
|
10
95807-08012-00 Bolt, Flange |
95807-08012-00 |
from US $1.07 |
||
| replacement | |||||
|
10
|
10
95817-08012-00 Bolt, Flange |
95817-08012-00 |
from US $1.07 |
||
|
11
|
11
2J2-24183-01-00 Damper, Locating 3 (2J2-24183-0 |
2J2-24183-01-00 |
from US $6.38 |
||
|
12
|
12
4DP-24500-10-00 Fuel Cock Assy 1 |
4DP-24500-10-00 |
from US $43.93 |
||
|
13
|
13
3AJ-24534-10-00 Seal, Cock |
3AJ-24534-10-00 |
from US $5.38 |
||
|
14
|
14
98507-03008-00 Screw, Pan Head |
98507-03008-00 |
from US $2.27 |
||
| replacement | |||||
|
14
|
14
98517-03008-00 Screw, Pan Head |
98517-03008-00 |
from US $2.27 |
||
|
15
|
15
4X8-24512-10-00 Gasket |
4X8-24512-10-00 |
from US $9.35 |
||
|
16
|
16
3AC-24523-00-00 Valve Packing |
3AC-24523-00-00 |
from US $6.80 |
||
|
17
|
17
90149-06108-00 Screw |
90149-06108-00 |
from US $1.42 |
||
|
18
|
18
902-02051-93-00
Washer, Plate(3Gm)
|
902-02051-93-00 |
— | ||
| replacement | |||||
|
18
|
18
902-02051-87-00 Washer, Plate |
902-02051-87-00 |
from US $1.28 |
||
|
19
|
19
3HT-85752-01-00 Sender Unit Assy, Fuel Meter |
3HT-85752-01-00 |
from US $65.90 |
||
| replacement | |||||
|
19
|
19
3HT-85752-02-00 Sender Unit Assy, Fuel Meter |
3HT-85752-02-00 |
from US $65.90 |
||
|
20
|
20
90464-16001-00 Clamp |
90464-16001-00 |
from US $1.84 |
||
|
21
|
21
902-02051-93-00
Washer, Plate(3Gm)
|
902-02051-93-00 |
— | ||
| replacement | |||||
|
21
|
21
902-02051-87-00 Washer, Plate |
902-02051-87-00 |
from US $1.28 |
||
|
22
|
22
90149-06108-00 Screw |
90149-06108-00 |
from US $1.42 |
||
|
23
|
23
42X-85753-00-00 Gasket, Sender Unit |
42X-85753-00-00 |
from US $3.32 |
||
|
24
|
24
3HT-244A0-00-00 Pump Case Comp |
3HT-244A0-00-00 |
from US $368.28 |
||
|
25
|
25
3HT-13907-01-00 Fuel Pump Comp. |
3HT-13907-01-00 |
from US $314.59 |
||
| replacement | |||||
|
25
|
25
3HT-13907-02-00 Fuel Pump Comp. |
3HT-13907-02-00 |
from US $293.54 |
||
|
26
|
26
35C-24491-00-00 Bracket, Fuel Pump |
35C-24491-00-00 |
from US $21.68 |
||
|
27
|
27
1S4-24486-00-00 O-Ring |
1S4-24486-00-00 |
from US $27.63 |
||
|
28
|
28
91312-05010-00 Bolt |
91312-05010-00 |
from US $1.56 |
||
|
29
|
29
3HT-24425-00-00 Bracket, Fuel Pump 1 |
3HT-24425-00-00 |
from US $9.92 |
||
|
30
|
30
92012-06010-00 Bolt, Button Head |
92012-06010-00 |
from US $1.34 |
||
|
31
|
31
3HT-24426-00-00 Bracket, Fuel Pump 2 |
3HT-24426-00-00 |
from US $7.92 |
||
|
32
|
32
92012-06010-00 Bolt, Button Head |
92012-06010-00 |
from US $1.34 |
||
|
33
|
33
904-80150-04-00 Grommet |
904-80150-04-00 |
from US $3.64 |
||
|
34
|
34
2RD-24311-00-00 Pipe, Fuel 1 |
2RD-24311-00-00 |
from US $11.14 |
||
|
35
|
35
904-80205-43-00 Grommet |
904-80205-43-00 |
from US $3.54 |
||
|
36
|
36
90464-20191-00 Clamp |
90464-20191-00 |
from US $1.70 |
||
|
37
|
37
90467-10135-00 Clip |
90467-10135-00 |
from US $1.28 |
||
|
38
|
38
2RD-24312-00-00 Pipe 2 |
2RD-24312-00-00 |
from US $39.35 |
||
|
39
|
39
90467-160A2-00 Clip |
90467-160A2-00 |
from US $2.55 |
||
|
40
|
40
5PX-2411M-00-00 Clip |
5PX-2411M-00-00 |
from US $6.52 |
||
|
41
|
41
3HT-13971-00-00 Pipe, Fuel 1 |
3HT-13971-00-00 |
from US $59.13 |
||
| replacement | |||||
|
41
|
41
3HT-13971-01-00 |
3HT-13971-01-00 |
from US $59.13 |
||
|
42
|
42
3EB-24189-10-00 Plate, Mold |
3EB-24189-10-00 |
from US $27.77 |
||
|
43
|
43
3HT-21735-00-00 Seal 2 |
3HT-21735-00-00 |
from US $25.50 |
||
|
44
|
44
1JK-21735-00-00 Seal 2 |
1JK-21735-00-00 |
from US $6.52 |
||
|
45
|
45
5PX-24180-00-00 Roll Over Valve Assy |
5PX-24180-00-00 |
from US $40.20 |
||
|
46
|
46
5PX-24136-00-00 Clamp 2 |
5PX-24136-00-00 |
from US $5.10 |
||
|
47
|
47
91317-05010-00 Bolt |
91317-05010-00 |
from US $1.21 |
||
|
48
|
48
90464-10190-00 ClampFOR CALIFORNIA |
90464-10190-00 |
from US $1.70 |
||
|
49
|
49
3HT-24313-00-00 Pipe 3 |
3HT-24313-00-00 |
from US $35.14 |
||
|
50
|
50
2RD-24314-00-00 Pipe 4FOR CALIFORNIA |
2RD-24314-00-00 |
US $40.75 |
||
|
50
|
50
3HT-24314-00-00 Pipe 4FOR U49 |
3HT-24314-00-00 |
from US $11.23 |
||
|
51
|
51
2RD-24315-00-00 Pipe 5FOR CALIFORNIA |
2RD-24315-00-00 |
US $58.84 |
||
|
52
|
52
904-67090-06-00
Clip
FOR U49 |
904-67090-06-00 |
— | ||
| replacement | |||||
|
52
|
52
904-67090-A2-00 ClipFOR U49 |
904-67090-A2-00 |
from US $1.56 |
||
|
53
|
53
90467-090A1-00 ClipFOR U49 |
90467-090A1-00 |
from US $1.56 |
||
|
54
|
54
90464-12224-00 ClampFOR CALIFORNIA |
90464-12224-00 |
from US $2.55 |
||
|
55
|
55
90467-11106-00 Clip |
90467-11106-00 |
from US $1.28 |
||
|
56
|
56
5UX-24481-00-00 Plug |
5UX-24481-00-00 |
from US $7.51 |
||
|
57
|
57
90464-15200-00 Clamp |
90464-15200-00 |
from US $4.68 |
||
|
58
|
58
1TP-2118K-A1-00
Label, Caution
|
1TP-2118K-A1-00 |
— | ||
| replacement | |||||
|
58
|
58
1TP-2118K-A2-00 Label, Caution |
1TP-2118K-A2-00 |
from US $4.53 |
||
|
59
|
59
2RC-24170-00-00 Canister AssyFOR CALIFORNIA |
2RC-24170-00-00 |
from US $154.74 |
||
|
60
|
60
2RD-24181-00-00 Damper, Locating 1FOR CALIFORNIA |
2RD-24181-00-00 |
US $182.72 |
||
|
61
|
61
2RD-2419E-00-00 Cover, CanisterFOR CALIFORNIA |
2RD-2419E-00-00 |
US $163.42 |
||
