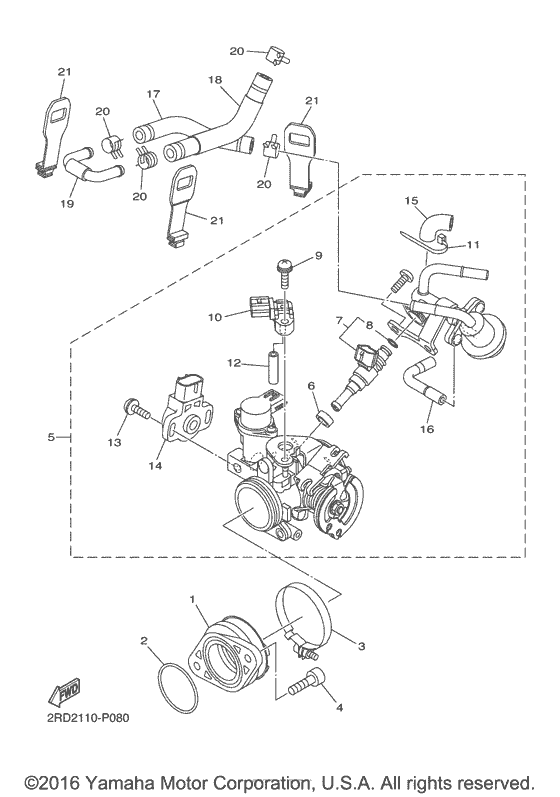

Intake 2 Diagram Yamaha SR400
- Year
- 2017
- Model code
- 2RDD
- Sales region
- USA
- Базовая модель
- SR400HB
- Engine Capacity
- 400
- Model
- SR400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3HT-13586-R0-00 Joint, Carburetor 1 |
3HT-13586-R0-00 |
from US $85.24 |
||
|
2
|
2
932-10406-59-00 O-Ring |
932-10406-59-00 |
from US $5.81 |
||
|
3
|
3
90450-54006-00 Hose Clamp Assy |
90450-54006-00 |
from US $12.61 |
||
|
4
|
4
91317-06020-00 Bolt |
91317-06020-00 |
from US $1.07 |
||
|
5
|
5
3HT-13750-R0-00 Throttle Body Assy |
3HT-13750-R0-00 |
from US $1,068.55 |
||
|
5
|
5
2RD-13750-10-00 Throttle Body AssyFOR CALIFORNIA |
2RD-13750-10-00 |
US $1,209.26 |
||
|
6
|
6
8FP-13556-00-00 Rubber, Injector |
8FP-13556-00-00 |
from US $4.53 |
||
|
7
|
7
4C8-13761-00-00 Injector |
4C8-13761-00-00 |
from US $167.17 |
||
|
8
|
8
5PS-14147-00-00 O-Ring |
5PS-14147-00-00 |
from US $10.06 |
||
|
9
|
9
2C0-14216-00-00 Screw |
2C0-14216-00-00 |
from US $2.98 |
||
|
10
|
10
5S7-82380-00-00 Sensor, Pressure |
5S7-82380-00-00 |
from US $143.69 |
||
|
11
|
11
4KM-14137-00-00 Clip |
4KM-14137-00-00 |
from US $7.69 |
||
|
12
|
12
5FL-14348-10-00 Pipe 1 |
5FL-14348-10-00 |
from US $4.11 |
||
|
13
|
13
8CC-14216-10-00 Screw |
8CC-14216-10-00 |
from US $6.09 |
||
|
14
|
14
3P6-85885-00-00
Throttle Sensor Assy
|
3P6-85885-00-00 |
— | ||
| replacement | |||||
|
14
|
14
3P6-85885-01-00 THROTTLE SENSOR ASSY |
3P6-85885-01-00 |
from US $91.88 |
||
|
15
|
15
3D7-14987-00-00 Hose |
3D7-14987-00-00 |
from US $16.86 |
||
|
16
|
16
3HT-13544-R0-00 Hose, Vacuum Sensing 2 |
3HT-13544-R0-00 |
from US $16.86 |
||
|
17
|
17
2RD-13972-00-00 Pipe, Fuel 2 |
2RD-13972-00-00 |
US $32.24 |
||
|
18
|
18
2RD-13973-00-00 Pipe, Fuel 3 |
2RD-13973-00-00 |
US $49.86 |
||
|
19
|
19
3HT-14389-R0-00 Nipple Assy |
3HT-14389-R0-00 |
from US $20.12 |
||
|
20
|
20
90467-12003-00 Clip |
90467-12003-00 |
from US $3.54 |
||
|
21
|
21
5JW-1479J-01-00 Cover 2 |
5JW-1479J-01-00 |
from US $4.68 |
||
| replacement | |||||
|
21
|
21
5JW-1479J-02-00 |
5JW-1479J-02-00 |
US $6.46 |
||
