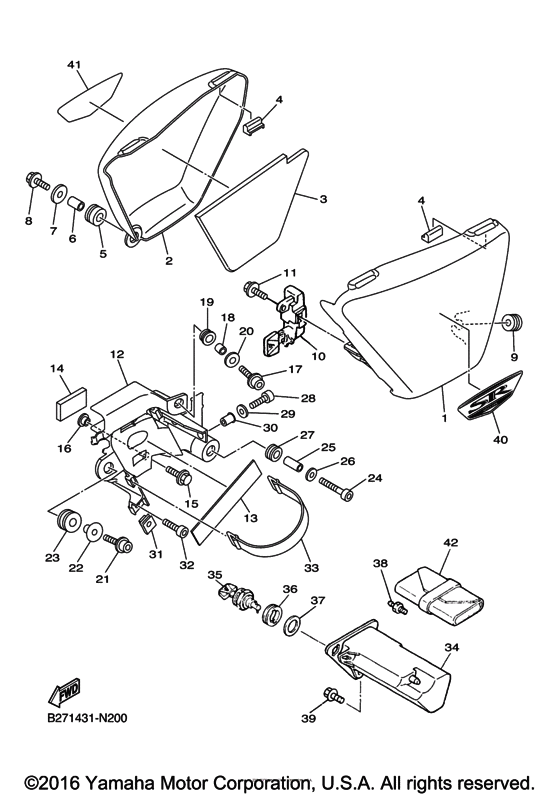

Side cover Diagram Yamaha SR400
- Year
- 2017
- Model code
- 2RDD
- Sales region
- USA
- Базовая модель
- SR400HB
- Engine Capacity
- 400
- Model
- SR400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3HT-21711-00-33 Cover, Side 1Use for Color YAMAHA BLACK ( YB / 0033 ) |
3HT-21711-00-33 |
from US $65.35 |
||
| replacements | |||||
|
1
|
1
3HT-21711-01-33 COVER, SIDE 1Use for Color YAMAHA BLACK ( YB / 0033 ) |
3HT-21711-01-33 |
from US $65.35 |
||
|
1
|
1
3HT-21711-02-33 Use for Color YAMAHA BLACK ( YB / 0033 ) |
3HT-21711-02-33 |
from US $65.35 |
||
|
2
|
2
3HT-21721-00-33 Cover, Side 2Use for Color YAMAHA BLACK ( YB / 0033 ) |
3HT-21721-00-33 |
from US $65.35 |
||
| replacement | |||||
|
2
|
2
3HT-21721-01-33 Use for Color YAMAHA BLACK ( YB / 0033 ) |
3HT-21721-01-33 |
from US $65.35 |
||
|
3
|
3
3HT-2174Y-00-00 Damper |
3HT-2174Y-00-00 |
from US $7.61 |
||
|
4
|
4
466-21717-00-00 Damper |
466-21717-00-00 |
from US $9.49 |
||
|
5
|
5
90480-14105-00 Grommet |
90480-14105-00 |
from US $1.70 |
||
|
6
|
6
90387-07393-00 Collar, Lever 1 |
90387-07393-00 |
from US $6.09 |
||
| replacement | |||||
|
6
|
6
36Y-83913-01-00 Collar, Lever 1 |
36Y-83913-01-00 |
from US $6.09 |
||
|
7
|
7
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
|
8
|
8
95807-06030-00 Bolt, Flange |
95807-06030-00 |
from US $1.07 |
||
| replacement | |||||
|
8
|
8
95817-06030-00 Bolt, Flange |
95817-06030-00 |
from US $1.07 |
||
|
9
|
9
90480-12236-00 Grommet |
90480-12236-00 |
from US $1.70 |
||
|
10
|
10
4R8-21708-01-00 Lock Assy 2 |
4R8-21708-01-00 |
from US $49.73 |
||
|
11
|
11
95807-06014-00 Bolt, Flange |
95807-06014-00 |
from US $1.07 |
||
| replacement | |||||
|
11
|
11
95817-06014-00 Bolt, Flange |
95817-06014-00 |
from US $1.07 |
||
|
12
|
12
3HT-2177A-00-00 Box |
3HT-2177A-00-00 |
from US $12.47 |
||
|
13
|
13
5PX-21778-00-00 Damper, Locating 1 |
5PX-21778-00-00 |
from US $2.13 |
||
|
14
|
14
1TX-28371-00-00 Damper |
1TX-28371-00-00 |
from US $2.41 |
||
|
15
|
15
95822-06014-00 Bolt, Flange |
95822-06014-00 |
from US $1.07 |
||
| replacement | |||||
|
15
|
15
95817-06014-00 Bolt, Flange |
95817-06014-00 |
from US $1.07 |
||
|
16
|
16
90387-06184-00 Collar |
90387-06184-00 |
from US $3.83 |
||
|
17
|
17
901-10061-64-00
Bolt, Hexagon Socket Head
|
901-10061-64-00 |
— | ||
| replacement | |||||
|
17
|
17
90110-06163-00 Bolt, Hexagon Socket Head |
90110-06163-00 |
from US $1.70 |
||
|
18
|
18
90387-063K3-00 Collar |
90387-063K3-00 |
from US $1.56 |
||
| replacement | |||||
|
18
|
18
90387-06113-00 Collar |
90387-06113-00 |
from US $1.56 |
||
|
19
|
19
90480-12003-00 Grommet |
90480-12003-00 |
from US $1.84 |
||
|
20
|
20
90201-06104-00 Washer, Plate |
90201-06104-00 |
from US $1.56 |
||
|
21
|
21
901-10061-64-00
Bolt, Hexagon Socket Head
|
901-10061-64-00 |
— | ||
| replacement | |||||
|
21
|
21
90110-06163-00 Bolt, Hexagon Socket Head |
90110-06163-00 |
from US $1.70 |
||
|
22
|
22
90387-077M3-00 Collar |
90387-077M3-00 |
from US $5.38 |
||
| replacement | |||||
|
22
|
22
90387-06M52-00 Collar |
90387-06M52-00 |
from US $5.38 |
||
|
23
|
23
90480-14452-00 Grommet |
90480-14452-00 |
from US $1.98 |
||
|
24
|
24
913-12060-35-00
Bolt
|
913-12060-35-00 |
— | ||
| replacements | |||||
|
24
|
24
90110-06X45-00 Bolt, Hexagon Sock |
90110-06X45-00 |
US $41.20 |
||
|
24
|
24
901-1006X-79-00 Bolt, Hexagon Socket Head |
901-1006X-79-00 |
from US $3.98 |
||
|
25
|
25
90387-06045-00 Collar |
90387-06045-00 |
from US $1.73 |
||
|
26
|
26
90201-06104-00 Washer, Plate |
90201-06104-00 |
from US $1.56 |
||
|
27
|
27
90480-14003-00 Grommet |
90480-14003-00 |
from US $1.34 |
||
|
28
|
28
91312-05020-00 Bolt |
91312-05020-00 |
from US $1.42 |
||
| replacements | |||||
|
28
|
28
901-5705X-12-00
Screw, Pan Head
|
901-5705X-12-00 |
— | ||
|
28
|
28
913-17050-20-00 Bolt |
913-17050-20-00 |
from US $1.42 |
||
|
29
|
29
92902-05600-00 Washer, Plate |
92902-05600-00 |
US $1.07 |
||
| replacements | |||||
|
29
|
29
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
29
|
29
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.07 |
||
|
30
|
30
90179-05633-00 Nut |
90179-05633-00 |
from US $4.53 |
||
|
31
|
31
90183-060A1-00 Nut, Spring |
90183-060A1-00 |
from US $4.39 |
||
|
32
|
32
91312-06016-00 Bolt |
91312-06016-00 |
from US $1.07 |
||
| replacement | |||||
|
32
|
32
91317-06016-00 Bolt |
91317-06016-00 |
from US $1.04 |
||
|
33
|
33
133-82131-00-00 Band, Battery |
133-82131-00-00 |
from US $12.89 |
||
|
34
|
34
48U-21248-00-00 Box |
48U-21248-00-00 |
from US $16.43 |
||
|
35
|
35
5A8-21708-00-00 Lock Assembly 2 |
5A8-21708-00-00 |
from US $51.08 |
||
|
36
|
36
90480-24186-00 Grommet |
90480-24186-00 |
from US $1.84 |
||
|
37
|
37
90201-225A4-00 Washer, Plate (T=1.0) |
90201-225A4-00 |
from US $1.28 |
||
|
38
|
38
937-00060-04-00
Nipple, Grease
|
937-00060-04-00 |
— | ||
| replacement | |||||
|
38
|
38
93700-06M03-00 Nipple, Grease |
93700-06M03-00 |
from US $2.66 |
||
|
39
|
39
901-19060-44-00
Bolt, With Washer
|
901-19060-44-00 |
— | ||
| replacement | |||||
|
39
|
39
901-19062-42-00 Bolt, With Washer |
901-19062-42-00 |
from US $1.35 |
||
|
40
|
40
2RD-21781-00-00 Emblem 1 |
2RD-21781-00-00 |
from US $34.99 |
||
|
41
|
41
2RD-21781-00-00 Emblem 1 |
2RD-21781-00-00 |
from US $34.99 |
||
|
42
|
42
3GW-28100-01-00 Tool Kit |
3GW-28100-01-00 |
from US $49.60 |
||
| replacement | |||||
|
42
|
42
3GW-28100-02-00 |
3GW-28100-02-00 |
from US $49.60 |
||
