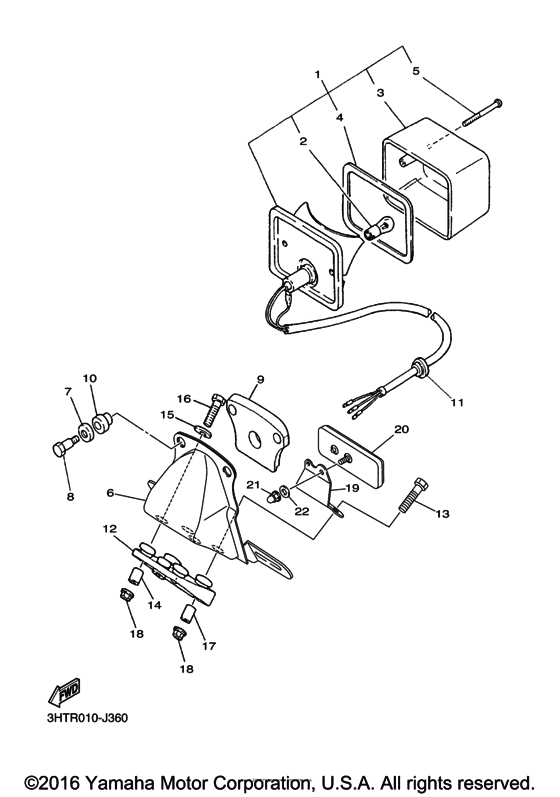

Taillight Diagram Yamaha SR400
- Year
- 2017
- Model code
- 2RDD
- Sales region
- USA
- Базовая модель
- SR400HB
- Engine Capacity
- 400
- Model
- SR400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2RD-84710-10-00 Taillight Unit Assy |
2RD-84710-10-00 |
US $62.46 |
||
|
2
|
2
256-84714-61-00
Bulb (12V-27/8W)
|
256-84714-61-00 |
— | ||
| replacements | |||||
|
2
|
2
137-84714-61-XX
Bulb (12V-21/5W)
|
137-84714-61-XX |
— | ||
|
2
|
2
137-84714-61-00 Bulb (12V-21/5W) |
137-84714-61-00 |
from US $4.53 |
||
|
3
|
3
1M1-84521-60-00 Lens, Tail Lamp |
1M1-84521-60-00 |
from US $32.08 |
||
|
4
|
4
1M1-84523-60-00 Gasket, Lens |
1M1-84523-60-00 |
from US $10.06 |
||
| replacement | |||||
|
4
|
4
3TJ-14457-00-00 Seal |
3TJ-14457-00-00 |
from US $15.30 |
||
|
5
|
5
1M1-84524-60-00
Screw, Lens Fitting
|
1M1-84524-60-00 |
— | ||
| replacements | |||||
|
5
|
5
90157-04111-00 Screw, Pan Head(M80)Screw, pan head |
90157-04111-00 |
from US $2.27 |
||
|
5
|
5
5BF-8433E-00-00 Screw, Adjusting |
5BF-8433E-00-00 |
from US $2.13 |
||
|
6
|
6
3HT-84751-20-00 Bracket, License |
3HT-84751-20-00 |
from US $116.19 |
||
|
7
|
7
2H7-84754-00-00 Washer, Special |
2H7-84754-00-00 |
from US $3.40 |
||
|
8
|
8
3HT-84526-00-00 Screw |
3HT-84526-00-00 |
from US $3.54 |
||
|
9
|
9
1M1-84512-60-00 Seat, Base |
1M1-84512-60-00 |
from US $10.71 |
||
|
10
|
10
1M1-84527-60-00 Damper |
1M1-84527-60-00 |
from US $6.52 |
||
|
11
|
11
90480-12013-00 Grommet |
90480-12013-00 |
from US $1.84 |
||
|
12
|
12
2J2-84753-00-00 Damper |
2J2-84753-00-00 |
from US $16.86 |
||
|
13
|
13
97007-06030-00 Bolt |
97007-06030-00 |
from US $1.07 |
||
| replacement | |||||
|
13
|
13
97017-06030-00 Bolt |
97017-06030-00 |
from US $1.07 |
||
|
14
|
14
90387-0714B-00 Collar |
90387-0714B-00 |
from US $1.98 |
||
| replacement | |||||
|
14
|
14
90387-07020-00 Collar |
90387-07020-00 |
from US $1.98 |
||
|
15
|
15
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
|
16
|
16
97007-06025-00 Bolt |
97007-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
16
|
16
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.34 |
||
|
17
|
17
90387-0714A-00 Collar |
90387-0714A-00 |
from US $0.90 |
||
|
18
|
18
95707-06500-00 Nut, Flange |
95707-06500-00 |
from US $1.05 |
||
|
19
|
19
3HT-21641-00-00 Bracket, Reflector |
3HT-21641-00-00 |
from US $9.07 |
||
|
20
|
20
3Y6-85130-02-00 Reflector |
3Y6-85130-02-00 |
from US $10.58 |
||
|
21
|
21
90176-05003-00 Nut, Crown |
90176-05003-00 |
from US $3.26 |
||
|
22
|
22
95707-05500-00 Nut, Flange |
95707-05500-00 |
from US $1.07 |
||
