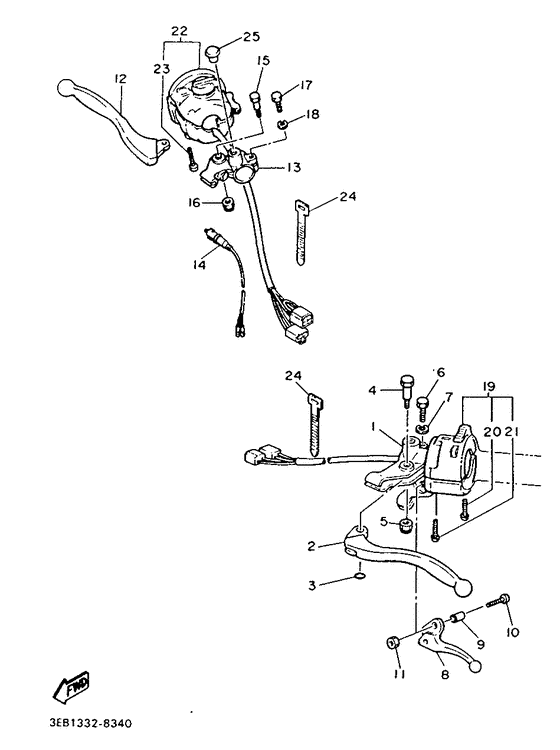

Handle switch & lever Diagram Yamaha SR500
- Year
- 1988
- Colour
- Maple Red (MPR; 00EG)
- Model code
- 3EB1
- Sales region
- Germany (999)
- Engine Capacity
- 500
- Model
- SR500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
583-82911-01-98 Holder, Lever 1Low gloss black |
583-82911-01-98 |
from US $54.85 |
||
| replacement | |||||
|
01
|
01
583-82911-02-00 Holder, Lever 1Low gloss black |
583-82911-02-00 |
from US $54.85 |
||
|
02
|
02
2H7-83912-00-00 Lever 1 |
2H7-83912-00-00 |
US $19.69 |
||
| replacement | |||||
|
02
|
02
2H0-83912-31-00 Lever 1 |
2H0-83912-31-00 |
from US $19.69 |
||
|
03
|
03
93210-11368-00 O-Ring (2H7) |
93210-11368-00 |
from US $3.54 |
||
|
04
|
04
2H7-83945-00-00
Bolt
|
2H7-83945-00-00 |
— | ||
| replacements | |||||
|
04
|
04
90109-06799-00 Bolt (2Yk1) |
90109-06799-00 |
from US $3.60 |
||
|
04
|
04
90109-06798-00 Bolt |
90109-06798-00 |
from US $2.36 |
||
|
05
|
05
956-01061-00-00
Nut, U
|
956-01061-00-00 |
— | ||
| replacement | |||||
|
05
|
05
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
06
|
06
97001-06022-00 Bolt |
97001-06022-00 |
from US $2.27 |
||
| replacement | |||||
|
06
|
06
97095-06022-00 Bolt |
97095-06022-00 |
from US $2.50 |
||
|
07
|
07
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
07
|
07
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
08
|
08
583-83981-00-00 Lever, Decompression |
583-83981-00-00 |
from US $18.99 |
||
|
09
|
09
583-83913-00-00 Collar, Lever 1 |
583-83913-00-00 |
from US $2.83 |
||
| replacement | |||||
|
09
|
09
5BE-83913-00-00 Collar, Lever 1 |
5BE-83913-00-00 |
from US $2.83 |
||
|
10
|
10
98501-05018-00 Screw, Pan Head |
98501-05018-00 |
from US $1.56 |
||
| replacements | |||||
|
10
|
10
98507-05018-00 Screw, Pan Head |
98507-05018-00 |
from US $1.56 |
||
|
10
|
10
98580-05018-00 Screw Panhead (669) |
98580-05018-00 |
from US $2.27 |
||
|
11
|
11
95601-05100-00 Nut, U |
95601-05100-00 |
US $1.98 |
||
| replacement | |||||
|
11
|
11
95617-05100-00 Nut, U |
95617-05100-00 |
from US $2.22 |
||
|
12
|
12
2H0-83922-20-00 Lever 2 |
2H0-83922-20-00 |
from US $19.27 |
||
| replacement | |||||
|
12
|
12
2H0-83922-31-00 Lever 2 |
2H0-83922-31-00 |
from US $18.86 |
||
|
13
|
13
1JN-82921-00-98 Holder, Lever 2Low gloss black |
1JN-82921-00-98 |
US $77.78 |
||
| replacement | |||||
|
13
|
13
1JN-82921-01-00 Holder, Lever 2Low gloss black |
1JN-82921-01-00 |
US $65.98 |
||
|
14
|
14
395-83980-00-00 Front Stop Switch As |
395-83980-00-00 |
from US $34.31 |
||
| replacement | |||||
|
14
|
14
395-83980-09-00 Front Stop Switch Assy |
395-83980-09-00 |
from US $28.79 |
||
|
15
|
15
90109-06798-00 Bolt |
90109-06798-00 |
from US $2.36 |
||
|
16
|
16
956-01061-00-00
Nut, U
|
956-01061-00-00 |
— | ||
| replacement | |||||
|
16
|
16
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
17
|
17
97001-06022-00 Bolt |
97001-06022-00 |
from US $2.27 |
||
| replacement | |||||
|
17
|
17
97095-06022-00 Bolt |
97095-06022-00 |
from US $2.50 |
||
|
18
|
18
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
18
|
18
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
19
|
19
2J3-83972-00-98
Switch, Handle 4
Low gloss black |
2J3-83972-00-98 |
— | ||
| replacement | |||||
|
19
|
19
2J3-83972-01-98
Switch, Handle 4 (L.h)
Low gloss black |
2J3-83972-01-98 |
— | ||
|
20
|
20
985-06050-30-00
Screw, Pan Head
|
985-06050-30-00 |
— | ||
| replacement | |||||
|
20
|
20
98517-05030-00 Screw, Pan Head |
98517-05030-00 |
from US $1.22 |
||
|
21
|
21
98506-05035-00 Screw, Pan Head |
98506-05035-00 |
from US $1.42 |
||
| replacement | |||||
|
21
|
21
98507-05035-00 Screw, Pan Head |
98507-05035-00 |
from US $1.42 |
||
|
22
|
22
3G4-83975-80-00
Switch, Handle 2
|
3G4-83975-80-00 |
— | ||
|
23
|
23
985-01050-30-00
Screw, Pan Head
|
985-01050-30-00 |
— | ||
| replacements | |||||
|
23
|
23
98517-05030-00 Screw, Pan Head |
98517-05030-00 |
from US $1.22 |
||
|
23
|
23
98580-05530-00 Screw, Pan Head |
98580-05530-00 |
from US $2.27 |
||
|
24
|
24
437-83936-00-00
Band, Switch Cord
|
437-83936-00-00 |
— | ||
| replacement | |||||
|
24
|
24
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
|
25
|
25
90338-09012-00 Plug |
90338-09012-00 |
from US $3.33 |
||
