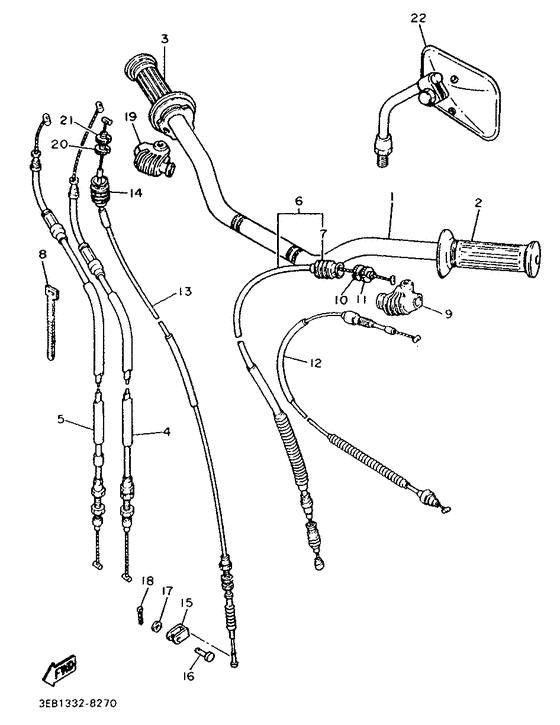

Steering handle & cable Diagram Yamaha SR500
- Year
- 1988
- Colour
- Maple Red (MPR; 00EG)
- Model code
- 3EB1
- Sales region
- Germany (999)
- Engine Capacity
- 500
- Model
- SR500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
33Y-26111-00-00 Handlebar |
33Y-26111-00-00 |
US $84.14 |
||
| replacements | |||||
|
01
|
01
33Y-26111-10-00
Handlebar
|
33Y-26111-10-00 |
— | ||
|
01
|
01
33Y-26111-11-00 Handlebar |
33Y-26111-11-00 |
from US $50.44 |
||
|
02
|
02
2H7-26241-00-00 Grip Lh |
2H7-26241-00-00 |
from US $11.33 |
||
| replacement | |||||
|
02
|
02
2H7-26241-01-00 |
2H7-26241-01-00 |
from US $11.33 |
||
|
03
|
03
2J2-26240-00-00 Grip Assembly Rh |
2J2-26240-00-00 |
from US $17.96 |
||
| replacement | |||||
|
03
|
03
2J2-26240-01-00 |
2J2-26240-01-00 |
from US $19.13 |
||
|
04
|
04
2H6-26311-10-00 Cable, Throttle 1 |
2H6-26311-10-00 |
US $63.28 |
||
|
05
|
05
2H6-26312-10-00 Cable, Throttle 2 |
2H6-26312-10-00 |
US $60.38 |
||
|
06
|
06
2H6-26335-00-00 Cable, clutch |
2H6-26335-00-00 |
US $44.90 |
||
|
07
|
07
1E6-26342-00-00 Boot, Cable |
1E6-26342-00-00 |
from US $15.68 |
||
|
08
|
08
341-26397-01-00
Band
|
341-26397-01-00 |
— | ||
| replacements | |||||
|
08
|
08
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
|
08
|
08
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
|
09
|
09
1E6-26372-00-00 Cover, Handle Lever 1 |
1E6-26372-00-00 |
from US $14.29 |
||
|
10
|
10
901-23080-46-00 Bolt |
901-23080-46-00 |
from US $3.74 |
||
| replacement | |||||
|
10
|
10
901-23080-02-00 Bolt |
901-23080-02-00 |
from US $3.74 |
||
|
11
|
11
901-79081-48-00
Nut
|
901-79081-48-00 |
— | ||
| replacement | |||||
|
11
|
11
901-79080-30-00 Nut |
901-79080-30-00 |
from US $6.94 |
||
|
12
|
12
2H6-26331-00-00 Cable, Decompression |
2H6-26331-00-00 |
US $37.03 |
||
|
13
|
13
1JN-26341-00-00 Wire, Brake 1 |
1JN-26341-00-00 |
US $54.99 |
||
|
14
|
14
1E6-26342-00-00 Boot, Cable |
1E6-26342-00-00 |
from US $15.68 |
||
|
15
|
15
156-26347-00-00 Joint, Wire |
156-26347-00-00 |
from US $10.33 |
||
|
16
|
16
90240-08013-00 Pin, Clevis |
90240-08013-00 |
from US $1.94 |
||
|
17
|
17
90201-08083-00 Washer, Plate |
90201-08083-00 |
from US $1.60 |
||
|
18
|
18
91401-20015-00 Pin. Cotter |
91401-20015-00 |
US $1.13 |
||
| replacements | |||||
|
18
|
18
91490-20015-00 Pin. Cotter |
91490-20015-00 |
from US $1.25 |
||
|
18
|
18
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.66 |
||
|
19
|
19
1E6-26372-00-00 Cover, Handle Lever 1 |
1E6-26372-00-00 |
from US $14.29 |
||
|
20
|
20
901-23080-46-00 Bolt |
901-23080-46-00 |
from US $3.74 |
||
| replacement | |||||
|
20
|
20
901-23080-02-00 Bolt |
901-23080-02-00 |
from US $3.74 |
||
|
21
|
21
901-79081-48-00
Nut
|
901-79081-48-00 |
— | ||
| replacement | |||||
|
21
|
21
901-79080-30-00 Nut |
901-79080-30-00 |
from US $6.94 |
||
|
22
|
22
2G2-26290-10-00 Mirror Assembly Lh |
2G2-26290-10-00 |
from US $39.04 |
||
