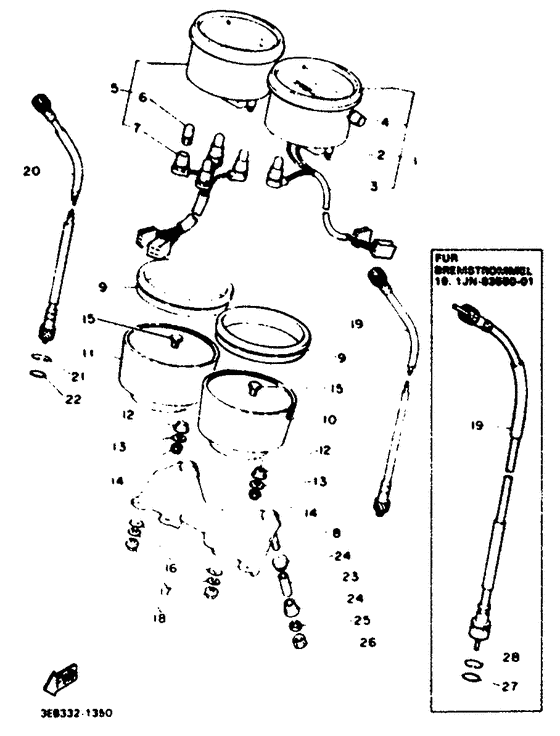

Meter Diagram Yamaha SR500
- Year
- 1991
- Colour
- Maple Red (MPR; 00EG)
- Model code
- 3EB2
- Sales region
- Germany (999)
- Engine Capacity
- 500
- Model
- SR500
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
2J3-83570-F1-00
Speedometer Assy
|
2J3-83570-F1-00 |
— | ||
|
02
|
02
4G1-84744-00-00 Bulb (12V-3.4W T10) |
4G1-84744-00-00 |
US $4.04 |
||
| replacement | |||||
|
02
|
02
4G1-84744-00-XX
Bulb (12V-3.4W T10)
|
4G1-84744-00-XX |
— | ||
|
03
|
03
3H1-83536-01-00
Socket, Meter
|
3H1-83536-01-00 |
— | ||
|
04
|
04
584-83578-71-00 Knob, Trip Meter |
584-83578-71-00 |
from US $14.17 |
||
| replacement | |||||
|
04
|
04
4SV-83578-00-00 Knob, Trip Meter |
4SV-83578-00-00 |
from US $14.17 |
||
|
05
|
05
2J3-83540-F1-00
Tachometer Assembly
|
2J3-83540-F1-00 |
— | ||
|
06
|
06
4G1-84744-00-00 Bulb (12V-3.4W T10) |
4G1-84744-00-00 |
US $4.04 |
||
| replacement | |||||
|
06
|
06
4G1-84744-00-XX
Bulb (12V-3.4W T10)
|
4G1-84744-00-XX |
— | ||
|
07
|
07
3H1-83520-01-00
Socket Cord Assy
|
3H1-83520-01-00 |
— | ||
| replacement | |||||
|
07
|
07
3BH-83520-00-00
Socket Cord Assy
|
3BH-83520-00-00 |
— | ||
|
08
|
08
2J2-83519-00-00 Bracket, Meter |
2J2-83519-00-00 |
from US $41.74 |
||
|
09
|
09
3H3-83513-00-00 Damper |
3H3-83513-00-00 |
from US $21.39 |
||
|
10
|
10
2J2-83507-00-00 Cover, Speedometer |
2J2-83507-00-00 |
from US $52.78 |
||
|
11
|
11
2J2-83508-00-00 Cover, Tachometer |
2J2-83508-00-00 |
from US $50.65 |
||
|
12
|
12
584-83523-00-00 Damper |
584-83523-00-00 |
from US $8.36 |
||
| replacement | |||||
|
12
|
12
21L-H3523-10-00
Damper
|
21L-H3523-10-00 |
— | ||
|
13
|
13
90201-05031-00 Washer, Plate |
90201-05031-00 |
from US $1.70 |
||
| replacements | |||||
|
13
|
13
90201-05725-00 Washer, Plate |
90201-05725-00 |
from US $1.70 |
||
|
13
|
13
90201-05043-00 Washer, Plate |
90201-05043-00 |
from US $1.70 |
||
|
14
|
14
95303-06800-00 Nut |
95303-06800-00 |
from US $1.07 |
||
| replacement | |||||
|
14
|
14
95380-06800-00 Nut (J17) |
95380-06800-00 |
from US $1.18 |
||
|
15
|
15
584-83546-00-00 Bolt |
584-83546-00-00 |
from US $2.98 |
||
|
16
|
16
92901-06200-00 Washer, Plain |
92901-06200-00 |
from US $1.07 |
||
| replacement | |||||
|
16
|
16
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
17
|
17
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
17
|
17
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
18
|
18
95303-06800-00 Nut |
95303-06800-00 |
from US $1.07 |
||
| replacement | |||||
|
18
|
18
95380-06800-00 Nut (J17) |
95380-06800-00 |
from US $1.18 |
||
|
19
|
19
1JN-83550-01-00 Speedometer Cable AsUr fur bremstrommel |
1JN-83550-01-00 |
from US $29.93 |
||
| replacement | |||||
|
19
|
19
1JN-83550-02-00 Speedometer Cable AssyUr fur bremstrommel |
1JN-83550-02-00 |
from US $39.79 |
||
|
19
|
19
34L-83550-01-00 Speedometer Cable AssyUr fur bremsscheibe |
34L-83550-01-00 |
from US $28.22 |
||
| replacement | |||||
|
19
|
19
16M-83550-01-00 Speedometer Cable AssyUr fur bremsscheibe |
16M-83550-01-00 |
from US $44.83 |
||
|
20
|
20
2J2-83560-00-00 Tachometer Cable Assy |
2J2-83560-00-00 |
from US $17.96 |
||
| replacement | |||||
|
20
|
20
2J2-83560-10-00 Tachometer Cable Assy |
2J2-83560-10-00 |
from US $21.60 |
||
|
21
|
21
102-25137-00-00 Ring, Stop |
102-25137-00-00 |
from US $3.05 |
||
|
22
|
22
932-10141-04-00
O-Ring
|
932-10141-04-00 |
— | ||
| replacement | |||||
|
22
|
22
93210-14579-00 O-Ring (26H) |
93210-14579-00 |
from US $1.39 |
||
|
23
|
23
90387-06249-00 Collar |
90387-06249-00 |
from US $1.28 |
||
|
24
|
24
1JK-83541-00-00 Damper |
1JK-83541-00-00 |
from US $7.23 |
||
|
25
|
25
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
25
|
25
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
26
|
26
953-03066-00-00
Nut, Hexagon
|
953-03066-00-00 |
— | ||
| replacement | |||||
|
26
|
26
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
27
|
27
932-10141-04-00
O-Ring
Fur bremstrommel |
932-10141-04-00 |
— | ||
| replacement | |||||
|
27
|
27
93210-14579-00 O-Ring (26H)Fur bremstrommel |
93210-14579-00 |
from US $1.39 |
||
|
28
|
28
102-25137-00-00 Ring, StopFur bremstrommel |
102-25137-00-00 |
from US $3.05 |
||
