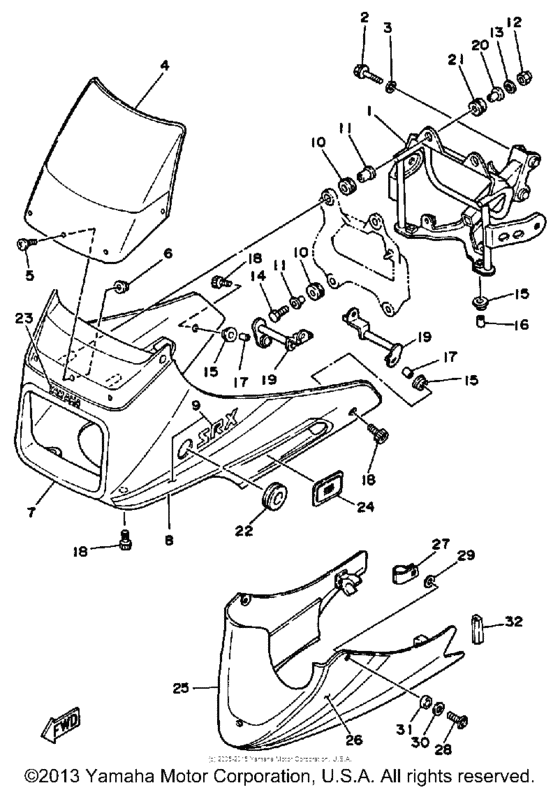

Cowling Diagram Yamaha SRX250
- Year
- 1987
- Sales region
- USA
- Engine Capacity
- 250
- Model
- SRX250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
52E-28321-01-00
Stay, Leg Shield L
|
52E-28321-01-00 |
— | ||
|
2
|
2
95026-08045-00 Bolt, Flange |
95026-08045-00 |
from US $1.56 |
||
| replacement | |||||
|
2
|
2
95027-08045-00 Bolt, Flange |
95027-08045-00 |
from US $1.56 |
||
|
3
|
3
929-06081-00-00
Washer, Spring
|
929-06081-00-00 |
— | ||
| replacement | |||||
|
3
|
3
92907-08100-00 Washer, Spring |
92907-08100-00 |
from US $0.85 |
||
|
4
|
4
52E-28380-10-00
Windscreen Assembly
|
52E-28380-10-00 |
— | ||
|
5
|
5
90150-05020-00 Screw, Round Head |
90150-05020-00 |
from US $3.68 |
||
|
6
|
6
95706-05500-00 Nut, With Washer |
95706-05500-00 |
from US $1.07 |
||
| replacement | |||||
|
6
|
6
95707-05500-00 Nut, Flange |
95707-05500-00 |
from US $1.07 |
||
|
7
|
7
52E-28351-00-GE
Body, Cowling
|
52E-28351-00-GE |
— | ||
|
8
|
8
2NV-28390-00-00
Grphc Set, Cowling
|
2NV-28390-00-00 |
— | ||
|
9
|
9
2NV-28368-00-00
Emblem
|
2NV-28368-00-00 |
— | ||
|
10
|
10
90480-14229-00 Grommet |
90480-14229-00 |
from US $1.66 |
||
|
11
|
11
903-87073-91-00 Collar |
903-87073-91-00 |
from US $1.84 |
||
|
12
|
12
95306-06800-00 Nut |
95306-06800-00 |
from US $1.56 |
||
| replacement | |||||
|
12
|
12
95307-06800-00 Nut |
95307-06800-00 |
from US $1.56 |
||
|
13
|
13
90201-062A8-00 Washer, Plate |
90201-062A8-00 |
from US $1.84 |
||
|
14
|
14
97016-06025-00 Bolt |
97016-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
14
|
14
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.34 |
||
|
15
|
15
904-80133-98-00
Grommet
|
904-80133-98-00 |
— | ||
| replacement | |||||
|
15
|
15
90480-13014-00 Grommet |
90480-13014-00 |
from US $2.27 |
||
|
16
|
16
90387-067K6-00 Collar |
90387-067K6-00 |
from US $1.35 |
||
|
17
|
17
90387-06241-00 Collar |
90387-06241-00 |
from US $1.28 |
||
|
18
|
18
901-10060-78-00
Bolt, Hexagon Socket Head
|
901-10060-78-00 |
— | ||
| replacement | |||||
|
18
|
18
901-10062-00-00 Bolt, Hexagon Socket Head |
901-10062-00-00 |
from US $1.70 |
||
|
19
|
19
52E-28322-00-00
Stay, Leg Shield Rleg Shield (R
R |
52E-28322-00-00 |
— | ||
|
20
|
20
90387-063G3-00 Collar |
90387-063G3-00 |
from US $6.52 |
||
|
21
|
21
90480-16114-00 Grommet |
90480-16114-00 |
from US $2.69 |
||
|
22
|
22
90480-35526-00 Grommet |
90480-35526-00 |
from US $6.23 |
||
|
23
|
23
99234-00020-00 Emblem, Yamaha (Black) |
99234-00020-00 |
from US $8.64 |
||
| replacement | |||||
|
23
|
23
99244-00080-00 Emblem, Yamaha |
99244-00080-00 |
from US $8.64 |
||
|
24
|
24
2ME-85110-00-00
Frt Reflector Assemblyassy
|
2ME-85110-00-00 |
— | ||
|
25
|
25
51Y-28360-50-GE
Under Cowling Assemblyassembly
|
51Y-28360-50-GE |
— | ||
|
26
|
26
2NV-28301-00-00
Graphic St, Lwr Cvrlower Cover
|
2NV-28301-00-00 |
— | ||
|
27
|
27
51Y-2837A-51-00
Clamp, Cowl Stay 1
|
51Y-2837A-51-00 |
— | ||
|
28
|
28
90110-06083-00 Bolt, Hexagon Socket Head |
90110-06083-00 |
from US $1.70 |
||
| replacement | |||||
|
28
|
28
90110-06202-00 Bolt, Hexagon Socket Head |
90110-06202-00 |
from US $1.70 |
||
|
29
|
29
902-02101-57-00
Washer, Plate
|
902-02101-57-00 |
— | ||
| replacement | |||||
|
29
|
29
90202-08111-00
Washer, Plate
|
90202-08111-00 |
— | ||
|
30
|
30
90202-10024-00 Washer, Plate |
90202-10024-00 |
from US $3.26 |
||
|
31
|
31
90387-062M5-00 Collar |
90387-062M5-00 |
from US $1.70 |
||
| replacement | |||||
|
31
|
31
90387-0600V-00 Collar(4Dn) |
90387-0600V-00 |
from US $1.70 |
||
|
32
|
32
50M-28346-50-00
Mole 2
|
50M-28346-50-00 |
— | ||
