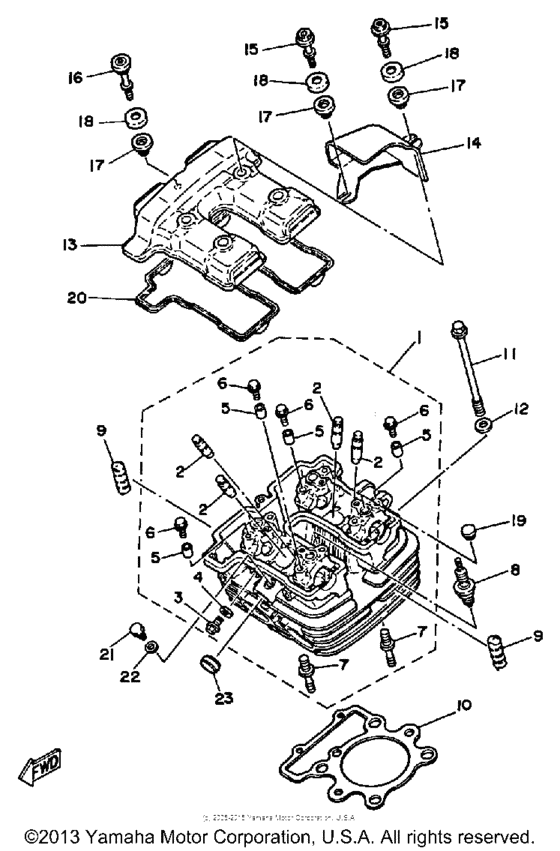

Cylinder head Diagram Yamaha SRX250
- Year
- 1987
- Sales region
- USA
- Engine Capacity
- 250
- Model
- SRX250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51Y-11110-01-00
Cylinder Head Assembly
|
51Y-11110-01-00 |
— | ||
|
2
|
2
999-99022-42-00 Guide, Intake |
999-99022-42-00 |
from US $52.74 |
||
|
3
|
3
90340-10003-00 Plug, Straight Scrw |
90340-10003-00 |
from US $1.66 |
||
|
4
|
4
90430-10171-00 Gasket (5R6) |
90430-10171-00 |
from US $1.28 |
||
|
5
|
5
995-10080-16-00
P1N, Dowel
|
995-10080-16-00 |
— | ||
| replacement | |||||
|
5
|
5
918-08160-23-00 Pin, Dowel(3Xw) |
918-08160-23-00 |
from US $1.34 |
||
|
6
|
6
90105-06153-00 Bolt, Flange |
90105-06153-00 |
from US $1.70 |
||
|
7
|
7
901-16103-78-00 Bolt, Stud |
901-16103-78-00 |
US $14.59 |
||
|
8
|
8
NGK-D8EA0-00-00 Ngk-D8Ea-10 PkPK U.R. |
NGK-D8EA0-00-00 |
US $5.30 |
||
| replacement | |||||
|
8
|
8
D8E-A0000-00-00 Spark plug D8EAPK U.R. |
D8E-A0000-00-00 |
US $50.20 |
||
|
9
|
9
30X-11161-00-00
Absorber 1
|
30X-11161-00-00 |
— | ||
|
10
|
10
51Y-11181-00-00 Gasket, Cylinder Head1CYLINDER |
51Y-11181-00-00 |
from US $74.74 |
||
|
11
|
11
90105-10608-00 Bolt, Flange |
90105-10608-00 |
from US $8.69 |
||
|
12
|
12
90201-102G9-00 Washer, Plate (26H) |
90201-102G9-00 |
from US $2.69 |
||
|
13
|
13
30X-11191-01-00
Cover, Cylinder Head 1
|
30X-11191-01-00 |
— | ||
|
14
|
14
30X-11192-01-00
Cover, Cylinder Head 2
|
30X-11192-01-00 |
— | ||
|
15
|
15
90109-06604-00 Bolt (4V8) |
90109-06604-00 |
from US $12.37 |
||
|
16
|
16
901-09066-05-00 P97 Bolt (4V8) |
901-09066-05-00 |
from US $13.88 |
||
|
17
|
17
2GH-1111G-00-00 Rubber, Mount 1 |
2GH-1111G-00-00 |
from US $5.38 |
||
|
18
|
18
902-09112-62-00 Washer |
902-09112-62-00 |
from US $1.98 |
||
|
19
|
19
90338-11125-00 Plug |
90338-11125-00 |
from US $1.84 |
||
|
20
|
20
30X-11193-00-00
Gasket, Head Cover 1
|
30X-11193-00-00 |
— | ||
| replacement | |||||
|
20
|
20
30X-11193-01-00 Gasket, Head Cover 1 |
30X-11193-01-00 |
from US $53.12 |
||
|
21
|
21
90109-06778-00 Bolt |
90109-06778-00 |
from US $1.70 |
||
| replacement | |||||
|
21
|
21
90109-06418-00 Bolt |
90109-06418-00 |
from US $1.70 |
||
|
22
|
22
904-30060-14-00 Gasket (Copper washer) |
904-30060-14-00 |
from US $1.28 |
||
|
23
|
23
90338-22168-00 Plug |
90338-22168-00 |
from US $6.38 |
||
| replacement | |||||
|
23
|
23
90338-22207-00 Plug |
90338-22207-00 |
from US $6.38 |
||
