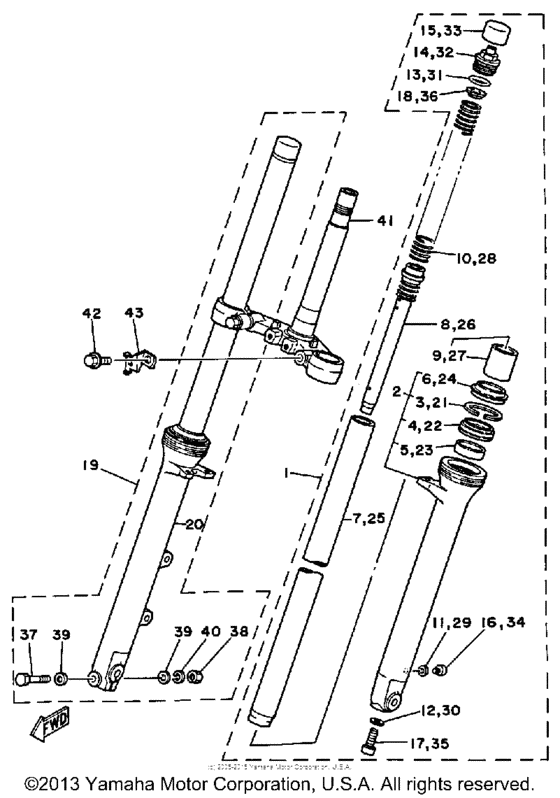

Front fork Diagram Yamaha SRX250
- Year
- 1987
- Sales region
- USA
- Engine Capacity
- 250
- Model
- SRX250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
52E-23102-01-00
Front Fork Assembly L
|
52E-23102-01-00 |
— | ||
|
2
|
2
52E-23126-01-00
Tube, Outer 1
|
52E-23126-01-00 |
— | ||
|
3
|
3
22W-23153-L0-00 Ring, Snap |
22W-23153-L0-00 |
from US $4.25 |
||
|
4
|
4
51Y-23145-00-00 Oil Seal |
51Y-23145-00-00 |
from US $10.91 |
||
| replacement | |||||
|
4
|
4
2UJ-23145-00-00 Oil Seal |
2UJ-23145-00-00 |
from US $10.91 |
||
|
5
|
5
51Y-23125-00-00 Metal, Slide 1 |
51Y-23125-00-00 |
from US $11.33 |
||
|
6
|
6
51Y-23144-00-00 Seal, Dust |
51Y-23144-00-00 |
from US $11.05 |
||
| replacement | |||||
|
6
|
6
2UJ-23144-00-00 Seal, Dust |
2UJ-23144-00-00 |
from US $11.05 |
||
|
7
|
7
51Y-23110-00-93 Inner Tube 1Comp. 11COMP. 1 CHROME-PLATED |
51Y-23110-00-93 |
from US $156.22 |
||
|
8
|
8
51Y-23170-00-00 Cylinder, Frtfrk |
51Y-23170-00-00 |
US $37.93 |
||
| replacement | |||||
|
8
|
8
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
9
|
9
1W1-23173-L0-00 Taper Spindle |
1W1-23173-L0-00 |
from US $24.65 |
||
|
10
|
10
51Y-23141-00-00
Spring, Front Fork
|
51Y-23141-00-00 |
— | ||
| replacement | |||||
|
10
|
10
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
11
|
11
122-23129-00-00 Gasket, Drain Plug |
122-23129-00-00 |
from US $3.26 |
||
|
12
|
12
509-23158-L0-00 Gasket |
509-23158-L0-00 |
from US $3.54 |
||
|
13
|
13
3J2-23114-00-00 O-Ring |
3J2-23114-00-00 |
from US $3.54 |
||
|
14
|
14
51Y-23111-00-00
Bolt, Cap
|
51Y-23111-00-00 |
— | ||
|
15
|
15
51Y-23168-00-00
Cap, Front Fork
|
51Y-23168-00-00 |
— | ||
|
16
|
16
4H7-23119-00-00
Screw, Pan Head
|
4H7-23119-00-00 |
— | ||
| replacements | |||||
|
16
|
16
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
16
|
16
985-11040-06-00
Screw, Pan Head (98502-04006)
|
985-11040-06-00 |
— | ||
|
17
|
17
278-23181-50-00
Bolt, Hexagon Socket Head
|
278-23181-50-00 |
— | ||
| replacement | |||||
|
17
|
17
3D8-23181-00-00 Bolt, Hexagon Socket Head |
3D8-23181-00-00 |
from US $4.82 |
||
|
18
|
18
583-23142-00-00
Seat, Spring Upper
|
583-23142-00-00 |
— | ||
|
19
|
19
52E-23103-01-00 Front Fork Assembly R |
52E-23103-01-00 |
US $252.47 |
||
|
20
|
20
52E-23136-01-00
Tube, Outer 2
|
52E-23136-01-00 |
— | ||
|
21
|
21
22W-23153-L0-00 Ring, Snap |
22W-23153-L0-00 |
from US $4.25 |
||
|
22
|
22
51Y-23145-00-00 Oil Seal |
51Y-23145-00-00 |
from US $10.91 |
||
| replacement | |||||
|
22
|
22
2UJ-23145-00-00 Oil Seal |
2UJ-23145-00-00 |
from US $10.91 |
||
|
23
|
23
51Y-23125-00-00 Metal, Slide 1 |
51Y-23125-00-00 |
from US $11.33 |
||
|
24
|
24
51Y-23144-00-00 Seal, Dust |
51Y-23144-00-00 |
from US $11.05 |
||
| replacement | |||||
|
24
|
24
2UJ-23144-00-00 Seal, Dust |
2UJ-23144-00-00 |
from US $11.05 |
||
|
25
|
25
51Y-23110-00-93 Inner Tube 1Comp. 11COMP. 1 CHROME-PLATED |
51Y-23110-00-93 |
from US $156.22 |
||
|
26
|
26
51Y-23170-00-00 Cylinder, Frtfrk |
51Y-23170-00-00 |
US $37.93 |
||
| replacement | |||||
|
26
|
26
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
27
|
27
1W1-23173-L0-00 Taper Spindle |
1W1-23173-L0-00 |
from US $24.65 |
||
|
28
|
28
51Y-23141-00-00
Spring, Front Fork
|
51Y-23141-00-00 |
— | ||
| replacement | |||||
|
28
|
28
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
29
|
29
122-23129-00-00 Gasket, Drain Plug |
122-23129-00-00 |
from US $3.26 |
||
|
30
|
30
509-23158-L0-00 Gasket |
509-23158-L0-00 |
from US $3.54 |
||
|
31
|
31
3J2-23114-00-00 O-Ring |
3J2-23114-00-00 |
from US $3.54 |
||
|
32
|
32
51Y-23111-00-00
Bolt, Cap
|
51Y-23111-00-00 |
— | ||
|
33
|
33
51Y-23168-00-00
Cap, Front Fork
|
51Y-23168-00-00 |
— | ||
|
34
|
34
4H7-23119-00-00
Screw, Pan Head
|
4H7-23119-00-00 |
— | ||
| replacements | |||||
|
34
|
34
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
34
|
34
985-11040-06-00
Screw, Pan Head (98502-04006)
|
985-11040-06-00 |
— | ||
|
35
|
35
278-23181-50-00
Bolt, Hexagon Socket Head
|
278-23181-50-00 |
— | ||
| replacement | |||||
|
35
|
35
3D8-23181-00-00 Bolt, Hexagon Socket Head |
3D8-23181-00-00 |
from US $4.82 |
||
|
36
|
36
583-23142-00-00
Seat, Spring Upper
|
583-23142-00-00 |
— | ||
|
37
|
37
1UJ-23128-00-00
Bolt, Axle Holder
|
1UJ-23128-00-00 |
— | ||
|
38
|
38
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.42 |
||
| replacement | |||||
|
38
|
38
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.59 |
||
|
39
|
39
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
39
|
39
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.34 |
||
|
40
|
40
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
41
|
41
51Y-23340-10-00
Under Bracketcomp
|
51Y-23340-10-00 |
— | ||
|
42
|
42
51Y-23128-00-00 Bolt,washer Based |
51Y-23128-00-00 |
from US $4.11 |
||
| replacement | |||||
|
42
|
42
958-24100-30-00 Bolt, Flange(3Xc) |
958-24100-30-00 |
from US $4.11 |
||
|
43
|
43
51Y-83378-00-00 Stay, Horn |
51Y-83378-00-00 |
US $6.16 |
||
