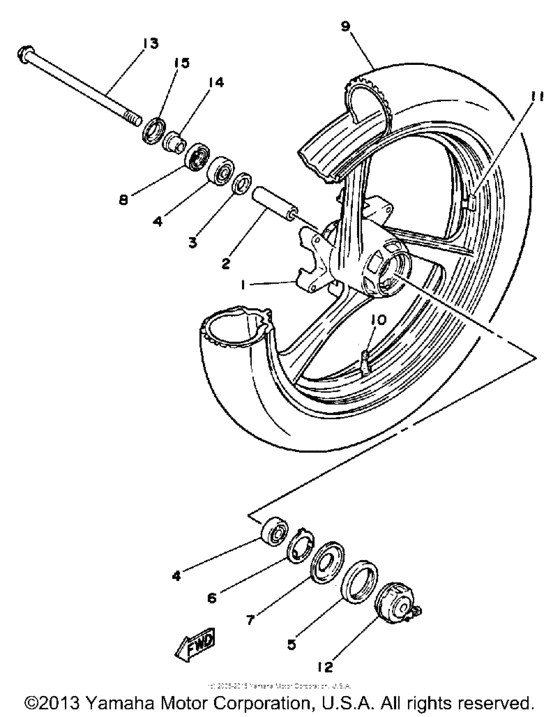

Front wheel Diagram Yamaha SRX250
- Year
- 1987
- Sales region
- USA
- Engine Capacity
- 250
- Model
- SRX250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2NV-25168-00-FH
Wheel, Cast Front
|
2NV-25168-00-FH |
— | ||
|
2
|
2
90387-123A9-00 Collar |
90387-123A9-00 |
from US $9.35 |
||
|
3
|
3
109-25315-00-00 Flange, Spacer |
109-25315-00-00 |
from US $2.55 |
||
|
4
|
4
93306-30109-00 Bearing |
93306-30109-00 |
from US $12.75 |
||
| replacement | |||||
|
4
|
4
933-06301-02-00 Bearing |
933-06301-02-00 |
from US $12.75 |
||
|
5
|
5
93105-45017-00 Oil Seal |
93105-45017-00 |
from US $11.05 |
||
|
6
|
6
341-25149-00-00 Clutch, Meter |
341-25149-00-00 |
from US $3.54 |
||
|
7
|
7
341-25846-00-00 Retainer, Clutch |
341-25846-00-00 |
from US $2.98 |
||
|
8
|
8
93106-20033-00 Oil Seal(3Tu) |
93106-20033-00 |
from US $8.50 |
||
|
9
|
9
941-09163-R3-00
90-90/16 48S Bs (90/90-16 48Sk3
48S BS 90/90-16 48SK3 U.R. DUNLOP |
941-09163-R3-00 |
— | ||
|
10
|
10
939-00000-30-00 Valve, Rim (Tr412) |
939-00000-30-00 |
from US $7.65 |
||
|
11
|
11
2M0-25399-00-00 Balancer, Wheel (30G)30G UN |
2M0-25399-00-00 |
from US $7.65 |
||
| replacement | |||||
|
11
|
11
5MT-25398-00-00 Balancer, Wheel (10G)30G UN |
5MT-25398-00-00 |
from US $7.65 |
||
|
11
|
11
1A1-25398-01-00 Balancer, Wheel (10G)20G UN |
1A1-25398-01-00 |
from US $7.65 |
||
| replacement | |||||
|
11
|
11
5MT-25398-00-00 Balancer, Wheel (10G)20G UN |
5MT-25398-00-00 |
from US $7.65 |
||
|
11
|
11
1A1-25399-00-00 Balancer, Wheel (10G)10G UN |
1A1-25399-00-00 |
from US $7.65 |
||
| replacement | |||||
|
11
|
11
5MT-25398-00-00 Balancer, Wheel (10G)10G UN |
5MT-25398-00-00 |
from US $7.65 |
||
|
12
|
12
51Y-25190-00-00 Gear Unit Assy |
51Y-25190-00-00 |
US $79.61 |
||
| replacements | |||||
|
12
|
12
2L4-25190-20-00 Gear Unit Assy |
2L4-25190-20-00 |
US $79.61 |
||
|
12
|
12
2L4-25190-10-00
Gear Unit Assy
|
2L4-25190-10-00 |
— | ||
|
13
|
13
51Y-25181-00-00 Axle, Wheel |
51Y-25181-00-00 |
from US $18.67 |
||
|
14
|
14
90387-127E0-00 Collar (40E) |
90387-127E0-00 |
from US $10.24 |
||
|
15
|
15
481-25118-01-00 Cover, Hub Dust |
481-25118-01-00 |
from US $6.23 |
||
