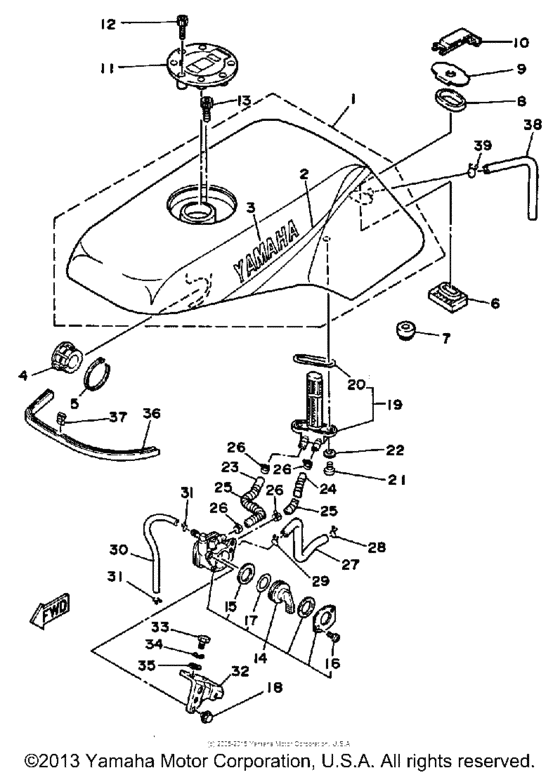

Fuel tank Diagram Yamaha SRX250
- Year
- 1987
- Sales region
- USA
- Engine Capacity
- 250
- Model
- SRX250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2NV-24110-00-01
Fuel Tank Comp
|
2NV-24110-00-01 |
— | ||
|
2
|
2
2NV-24240-00-00
Graphic Set
|
2NV-24240-00-00 |
— | ||
|
3
|
3
36Y-24161-00-00
Emblem, Yamaha
|
36Y-24161-00-00 |
— | ||
| replacements | |||||
|
3
|
3
99243-00140-00
Emblem, Yamaha
|
99243-00140-00 |
— | ||
|
3
|
3
992-23001-40-00
Emblem, yamaha
|
992-23001-40-00 |
— | ||
|
4
|
4
46X-24181-00-00 Damper, Locating 1 |
46X-24181-00-00 |
from US $10.87 |
||
|
5
|
5
5Y9-12491-00-00 Clamp 1 |
5Y9-12491-00-00 |
from US $1.56 |
||
|
6
|
6
36Y-24182-00-00 Damper, Locating 2 |
36Y-24182-00-00 |
US $9.04 |
||
|
7
|
7
341-21746-00-00
Damper
|
341-21746-00-00 |
— | ||
|
8
|
8
11H-24183-00-00 Damper, Locating 3 |
11H-24183-00-00 |
from US $7.51 |
||
| replacement | |||||
|
8
|
8
3Y6-24183-00-00 Damper, Locating 3 |
3Y6-24183-00-00 |
from US $7.51 |
||
|
9
|
9
4K0-24186-00-00
Washer, Special
51Y-2411M-00-00 |
4K0-24186-00-00 |
— | ||
|
11
|
11
1JK-24602-13-00
Cap Assy
|
1JK-24602-13-00 |
— | ||
| replacement | |||||
|
11
|
11
4FM-24602-20-00 Cap Assy |
4FM-24602-20-00 |
from US $167.17 |
||
|
12
|
12
90110-05112-00 Bolt, Hexagon Socket Head |
90110-05112-00 |
from US $1.70 |
||
|
13
|
13
91311-05010-00 Bolt, Hexagon Socket Head |
91311-05010-00 |
US $1.84 |
||
| replacement | |||||
|
13
|
13
91314-05010-00 Bolt, Hexagon Socket Head |
91314-05010-00 |
from US $1.84 |
||
|
14
|
14
51Y-24500-00-00 Fuel Cock Assy 1 |
51Y-24500-00-00 |
from US $152.33 |
||
| replacement | |||||
|
14
|
14
51Y-24500-01-00 Fuel Cock Assy 1 |
51Y-24500-01-00 |
from US $159.20 |
||
|
15
|
15
47X-24523-00-00
Valve
|
47X-24523-00-00 |
— | ||
|
16
|
16
98580-03008-00 Screw, Pan Head |
98580-03008-00 |
from US $1.21 |
||
|
17
|
17
2G2-24534-00-00 Seal, Cock |
2G2-24534-00-00 |
from US $10.64 |
||
|
18
|
18
95023-06010-00 Bolt, Flange (Small Head) |
95023-06010-00 |
US $1.56 |
||
| replacement | |||||
|
18
|
18
95024-06010-00 Bolt, Flange (Small Head) |
95024-06010-00 |
from US $1.56 |
||
|
19
|
19
47X-24560-00-00 Filter Assembly |
47X-24560-00-00 |
US $77.65 |
||
|
20
|
20
2G2-24512-00-00 Gasket |
2G2-24512-00-00 |
from US $12.17 |
||
|
21
|
21
90149-06011-00 Screw |
90149-06011-00 |
from US $1.35 |
||
|
22
|
22
902-02051-87-00 Washer, Plate |
902-02051-87-00 |
from US $1.28 |
||
|
23
|
23
51Y-24311-01-00
Pipe, Fuel 1
|
51Y-24311-01-00 |
— | ||
|
24
|
24
51Y-24313-01-00
Pipe 3
|
51Y-24313-01-00 |
— | ||
|
25
|
25
51Y-24567-00-00
Spring
|
51Y-24567-00-00 |
— | ||
| replacement | |||||
|
25
|
25
905-01104-J3-00
Spring, Compression(3Wp)
|
905-01104-J3-00 |
— | ||
|
26
|
26
90467-14057-00 Clip |
90467-14057-00 |
from US $1.28 |
||
|
27
|
27
51Y-24312-00-00 Pipe 2 |
51Y-24312-00-00 |
from US $12.47 |
||
|
28
|
28
904-67090-06-00
Clip
|
904-67090-06-00 |
— | ||
| replacement | |||||
|
28
|
28
904-67090-A2-00 Clip |
904-67090-A2-00 |
from US $1.56 |
||
|
29
|
29
904-67100-08-00
Clip
|
904-67100-08-00 |
— | ||
| replacements | |||||
|
29
|
29
90467-100A1-00 Clip |
90467-100A1-00 |
from US $1.28 |
||
|
29
|
29
90467-11106-00 Clip |
90467-11106-00 |
from US $1.28 |
||
|
30
|
30
90445-09531-00
Hose
|
90445-09531-00 |
— | ||
| replacement | |||||
|
30
|
30
90445-090G9-00 Hose (L685) |
90445-090G9-00 |
from US $16.86 |
||
|
31
|
31
90467-08003-00 Clip 101235600 |
90467-08003-00 |
from US $1.70 |
||
|
32
|
32
51Y-2452E-01-00 Stay |
51Y-2452E-01-00 |
US $6.61 |
||
|
33
|
33
970-16080-16-00
Bolt
|
970-16080-16-00 |
— | ||
| replacement | |||||
|
33
|
33
97017-08016-00 Bolt |
97017-08016-00 |
from US $1.42 |
||
|
34
|
34
929-06081-00-00
Washer, Spring
|
929-06081-00-00 |
— | ||
| replacement | |||||
|
34
|
34
92907-08100-00 Washer, Spring |
92907-08100-00 |
from US $0.85 |
||
|
35
|
35
929-06086-00-00
Washer
|
929-06086-00-00 |
— | ||
| replacement | |||||
|
35
|
35
929-07086-00-00 Washer, Plate |
929-07086-00-00 |
from US $1.21 |
||
|
36
|
36
51Y-24188-00-00
Mold, Fuel Tank
|
51Y-24188-00-00 |
— | ||
|
37
|
37
90468-03063-00
Clip
|
90468-03063-00 |
— | ||
|
38
|
38
1JK-24315-00-00
Pipe 5
|
1JK-24315-00-00 |
— | ||
|
39
|
39
904-67090-06-00
Clip
|
904-67090-06-00 |
— | ||
| replacement | |||||
|
39
|
39
904-67090-A2-00 Clip |
904-67090-A2-00 |
from US $1.56 |
||
