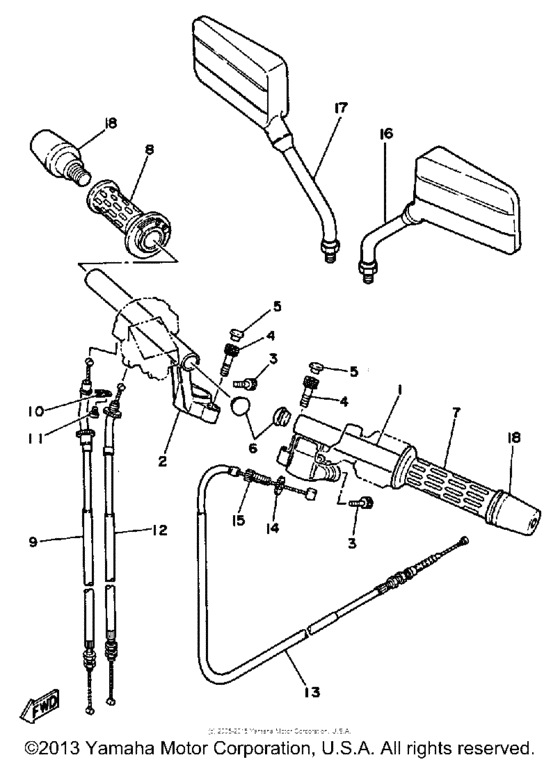

Handlebar cable Diagram Yamaha SRX250
- Year
- 1987
- Sales region
- USA
- Engine Capacity
- 250
- Model
- SRX250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51Y-26121-03-00
Handlebar Lh
LH |
51Y-26121-03-00 |
— | ||
|
2
|
2
51Y-26122-03-00
Handlebar Rh
RH |
51Y-26122-03-00 |
— | ||
|
3
|
3
913-11080-25-00 Bolt, Hexagon Socket Head |
913-11080-25-00 |
from US $1.42 |
||
| replacement | |||||
|
3
|
3
91314-08025-00 Bolt, Hexagon Socket Head |
91314-08025-00 |
from US $1.42 |
||
|
4
|
4
91311-06020-00 Bolt, Hexagon Socket Head |
91311-06020-00 |
from US $1.07 |
||
| replacement | |||||
|
4
|
4
913-14060-20-00 Bolt |
913-14060-20-00 |
from US $1.07 |
||
|
5
|
5
2H9-23469-00-00 Plug |
2H9-23469-00-00 |
from US $1.28 |
||
| replacement | |||||
|
5
|
5
903-38050-10-00 Plug |
903-38050-10-00 |
from US $1.28 |
||
|
6
|
6
90338-19166-00 Plug, Spec''l Shape |
90338-19166-00 |
from US $4.68 |
||
|
7
|
7
51Y-26241-00-00 Grip LhLH |
51Y-26241-00-00 |
from US $18.28 |
||
|
8
|
8
51Y-26240-00-00 Grip Assembly |
51Y-26240-00-00 |
from US $39.93 |
||
|
9
|
9
51Y-26311-01-00
Cable, Throttle 1
|
51Y-26311-01-00 |
— | ||
|
10
|
10
5H0-26393-00-00 Holder |
5H0-26393-00-00 |
from US $3.12 |
||
|
11
|
11
985-06050-08-00
Screw, Pan Head
|
985-06050-08-00 |
— | ||
| replacement | |||||
|
11
|
11
985-07050-08-00 Screw, Pan Head |
985-07050-08-00 |
from US $1.07 |
||
|
12
|
12
51Y-26312-01-00
Cable, Throttle 2
|
51Y-26312-01-00 |
— | ||
|
13
|
13
51Y-26335-01-00 Cbl; Clth |
51Y-26335-01-00 |
from US $42.64 |
||
| replacement | |||||
|
13
|
13
51Y-26335-02-00 Cable, clutch |
51Y-26335-02-00 |
from US $28.31 |
||
|
14
|
14
90179-08316-00 Nut |
90179-08316-00 |
from US $4.55 |
||
| replacements | |||||
|
14
|
14
901-79081-48-00
Nut
|
901-79081-48-00 |
— | ||
|
14
|
14
901-79080-30-00 Nut |
901-79080-30-00 |
from US $6.38 |
||
|
15
|
15
90123-08083-00 Bolt |
90123-08083-00 |
from US $3.40 |
||
| replacements | |||||
|
15
|
15
901-23080-46-00
Bolt
|
901-23080-46-00 |
— | ||
|
15
|
15
901-23080-02-00 Bolt |
901-23080-02-00 |
from US $3.40 |
||
|
16
|
16
51Y-26290-10-00
Mirror Asy
|
51Y-26290-10-00 |
— | ||
| replacement | |||||
|
16
|
16
3XC-26280-00-00
Rear View Mirror Assy (Left)
|
3XC-26280-00-00 |
— | ||
|
17
|
17
51Y-26290-00-00
Mirror Assy Rh
RH |
51Y-26290-00-00 |
— | ||
| replacement | |||||
|
17
|
17
999-99999-99-00
Not Available
RH |
999-99999-99-00 |
— | ||
|
18
|
18
51Y-26246-00-00
End, Grip
|
51Y-26246-00-00 |
— | ||
