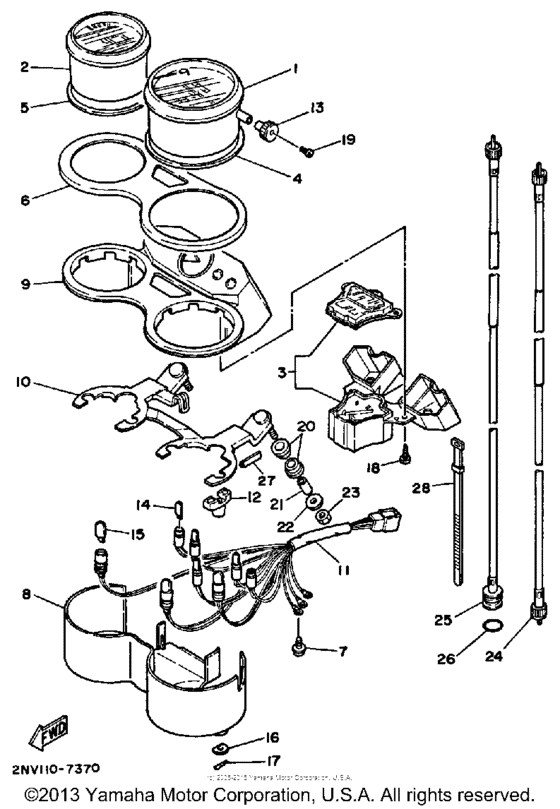

Meter Diagram Yamaha SRX250
- Year
- 1987
- Sales region
- USA
- Engine Capacity
- 250
- Model
- SRX250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1GM-83570-G0-00
Speedometer Assembly
|
1GM-83570-G0-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
2NV-83540-00-00
Tachometer Assembly
|
2NV-83540-00-00 |
— | ||
|
3
|
3
56K-85750-00-00 Fuel Meter Assembly |
56K-85750-00-00 |
US $15.03 |
||
|
4
|
4
51Y-83513-00-00 Damper |
51Y-83513-00-00 |
from US $11.75 |
||
|
5
|
5
51Y-83541-00-00 Damper |
51Y-83541-00-00 |
from US $11.75 |
||
|
6
|
6
51Y-83611-00-00
Panel,meter
|
51Y-83611-00-00 |
— | ||
| replacement | |||||
|
6
|
6
3XL-83611-00-00
PLUG,OIL LEVEL
|
3XL-83611-00-00 |
— | ||
|
7
|
7
90159-03102-00 Screw, With Washer |
90159-03102-00 |
from US $1.84 |
||
|
8
|
8
51Y-83579-00-00 Cover, Meter 2 |
51Y-83579-00-00 |
from US $33.35 |
||
|
9
|
9
51Y-83568-00-00
Pilot Box, Upper
|
51Y-83568-00-00 |
— | ||
|
10
|
10
2NV-83519-00-00
Bracket, Meter
|
2NV-83519-00-00 |
— | ||
|
10
|
10
51Y-83519-00-00
Bracket, Meter
2NV-0001015 2NV-001720 |
51Y-83519-00-00 |
— | ||
|
11
|
11
2NV-83509-00-00
Socket Cord Assembly
|
2NV-83509-00-00 |
— | ||
|
12
|
12
51Y-83523-00-00 Damper |
51Y-83523-00-00 |
from US $6.52 |
||
|
13
|
13
1AE-83578-00-00 Knob, Trip Meter |
1AE-83578-00-00 |
from US $12.89 |
||
|
14
|
14
42X-83517-00-00 Bulb (14V-3.4W)12V-3W |
42X-83517-00-00 |
from US $2.83 |
||
| replacement | |||||
|
14
|
14
3FV-83517-00-00 Bulb (12V-1.7W)12V-3W |
3FV-83517-00-00 |
from US $3.32 |
||
|
15
|
15
4G1-84744-00-00 Bulb (12V-3.4W T10)12V-3.4W T10 |
4G1-84744-00-00 |
US $4.04 |
||
| replacement | |||||
|
15
|
15
4G1-84744-00-XX
Bulb (12V-3.4W T10)
12V-3.4W T10 |
4G1-84744-00-XX |
— | ||
|
16
|
16
51Y-83524-00-00 Washer, Special |
51Y-83524-00-00 |
from US $2.02 |
||
|
17
|
17
90468-10050-00 Clip (156-83525-00) |
90468-10050-00 |
from US $1.84 |
||
|
18
|
18
90164-04005-00
Screw, Tapping
|
90164-04005-00 |
— | ||
|
19
|
19
90157-02031-00 Screw, Pan Head |
90157-02031-00 |
from US $1.65 |
||
|
20
|
20
1JK-83541-00-00 Damper |
1JK-83541-00-00 |
from US $7.23 |
||
|
21
|
21
90387-06249-00 Collar |
90387-06249-00 |
from US $1.28 |
||
|
22
|
22
902-01060-59-00
Washer, Plate
|
902-01060-59-00 |
— | ||
| replacements | |||||
|
22
|
22
90201-06057-00 Washer, Plate |
90201-06057-00 |
from US $1.28 |
||
|
22
|
22
90201-06020-00 Washer, Plate |
90201-06020-00 |
from US $1.56 |
||
|
23
|
23
95316-06600-00 Nut (31A) |
95316-06600-00 |
from US $1.21 |
||
| replacement | |||||
|
23
|
23
95317-06600-00 Nut(6Ta) |
95317-06600-00 |
from US $1.21 |
||
|
24
|
24
11L-83550-00-00 Sdmtr Cable |
11L-83550-00-00 |
from US $30.46 |
||
| replacement | |||||
|
24
|
24
3VP-83550-02-00 Speedometer Cable Assy |
3VP-83550-02-00 |
from US $30.46 |
||
|
25
|
25
51Y-83560-00-00 Tachometer Cable |
51Y-83560-00-00 |
from US $49.32 |
||
| replacement | |||||
|
25
|
25
2A6-83560-00-00 Tachometer Cable |
2A6-83560-00-00 |
from US $49.32 |
||
|
26
|
26
932-10141-04-00
O-Ring
|
932-10141-04-00 |
— | ||
| replacement | |||||
|
26
|
26
93210-14579-00 O-Ring (26H) |
93210-14579-00 |
from US $1.28 |
||
|
27
|
27
50M-28346-50-00
Mole 2
|
50M-28346-50-00 |
— | ||
|
28
|
28
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
