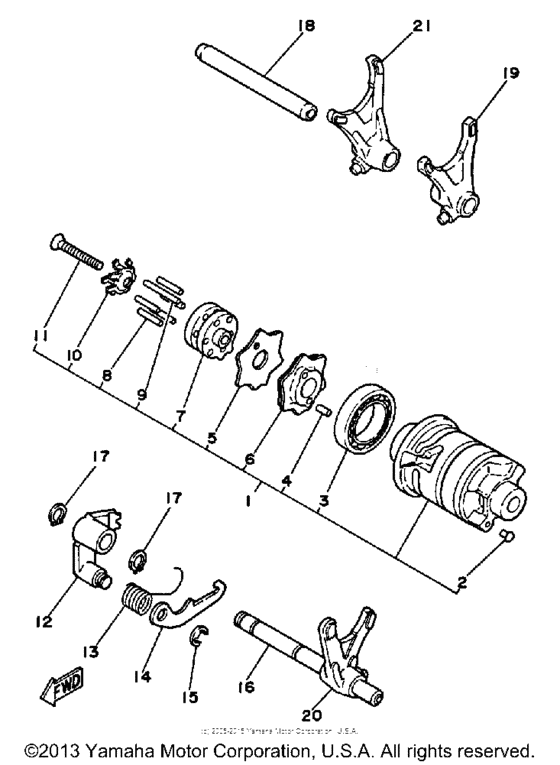

Shift Cam & Fork Diagram Yamaha SRX250
- Year
- 1987
- Sales region
- USA
- Engine Capacity
- 250
- Model
- SRX250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
30X-18540-00-00 Shift Cam Assembly |
30X-18540-00-00 |
US $250.45 |
||
|
2
|
2
136-18542-00-00 Point, Neutral |
136-18542-00-00 |
from US $1.98 |
||
|
3
|
3
93306-90501-00 Bearing |
93306-90501-00 |
from US $20.40 |
||
|
4
|
4
93604-08071-00 Pin, Dowel |
93604-08071-00 |
from US $1.45 |
||
|
5
|
5
30X-18161-00-00
Guide, Plate Stopper
|
30X-18161-00-00 |
— | ||
|
6
|
6
30X-18141-00-00
Plate, Stopper
|
30X-18141-00-00 |
— | ||
| replacement | |||||
|
6
|
6
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
7
|
7
30X-18185-00-00
Segment
|
30X-18185-00-00 |
— | ||
|
8
|
8
93604-18100-00 Pin, Dowel |
93604-18100-00 |
from US $1.84 |
||
|
9
|
9
93604-29151-00 Pin, Dowel |
93604-29151-00 |
from US $1.84 |
||
|
10
|
10
30X-18561-02-00 Plate, Side 1 |
30X-18561-02-00 |
US $9.09 |
||
|
11
|
11
90151-06013-00 Screw, Countersunk |
90151-06013-00 |
from US $1.70 |
||
|
12
|
12
3Y1-18122-00-00 Lever, Shift 2 |
3Y1-18122-00-00 |
from US $27.18 |
||
|
13
|
13
90508-12430-00 Spring, Torsion |
90508-12430-00 |
from US $1.84 |
||
|
14
|
14
2K7-18151-00-00 Lever, Shift 3 |
2K7-18151-00-00 |
from US $10.63 |
||
|
15
|
15
99080-07600-00 Clip |
99080-07600-00 |
from US $1.66 |
||
|
16
|
16
3Y1-18531-00-00 Bar, Shift Fork Guide 1 |
3Y1-18531-00-00 |
from US $9.07 |
||
| replacement | |||||
|
16
|
16
4DN-18531-00-00 Bar, Shift Fork Guide 1 |
4DN-18531-00-00 |
from US $9.07 |
||
|
17
|
17
99009-10400-00 Circlip |
99009-10400-00 |
from US $1.34 |
||
|
18
|
18
30X-18535-00-00 Bar, Shift Fork Guide 2 |
30X-18535-00-00 |
from US $17.57 |
||
| replacement | |||||
|
18
|
18
4DN-18535-00-00 Bar,10Mm Od,935Mm Long,solid |
4DN-18535-00-00 |
from US $14.42 |
||
|
19
|
19
30X-18511-00-00
Fork, Shift 1
|
30X-18511-00-00 |
— | ||
|
20
|
20
30X-18512-00-00
Fork, Shift 2
|
30X-18512-00-00 |
— | ||
|
21
|
21
30X-18513-00-00
Fork, Shift 3
|
30X-18513-00-00 |
— | ||
