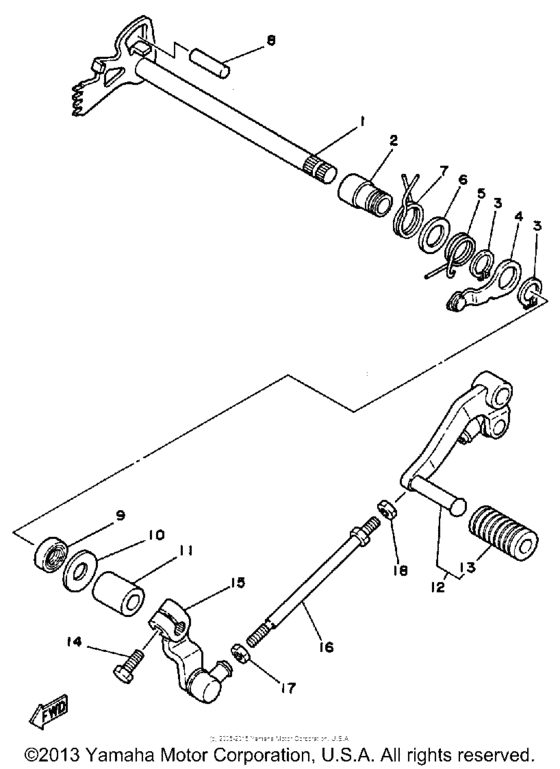

Shift shaft Diagram Yamaha SRX250
- Year
- 1987
- Sales region
- USA
- Engine Capacity
- 250
- Model
- SRX250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
30X-18101-01-00 Shift Shaft Assembly |
30X-18101-01-00 |
US $39.71 |
||
|
2
|
2
90387-12787-00 Collar |
90387-12787-00 |
from US $6.94 |
||
|
3
|
3
99009-17400-00 Circlip |
99009-17400-00 |
from US $1.56 |
||
| replacement | |||||
|
3
|
3
93410-17X00-00 Circlip |
93410-17X00-00 |
US $1.56 |
||
|
4
|
4
3Y1-18140-00-00 Stopper Lever Assy |
3Y1-18140-00-00 |
from US $13.74 |
||
|
5
|
5
90508-26434-00 Spring, Torsion |
90508-26434-00 |
from US $2.16 |
||
|
6
|
6
90201-17255-00 Washer, Plate |
90201-17255-00 |
from US $1.70 |
||
| replacement | |||||
|
6
|
6
90201-177G4-00 Washer, Plate |
90201-177G4-00 |
from US $1.70 |
||
|
7
|
7
90508-32374-00 Spring, Torsion |
90508-32374-00 |
from US $6.09 |
||
|
8
|
8
93608-30152-00
Pin, Dowel
|
93608-30152-00 |
— | ||
|
9
|
9
931-02123-21-00 Oil Seal |
931-02123-21-00 |
from US $4.53 |
||
|
10
|
10
90201-12588-00 Washer, Plate |
90201-12588-00 |
from US $1.70 |
||
|
11
|
11
90560-12191-00 Spacer |
90560-12191-00 |
from US $3.54 |
||
|
12
|
12
3WP-18110-00-00
Shift Pedal Assembly
|
3WP-18110-00-00 |
— | ||
|
13
|
13
132-18113-01-00 Cover, Shift Pedal |
132-18113-01-00 |
from US $1.66 |
||
|
14
|
14
970-11060-20-00
P57 Bolt (1Lv)
|
970-11060-20-00 |
— | ||
| replacement | |||||
|
14
|
14
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.07 |
||
|
15
|
15
51Y-18112-00-00 Arm, Shift |
51Y-18112-00-00 |
US $86.49 |
||
| replacement | |||||
|
15
|
15
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
16
|
16
2H9-18115-00-00 Rod, Shift |
2H9-18115-00-00 |
from US $15.30 |
||
|
17
|
17
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.34 |
||
| replacement | |||||
|
17
|
17
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.42 |
||
|
18
|
18
901-70062-28-00 Nut (Counter Clockwise) |
901-70062-28-00 |
from US $1.70 |
||
