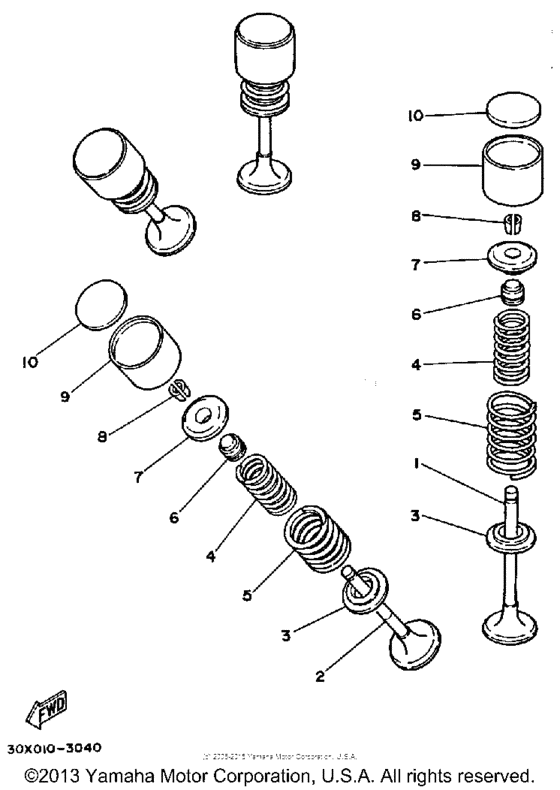

Valve Diagram Yamaha SRX250
- Year
- 1987
- Sales region
- USA
- Engine Capacity
- 250
- Model
- SRX250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51Y-12111-01-00 Valve, Intake |
51Y-12111-01-00 |
from US $113.84 |
||
|
2
|
2
30X-12121-00-00 Valve, Exhaust |
30X-12121-00-00 |
from US $72.53 |
||
|
3
|
3
1LN-12116-00-00 Seat, Valve Spring |
1LN-12116-00-00 |
US $8.62 |
||
|
4
|
4
51Y-12113-00-00 Spring, Valve Inner |
51Y-12113-00-00 |
from US $5.24 |
||
|
5
|
5
51Y-12114-00-00 Spring, Valve Outer |
51Y-12114-00-00 |
from US $5.81 |
||
|
6
|
6
51Y-12119-00-00 Seal, Valve Stem |
51Y-12119-00-00 |
from US $5.64 |
||
|
7
|
7
30X-12117-00-00 Retainer, Valve Spring |
30X-12117-00-00 |
from US $7.93 |
||
|
8
|
8
30X-12118-00-00 Cotter, Valve |
30X-12118-00-00 |
from US $2.32 |
||
|
9
|
9
26H-12153-00-Y0 Lifter, Valve |
26H-12153-00-Y0 |
from US $22.53 |
||
| replacement | |||||
|
9
|
9
26H-12153-01-00 Lifter, Valve |
26H-12153-01-00 |
from US $22.53 |
||
|
10
|
10
26H-12168-R0-00 Pad, Adjusting (2.50)2.50 U.R. |
26H-12168-R0-00 |
from US $13.03 |
||
|
10
|
10
26H-12168-U0-00 Pad, Adjusting (2.55)2.55 U.R. |
26H-12168-U0-00 |
from US $13.03 |
||
|
10
|
10
26H-12168-W0-00 Pad, Adjusting (2.60)2.60 U.R. |
26H-12168-W0-00 |
from US $13.03 |
||
|
10
|
10
26H-12168-Y0-00 Pad, Adjusting (2.65)2.65 U.R. |
26H-12168-Y0-00 |
from US $13.03 |
||
|
10
|
10
26H-12169-10-00 Pad, Adjusting (2.70)2.70 U.R. |
26H-12169-10-00 |
from US $13.60 |
||
|
10
|
10
26H-12169-30-00 Pad, Adjusting (2.75)2.75 U.R. |
26H-12169-30-00 |
from US $13.60 |
||
|
10
|
10
26H-12169-50-00 Pad, Adjusting (2.80)2.80 U.R. |
26H-12169-50-00 |
from US $13.60 |
||
|
10
|
10
26H-12169-70-00 Pad, Adjusting (2.85)2.85 U.R. |
26H-12169-70-00 |
from US $11.92 |
||
|
10
|
10
26H-12169-90-00 Pad, Adjusting (2.90)2.90 U.R. |
26H-12169-90-00 |
from US $11.92 |
||
|
10
|
10
26H-12169-E0-00 Pad, Adjusting (2.95)2.95 U.R. |
26H-12169-E0-00 |
from US $11.92 |
||
|
10
|
10
26H-12169-G0-00 Pad, Adjusting (3.00)3.00 U.R. |
26H-12169-G0-00 |
from US $11.92 |
||
|
10
|
10
26H-12169-J0-00 Pad, Adjusting (3.05)3.05 U.R. |
26H-12169-J0-00 |
from US $11.92 |
||
|
10
|
10
26H-12169-L0-00 Pad, Adjusting (3.10)3.10 U.R. |
26H-12169-L0-00 |
US $16.43 |
||
|
10
|
10
26H-12169-N0-00 Pad, Adjusting (3.15)3.15 U.R. |
26H-12169-N0-00 |
from US $11.92 |
||
|
10
|
10
26H-12169-T0-00 Pad, Adjusting (3.20)3.20 U.R. |
26H-12169-T0-00 |
from US $11.92 |
||
|
10
|
10
26H-12168-M0-00 Pad, Adjusting (2.45)2.45 U.R. |
26H-12168-M0-00 |
from US $13.03 |
||
|
10
|
10
26H-12168-K0-00 Pad, Adjusting (2.40)2.40 U.R. |
26H-12168-K0-00 |
from US $11.92 |
||
|
10
|
10
26H-12168-H0-00 Pad, Adjusting (2.35)2.35 U.R. |
26H-12168-H0-00 |
from US $11.92 |
||
|
10
|
10
26H-12168-F0-00 Pad, Adjusting (2.30)2.30 U.R. |
26H-12168-F0-00 |
from US $13.03 |
||
|
10
|
10
26H-12168-A0-00 Pad, Adjusting (2.25)2.25 U.R. |
26H-12168-A0-00 |
from US $13.03 |
||
|
10
|
10
26H-12168-80-00 Pad, Adjusting (2.20)2.20 U.R. |
26H-12168-80-00 |
from US $13.03 |
||
|
10
|
10
26H-12168-60-00 Pad, Adjusting (2.15)2.15 U.R. |
26H-12168-60-00 |
from US $11.92 |
||
|
10
|
10
26H-12168-40-00 Pad, Adjusting (2.10)2.10 U.R. |
26H-12168-40-00 |
from US $13.03 |
||
|
10
|
10
26H-12168-20-00 Pad, Adjusting (2.05)2.05 U.R. |
26H-12168-20-00 |
from US $11.92 |
||
|
10
|
10
26H-12168-00-00 Pad, Adjusting (2.00)2.00 U.R. |
26H-12168-00-00 |
from US $11.92 |
||
