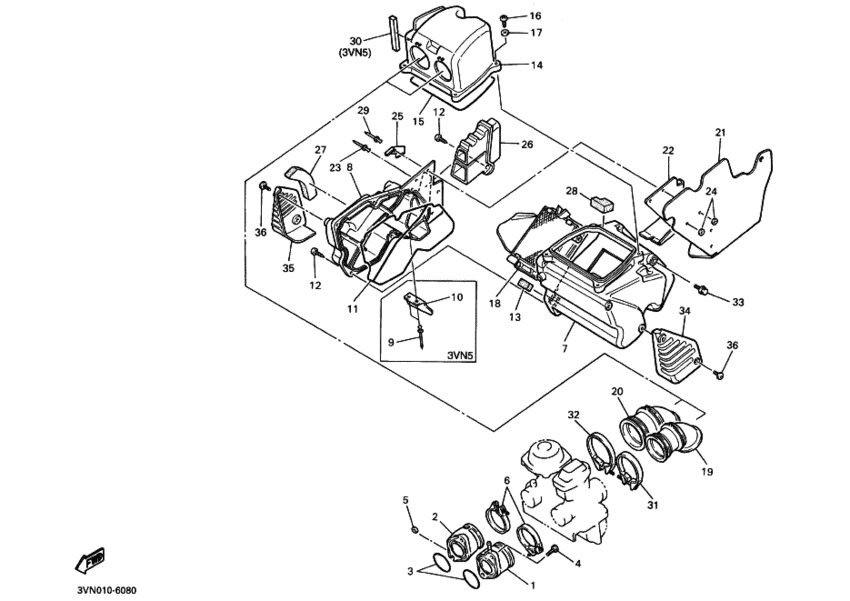

Intake Diagram Yamaha SRX400
- Year
- 1991
- Colour
- Black Metallic 2 (BM2; 0156)
- Model code
- 3VN2
- Sales region
- Japan (010)
- Engine Capacity
- 400
- Color Variant
- B
- Model
- SRX400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1JK-13586-01-00 Joint, Carb 1 (1Jk-13586-00) |
1JK-13586-01-00 |
from US $125.55 |
||
|
2
|
2
1JK-13596-01-00 Joint, Carburetor 2 (1Jk-13596- |
1JK-13596-01-00 |
from US $125.59 |
||
|
3
|
3
93210-36769-00 O-Ring |
93210-36769-00 |
from US $4.72 |
||
|
4
|
4
91317-06020-00 Boltボルト，ソケツトヘツド; |
91317-06020-00 |
from US $1.18 |
||
|
5
|
5
92907-06600-00 Washer, Plateワツシヤ，プレート; |
92907-06600-00 |
from US $1.18 |
||
|
6
|
6
90460-46206-00 Hose Clamp Assyクランプ，ホース; |
90460-46206-00 |
from US $6.66 |
||
| replacement | |||||
|
6
|
6
904-50470-02-00 Hose Clamp Assyクランプ，ホース; |
904-50470-02-00 |
from US $6.66 |
||
|
7
|
7
3SX-14411-00-00
Case, Air Cleaner 1
ケース，エアクリーナー １; |
3SX-14411-00-00 |
— | ||
|
8
|
8
3SX-14421-00-00
Case, Air Cleaner 2
ケース，エアクリーナー ２; |
3SX-14421-00-00 |
— | ||
|
11
|
11
51Y-14462-00-00 Sealシール; |
51Y-14462-00-00 |
from US $11.93 |
||
|
12
|
12
97707-50520-00 Screw, Tapping |
97707-50520-00 |
from US $1.56 |
||
| replacement | |||||
|
12
|
12
97707-50620-00 Screw, Tapping |
97707-50620-00 |
from US $1.22 |
||
|
13
|
13
36Y-14462-00-00 Sealシール; |
36Y-14462-00-00 |
from US $3.40 |
||
| replacement | |||||
|
13
|
13
999-99999-99-00
Not Available
シール; |
999-99999-99-00 |
— | ||
|
14
|
14
3SX-14412-00-00
Cap, Cleaner Case 1
キヤツプ，クリーナケース １; |
3SX-14412-00-00 |
— | ||
|
15
|
15
1VJ-14462-00-00 Sealシール; |
1VJ-14462-00-00 |
from US $11.12 |
||
|
16
|
16
98507-05016-00 Screw, Pan Headスクリュ， パンヘッド; |
98507-05016-00 |
from US $1.18 |
||
|
17
|
17
92907-05600-00 Washer, Plateワツシヤ，プレート; |
92907-05600-00 |
from US $1.18 |
||
|
18
|
18
3SX-14451-00-00 Element, Air Cleanerエレメント，エアクリーナ; |
3SX-14451-00-00 |
US $56.51 |
||
|
19
|
19
3SX-14453-00-00
Joint, Air Cleaner 1
ジヨイント，エアクリーナ １; |
3SX-14453-00-00 |
— | ||
|
20
|
20
3SX-14454-00-00
Joint
|
3SX-14454-00-00 |
— | ||
|
21
|
21
3SX-21621-00-00
Flap
|
3SX-21621-00-00 |
— | ||
|
22
|
22
3SX-21623-00-00
Plate, Flap Fitting 1
プレート，フラツプフイツテイング １; |
3SX-21623-00-00 |
— | ||
|
23
|
23
90267-40073-00 Rivet, Blind |
90267-40073-00 |
from US $3.26 |
||
| replacement | |||||
|
23
|
23
90267-40029-00 Rivet, Blind (4X18 Black) |
90267-40029-00 |
from US $3.54 |
||
|
24
|
24
90201-047A2-00 Washer, Plateワツシヤ，プレート; |
90201-047A2-00 |
from US $1.70 |
||
|
25
|
25
3SX-14477-00-00
Plate
プレート; |
3SX-14477-00-00 |
— | ||
|
26
|
26
3SX-14437-00-00
Duct
|
3SX-14437-00-00 |
— | ||
|
27
|
27
3SX-14425-00-00
Damper 1
|
3SX-14425-00-00 |
— | ||
|
28
|
28
3SX-14426-00-00
Damper 2
|
3SX-14426-00-00 |
— | ||
|
29
|
29
90267-40077-00 Rivet, Blind |
90267-40077-00 |
from US $1.84 |
||
|
31
|
31
90460-51059-00 Clamp, Hoseクランプ，ホース; |
90460-51059-00 |
from US $7.65 |
||
|
32
|
32
90460-58015-00 Hose Clamp Assyクランプ，ホース; |
90460-58015-00 |
from US $4.53 |
||
| replacement | |||||
|
32
|
32
90450-58002-00 Hose Clamp Assyクランプ，ホース; |
90450-58002-00 |
from US $4.53 |
||
|
33
|
33
95817-06010-00 Bolt, Flange |
95817-06010-00 |
from US $1.18 |
||
|
34
|
34
3SX-14417-00-00
Cover 1
カバー １; |
3SX-14417-00-00 |
— | ||
|
35
|
35
3SX-14418-00-00
Cover 2
カバー ２; |
3SX-14418-00-00 |
— | ||
|
36
|
36
92014-05010-00 Bolt, Button Headボルト，ボタンヘッド; |
92014-05010-00 |
from US $1.56 |
||
