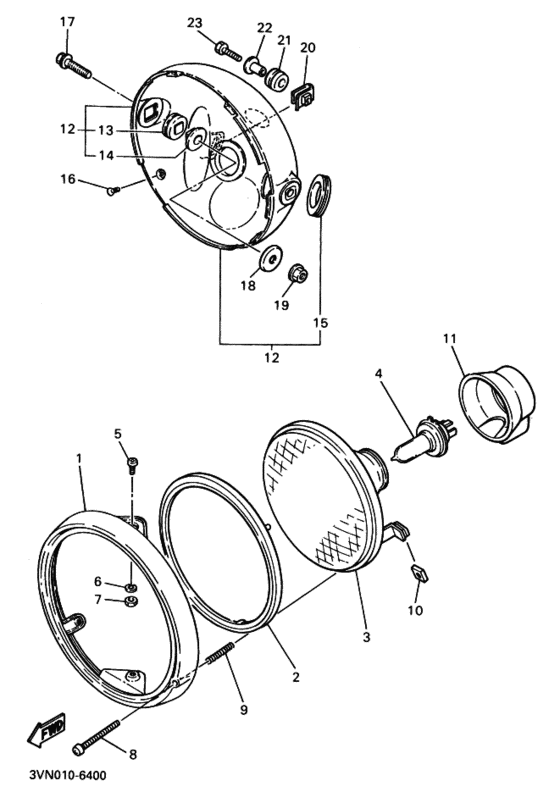

Headlight assy (3VN5) Diagram Yamaha SRX400
- Year
- 1996
- Colour
- Competition Silver (COMS; 00T9)
- Model code
- 3VN5
- Sales region
- Japan (010)
- Engine Capacity
- 400
- Color Variant
- A
- Model
- SRX400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
341-84315-40-00 Rim, Headlight |
341-84315-40-00 |
from US $56.78 |
||
|
2
|
2
29L-84395-00-00 Ring, Retainingリング，リテーニング; |
29L-84395-00-00 |
from US $34.56 |
||
|
3
|
3
3SX-84320-00-00
Lens Assy
|
3SX-84320-00-00 |
— | ||
|
4
|
4
2F9-84314-00-00 Bulb (12V 60/55W Halogen)バルブ ; １２Ｖ−６０／５５Ｗ; （Ｈ４）ハロゲン |
2F9-84314-00-00 |
from US $29.16 |
||
| replacements | |||||
|
4
|
4
5V2-84314-00-XX
Bulb (12V-60/55W)
バルブ ; １２Ｖ−６０／５５Ｗ; （Ｈ４）ハロゲン |
5V2-84314-00-XX |
— | ||
|
4
|
4
YMC-00903-00-00
Headlight Bulb 12V 60/55W H4
バルブ ; １２Ｖ−６０／５５Ｗ; （Ｈ４）ハロゲン |
YMC-00903-00-00 |
— | ||
|
4
|
4
5VK-H4314-00-00 Bulb, Headlightバルブ ; １２Ｖ−６０／５５Ｗ; （Ｈ４）ハロゲン |
5VK-H4314-00-00 |
US $45.92 |
||
|
4
|
4
8V0-84314-10-00 Bulb, Headlightバルブ ; １２Ｖ−６０／５５Ｗ; （Ｈ４）ハロゲン |
8V0-84314-10-00 |
from US $45.92 |
||
|
5
|
5
1JK-84365-09-00 Screwスクリユ; |
1JK-84365-09-00 |
from US $4.68 |
||
|
6
|
6
92907-05100-00 Washer, Springワツシヤ，スプリング; |
92907-05100-00 |
from US $1.56 |
||
|
7
|
7
95307-04600-00 Nut |
95307-04600-00 |
from US $1.70 |
||
|
8
|
8
98580-04055-00 Screw, Lens Fitting |
98580-04055-00 |
from US $4.25 |
||
|
9
|
9
341-84332-60-00 Spring |
341-84332-60-00 |
from US $3.12 |
||
|
10
|
10
198-84334-60-00 Nut, Adjusting |
198-84334-60-00 |
from US $3.47 |
||
|
11
|
11
3SX-84397-00-00 Cover, Socketカバー，ソケツト; |
3SX-84397-00-00 |
from US $21.25 |
||
|
12
|
12
1JK-84330-00-93 Body Assemblyボデーアセンブリ; クロム メツキ |
1JK-84330-00-93 |
from US $123.10 |
||
|
13
|
13
584-84345-60-00 Damper, Headlight．ダンパ，ヘツドライト; |
584-84345-60-00 |
from US $10.71 |
||
|
14
|
14
584-84338-60-00 Collar, Body Ftng．カラー，ボデーフイツテイング; |
584-84338-60-00 |
from US $7.79 |
||
|
15
|
15
214-84153-60-00 Grommet, Wire Harness．グロメツト，ワイヤハーネス; |
214-84153-60-00 |
from US $2.99 |
||
|
16
|
16
98704-05012-00 Screw, Flat Head |
98704-05012-00 |
from US $1.56 |
||
| replacement | |||||
|
16
|
16
98707-05012-00 Screw, Countersunk |
98707-05012-00 |
from US $2.21 |
||
|
17
|
17
95024-08030-00 Bolt, Flange (Small Head)ボルト，フランジ; |
95024-08030-00 |
from US $1.66 |
||
|
18
|
18
90209-08098-00 Washer 341833480000 |
90209-08098-00 |
from US $3.47 |
||
| replacement | |||||
|
18
|
18
90209-08008-00 Washer |
90209-08008-00 |
from US $5.24 |
||
|
19
|
19
95701-08500-00 Nut, Flange (95702-08500-00) |
95701-08500-00 |
from US $1.18 |
||
| replacements | |||||
|
19
|
19
95704-08500-00 Nut, Flange |
95704-08500-00 |
from US $1.18 |
||
|
19
|
19
90179-08491-00 Nut(55X) |
90179-08491-00 |
from US $1.39 |
||
|
20
|
20
90183-06023-00 Nut, Spring |
90183-06023-00 |
from US $3.68 |
||
|
21
|
21
90480-14023-00 Grommet 839774310000 |
90480-14023-00 |
from US $1.66 |
||
|
22
|
22
903-87063-88-00
Collar
カラー; |
903-87063-88-00 |
— | ||
| replacement | |||||
|
22
|
22
90387-06158-00 Collarカラー; |
90387-06158-00 |
from US $1.66 |
||
|
23
|
23
90153-06008-00 Screw, Hexagon |
90153-06008-00 |
from US $1.70 |
||
