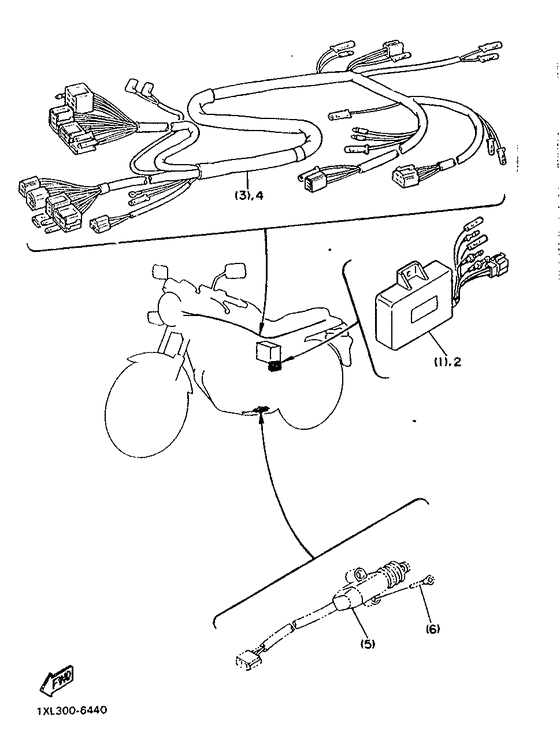

Electrical Diagram Yamaha SRX600
- Year
- 1986
- Colour
- Samson Blue (SSB; 00ME)
- Model code
- 1XW
- Sales region
- Switzerland (999)
- Engine Capacity
- 600
- Model
- SRX600
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
1XL-85540-50-00
Cdi Unit Assembly
|
1XL-85540-50-00 |
— | ||
| replacement | |||||
|
01
|
01
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
02
|
02
1JK-85540-51-00
C.d.i. Unit Assy
|
1JK-85540-51-00 |
— | ||
| replacement | |||||
|
02
|
02
2WK-85540-50-00
C.d.i. Unit Assy
|
2WK-85540-50-00 |
— | ||
|
03
|
03
1XL-82590-00-00
Wire Harness Assy
|
1XL-82590-00-00 |
— | ||
| replacement | |||||
|
03
|
03
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
04
|
04
1XL-82590-10-00
Wire Harness Assy
|
1XL-82590-10-00 |
— | ||
| replacement | |||||
|
04
|
04
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
05
|
05
1XL-82566-00-00
Switch, Side Stand
|
1XL-82566-00-00 |
— | ||
| replacement | |||||
|
05
|
05
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
06
|
06
987-06050-16-00
Screw, Flat Head
(for england) |
987-06050-16-00 |
— | ||
| replacement | |||||
|
06
|
06
98707-05016-00 Screw, Flat Head(for england) |
98707-05016-00 |
from US $1.35 |
||
