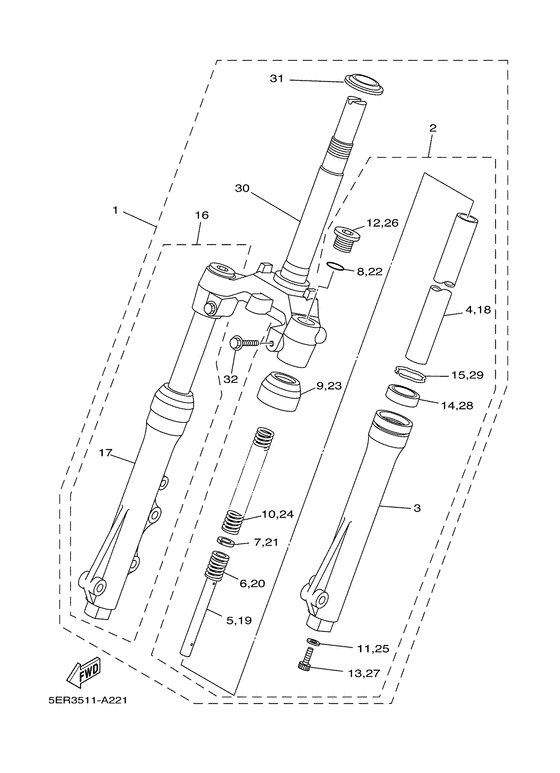

Front fork Diagram Yamaha T105 Crypton R
- Year
- 2002
- Colour
- Yamaha Black (YB; 0033)
- Model code
- 5ER3
- Sales region
- Greece (010)
- Engine Capacity
- 100
- Model
- T105
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4US-F3100-10-00
Front fork assy
|
4US-F3100-10-00 |
— | ||
|
02
|
02
4US-F3102-10-00
Front fork assy (l.h)
|
4US-F3102-10-00 |
— | ||
|
03
|
03
4NS-F3126-10-WN
Tube, outer (left)
Cis |
4NS-F3126-10-WN |
— | ||
|
04
|
04
2JG-F3110-00-00
Inner Tube Comp.1
|
2JG-F3110-00-00 |
— | ||
|
05
|
05
3SB-F3170-00-00
Cylinder Comp., Front Fork
|
3SB-F3170-00-00 |
— | ||
|
06
|
06
2JG-F3152-00-00
Spring, Sub
|
2JG-F3152-00-00 |
— | ||
|
07
|
07
2JG-F3157-00-00 Ring, Piston |
2JG-F3157-00-00 |
US $1.98 |
||
|
08
|
08
2JG-F3147-00-00 O-Ring |
2JG-F3147-00-00 |
US $6.38 |
||
|
09
|
09
2JG-F3144-00-00
Seal, Dust
|
2JG-F3144-00-00 |
— | ||
|
10
|
10
2JG-F3141-00-00
Spring, Front Fork
|
2JG-F3141-00-00 |
— | ||
|
11
|
11
509-F3158-L0-00 Gasket |
509-F3158-L0-00 |
from US $3.54 |
||
| replacement | |||||
|
11
|
11
509-23158-L0-00 Gasket |
509-23158-L0-00 |
from US $4.03 |
||
|
12
|
12
5LM-F3111-00-00
Bolt, cap
|
5LM-F3111-00-00 |
— | ||
|
13
|
13
278-F3181-50-00 Bolt, Hexagon Socket Head |
278-F3181-50-00 |
US $4.82 |
||
|
14
|
14
3AY-F3145-00-00 Oil Seal |
3AY-F3145-00-00 |
US $13.03 |
||
|
15
|
15
1T8-23156-00-00 Ring, Snap |
1T8-23156-00-00 |
from US $4.82 |
||
|
16
|
16
4US-F3103-10-00
Front fork assy (r.h)
|
4US-F3103-10-00 |
— | ||
|
17
|
17
4US-F3136-10-WN
Tube, Outer (Right)
Cis |
4US-F3136-10-WN |
— | ||
|
18
|
18
2JG-F3110-00-00
Inner Tube Comp.1
|
2JG-F3110-00-00 |
— | ||
|
19
|
19
3SB-F3170-00-00
Cylinder Comp., Front Fork
|
3SB-F3170-00-00 |
— | ||
|
20
|
20
2JG-F3152-00-00
Spring, Sub
|
2JG-F3152-00-00 |
— | ||
|
21
|
21
2JG-F3157-00-00 Ring, Piston |
2JG-F3157-00-00 |
US $1.98 |
||
|
22
|
22
2JG-F3147-00-00 O-Ring |
2JG-F3147-00-00 |
US $6.38 |
||
|
23
|
23
2JG-F3144-00-00
Seal, Dust
|
2JG-F3144-00-00 |
— | ||
|
24
|
24
2JG-F3141-00-00
Spring, Front Fork
|
2JG-F3141-00-00 |
— | ||
|
25
|
25
509-F3158-L0-00 Gasket |
509-F3158-L0-00 |
from US $3.54 |
||
| replacement | |||||
|
25
|
25
509-23158-L0-00 Gasket |
509-23158-L0-00 |
from US $4.03 |
||
|
26
|
26
5LM-F3111-00-00
Bolt, cap
|
5LM-F3111-00-00 |
— | ||
|
27
|
27
278-F3181-50-00 Bolt, Hexagon Socket Head |
278-F3181-50-00 |
US $4.82 |
||
|
28
|
28
3AY-F3145-00-00 Oil Seal |
3AY-F3145-00-00 |
US $13.03 |
||
|
29
|
29
1T8-23156-00-00 Ring, Snap |
1T8-23156-00-00 |
from US $4.82 |
||
|
30
|
30
4US-F3340-00-00
Under Bracket Comp
|
4US-F3340-00-00 |
— | ||
|
31
|
31
156-23411-00-00 Race, Ball 1 |
156-23411-00-00 |
from US $17.10 |
||
| replacement | |||||
|
31
|
31
B6E-23411-00-00 Race, Ball 1 |
B6E-23411-00-00 |
from US $9.65 |
||
|
32
|
32
3YR-F3346-00-00
Bolt 1
|
3YR-F3346-00-00 |
— | ||
