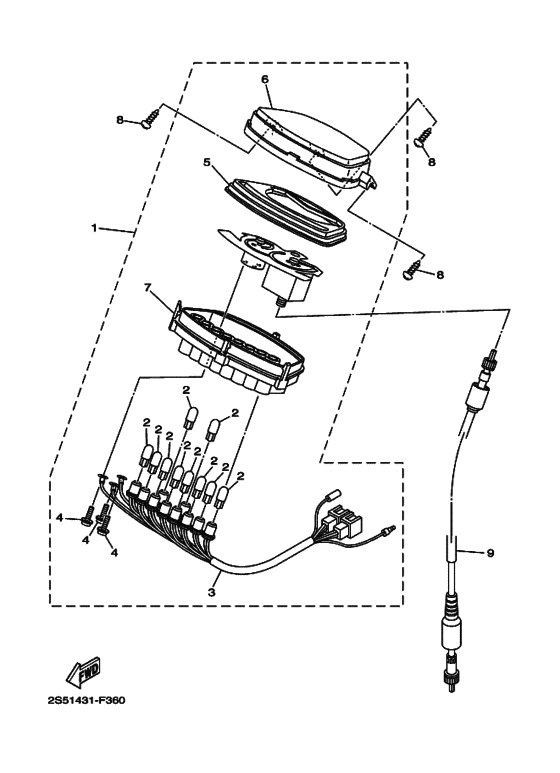

Meter Diagram Yamaha T135 Crypton X
- Year
- 2014
- Colour
- Mat Blue Metallic 3 (MBM3; 0960)
- Model code
- 5D67
- Sales region
- Europe (010)
- Engine Capacity
- 135
- Color Variant
- A
- Model
- T135
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5D6-H3510-00-00
Speedometer Assy
|
5D6-H3510-00-00 |
— | ||
|
2
|
2
1Y7-83517-00-00 Bulb (12V-1.7W T10)12V-1.7W T10 |
1Y7-83517-00-00 |
US $3.26 |
||
|
3
|
3
5D6-H3509-00-00
Socket Cord Assy
|
5D6-H3509-00-00 |
— | ||
|
4
|
4
90159-03102-00 Screw, With Washer |
90159-03102-00 |
from US $1.84 |
||
|
5
|
5
5YP-H353L-00-00
Reflector
|
5YP-H353L-00-00 |
— | ||
|
6
|
6
5YP-H3511-00-00
Lens, Speedometer
|
5YP-H3511-00-00 |
— | ||
|
7
|
7
5YP-H353F-00-00
Case, Meter Lower
|
5YP-H353F-00-00 |
— | ||
|
8
|
8
977-07500-16-00
Screw, Tapping(4Mv)
|
977-07500-16-00 |
— | ||
| replacement | |||||
|
8
|
8
90167-05077-00 Screw, Tapping(4Tv) |
90167-05077-00 |
from US $1.84 |
||
|
9
|
9
5YP-H3550-00-00
Speedometer Cable Assy
|
5YP-H3550-00-00 |
— | ||
