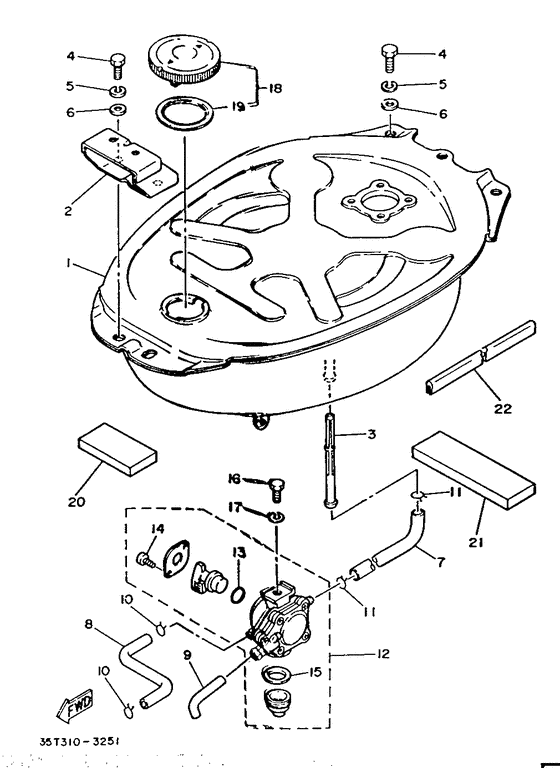

Fuel tank Diagram Yamaha T50 T50
- Year
- 1986
- Colour
- New High Sparkle Blue (NHB; 001H)
- Model code
- 2FM
- Sales region
- England (999)
- Engine Capacity
- 50
- Model
- T50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
22F-24110-02-33 Fuel Tank CompYamaha black |
22F-24110-02-33 |
US $205.10 |
||
|
02
|
02
35T-24718-00-00
Bracket, Seat
|
35T-24718-00-00 |
— | ||
|
03
|
03
22F-24514-01-00 Net, Filter 1 |
22F-24514-01-00 |
from US $5.81 |
||
| replacement | |||||
|
03
|
03
5BM-24514-00-00 Net, Filter 1 |
5BM-24514-00-00 |
from US $7.01 |
||
|
04
|
04
97302-06020-00 Bolt |
97302-06020-00 |
from US $1.07 |
||
| replacement | |||||
|
04
|
04
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.07 |
||
|
05
|
05
92901-06700-00 Washer,wave |
92901-06700-00 |
from US $1.26 |
||
| replacement | |||||
|
05
|
05
92907-06700-00 Washer(6Ta) |
92907-06700-00 |
from US $2.13 |
||
|
06
|
06
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
07
|
07
22F-24311-02-00
Pipe, Fuel 1
|
22F-24311-02-00 |
— | ||
|
08
|
08
22F-24313-01-00
Pipe 3
|
22F-24313-01-00 |
— | ||
|
09
|
09
22F-24314-01-00
Pipe 4
|
22F-24314-01-00 |
— | ||
|
10
|
10
904-67090-06-00
Clip
|
904-67090-06-00 |
— | ||
| replacement | |||||
|
10
|
10
904-67090-A2-00 Clip |
904-67090-A2-00 |
from US $1.56 |
||
|
11
|
11
904-67100-08-00
Clip
|
904-67100-08-00 |
— | ||
| replacements | |||||
|
11
|
11
90467-100A1-00 Clip |
90467-100A1-00 |
from US $1.28 |
||
|
11
|
11
90467-11106-00 Clip |
90467-11106-00 |
from US $1.28 |
||
|
12
|
12
35T-24500-00-00 Fuel Cock Assy 1 |
35T-24500-00-00 |
US $107.49 |
||
|
13
|
13
4X8-24534-00-00 Seal, Cock |
4X8-24534-00-00 |
from US $7.37 |
||
|
14
|
14
4X8-24565-00-00
Gasket
|
4X8-24565-00-00 |
— | ||
| replacement | |||||
|
14
|
14
4X8-24565-10-00 GASKET |
4X8-24565-10-00 |
from US $7.79 |
||
|
15
|
15
4X8-24565-00-00
Gasket
|
4X8-24565-00-00 |
— | ||
| replacement | |||||
|
15
|
15
4X8-24565-10-00 GASKET |
4X8-24565-10-00 |
from US $7.79 |
||
|
16
|
16
97302-06012-00 Bolt |
97302-06012-00 |
from US $3.12 |
||
| replacements | |||||
|
16
|
16
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
16
|
16
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
|
17
|
17
97302-06012-00 Bolt |
97302-06012-00 |
from US $3.12 |
||
| replacements | |||||
|
17
|
17
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
17
|
17
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
|
18
|
18
22F-24610-01-00 Cap Assy |
22F-24610-01-00 |
from US $18.70 |
||
| replacement | |||||
|
18
|
18
22F-24610-10-00 Cap Assembly |
22F-24610-10-00 |
from US $18.70 |
||
|
19
|
19
3T5-24612-02-00 Packing, Cap |
3T5-24612-02-00 |
US $9.63 |
||
| replacement | |||||
|
19
|
19
3T5-24612-20-00 Packing, Cap |
3T5-24612-20-00 |
from US $7.64 |
||
|
20
|
20
22F-24181-00-00
Damper, Locating 1
|
22F-24181-00-00 |
— | ||
|
21
|
21
22F-24182-00-00 Damper, Locating 2 |
22F-24182-00-00 |
US $6.28 |
||
|
22
|
22
22F-21485-00-00
Damper, Rubber 1
|
22F-21485-00-00 |
— | ||
