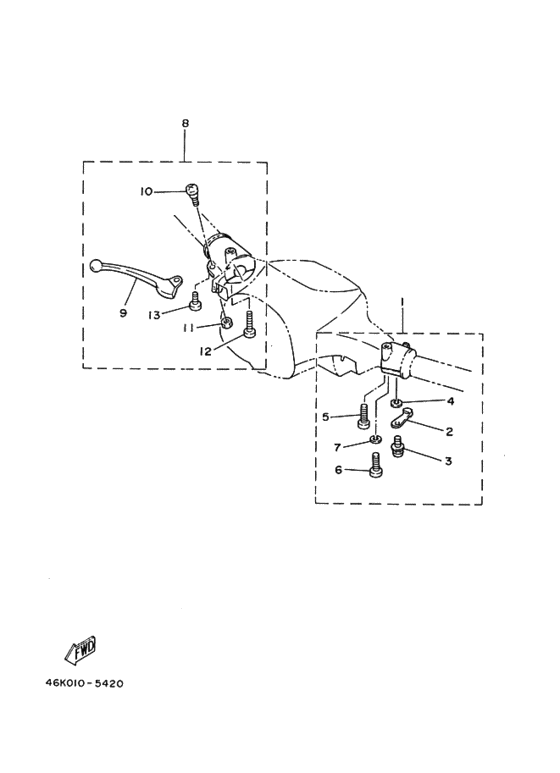

Handle switch & lever Diagram Yamaha T50 T50
- Year
- 1985
- Colour
- Radical Green (RDG; 00JE)
- Model code
- 46N
- Sales region
- Japan (010)
- Engine Capacity
- 50
- Color Variant
- A
- Model
- T50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22F-83973-01-00 Switch, Handle 3スイツチ，ハンドル ３ ; レフト |
22F-83973-01-00 |
US $167.17 |
||
|
2
|
2
22F-83941-00-00
Lever, Starter
．レバー，スタータ; |
22F-83941-00-00 |
— | ||
| replacement | |||||
|
2
|
2
35T-83941-01-00
Lever, Starter
．レバー，スタータ; |
35T-83941-01-00 |
— | ||
|
3
|
3
22F-83945-00-00 Screw, With Washer．スクリユウイズワツシヤ; |
22F-83945-00-00 |
US $1.21 |
||
|
4
|
4
22F-83944-00-00
Washer, Spring
．ワツシヤ，スプリング; |
22F-83944-00-00 |
— | ||
| replacement | |||||
|
4
|
4
999-99999-99-00
Not Available
．ワツシヤ，スプリング; |
999-99999-99-00 |
— | ||
|
5
|
5
98506-05025-00 Screw, Pan Head．スクリユ，パンヘツド; |
98506-05025-00 |
from US $1.42 |
||
| replacements | |||||
|
5
|
5
98507-05025-00 Screw, Pan Head(4My)．スクリユ，パンヘツド; |
98507-05025-00 |
from US $1.42 |
||
|
5
|
5
985-80055-25-00 Screw, Pan Head．スクリユ，パンヘツド; |
985-80055-25-00 |
from US $1.33 |
||
|
6
|
6
985-06050-30-00
Screw, Pan Head
．スクリユ，パンヘツド; |
985-06050-30-00 |
— | ||
| replacement | |||||
|
6
|
6
98517-05030-00 Screw, Pan Head．スクリユ，パンヘツド; |
98517-05030-00 |
from US $1.22 |
||
|
7
|
7
929-06051-00-00
Washer, Spring
．ワツシヤ，スプリング; |
929-06051-00-00 |
— | ||
| replacement | |||||
|
7
|
7
92907-05100-00 Washer, Spring．ワツシヤ，スプリング; |
92907-05100-00 |
from US $1.56 |
||
|
8
|
8
22F-82920-01-00
Lever Holder Assy (Right)
レバーホルダアセンブリ ; ライト |
22F-82920-01-00 |
— | ||
| replacement | |||||
|
8
|
8
22F-82920-02-00 Lever Holder Assy (Right)レバーホルダアセンブリ ; ライト |
22F-82920-02-00 |
US $95.95 |
||
|
9
|
9
22F-83922-00-00 Lever 2．レバー２; |
22F-83922-00-00 |
US $15.12 |
||
| replacement | |||||
|
9
|
9
22F-83922-01-00 Lever 2．レバー２; |
22F-83922-01-00 |
US $15.12 |
||
|
10
|
10
22F-83915-00-00
Screw, Lever Fitting
．スクリユ，レバーフイツテイング; |
22F-83915-00-00 |
— | ||
|
11
|
11
95601-05100-00 Nut, U．ナツト，Ｕ; |
95601-05100-00 |
US $1.98 |
||
| replacement | |||||
|
11
|
11
95617-05100-00 Nut, U．ナツト，Ｕ; |
95617-05100-00 |
from US $1.98 |
||
|
12
|
12
985-06050-30-00
Screw, Pan Head
．スクリユ，パンヘツド; |
985-06050-30-00 |
— | ||
| replacement | |||||
|
12
|
12
98517-05030-00 Screw, Pan Head．スクリユ，パンヘツド; |
98517-05030-00 |
from US $1.22 |
||
|
13
|
13
98506-05020-00 Screw, Pan Head．スクリユ，パンヘツド; |
98506-05020-00 |
from US $1.84 |
||
| replacement | |||||
|
13
|
13
98517-05020-00 Screw, Pan Head．スクリユ，パンヘツド; |
98517-05020-00 |
from US $1.34 |
||
