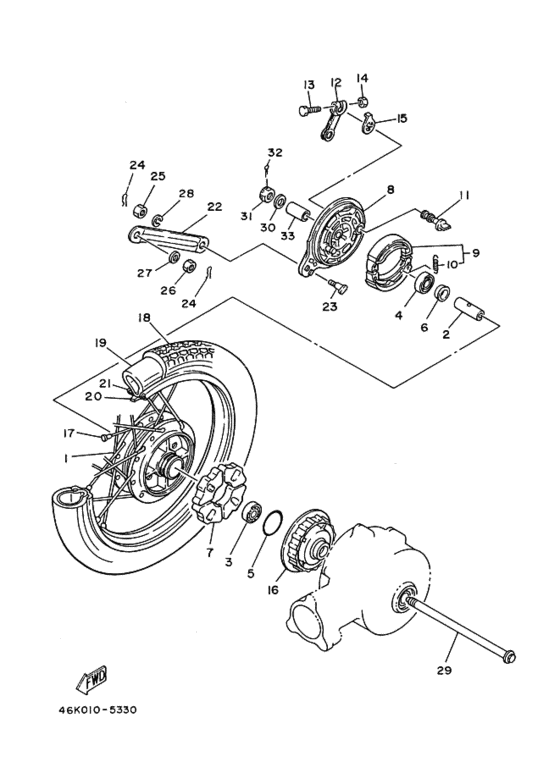

Rear wheel Diagram Yamaha T50 T50
- Year
- 1985
- Colour
- Radical Green (RDG; 00JE)
- Model code
- 46R
- Sales region
- Japan (010)
- Engine Capacity
- 50
- Color Variant
- A
- Model
- T50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22F-25311-00-35
Hub, Rear
シルバー |
22F-25311-00-35 |
— | ||
|
2
|
2
90560-12145-00 Spacerスペーサ; |
90560-12145-00 |
from US $8.22 |
||
|
3
|
3
93306-30106-00 Bearing |
93306-30106-00 |
US $12.75 |
||
| replacement | |||||
|
3
|
3
933-06301-02-00 Bearing |
933-06301-02-00 |
from US $12.75 |
||
|
4
|
4
933-06301-02-00 Bearingベアリング ; Ｂ６３０１ |
933-06301-02-00 |
from US $12.75 |
||
|
5
|
5
93210-38516-00
O-Ring (22F)
Ｏ−リング; |
93210-38516-00 |
— | ||
|
6
|
6
102-25315-00-00 Flange, Spacerフランジ，スペーサ; |
102-25315-00-00 |
from US $2.55 |
||
| replacement | |||||
|
6
|
6
109-25315-00-00 Flange, Spacerフランジ，スペーサ; |
109-25315-00-00 |
from US $2.55 |
||
|
7
|
7
22F-25364-00-00 Damper |
22F-25364-00-00 |
US $12.33 |
||
|
8
|
8
31J-25321-00-35
Plate, Brake Shoe
プレート，ブレーキシユー; シルバー |
31J-25321-00-35 |
— | ||
| replacement | |||||
|
8
|
8
31J-25321-10-00
Plate, Brake Sh0E
プレート，ブレーキシユー; シルバー |
31J-25321-10-00 |
— | ||
|
9
|
9
22F-W2534-00-00
Brakeshoe Set
ブレーキシユーキツト ２; |
22F-W2534-00-00 |
— | ||
| replacement | |||||
|
9
|
9
999-99999-99-00
Not Available
ブレーキシユーキツト ２; |
999-99999-99-00 |
— | ||
|
10
|
10
90506-18288-00 Spring, Tension．スプリング，テンシヨン; |
90506-18288-00 |
from US $3.26 |
||
|
11
|
11
3Y6-25351-00-00 Camshaft |
3Y6-25351-00-00 |
from US $27.77 |
||
| replacement | |||||
|
11
|
11
4GL-25351-00-00 Camshaft |
4GL-25351-00-00 |
from US $27.77 |
||
|
12
|
12
1T9-25355-00-00 Lever, Camshaftレバー，カムシヤフト; |
1T9-25355-00-00 |
from US $11.97 |
||
| replacement | |||||
|
12
|
12
5DV-25355-00-00
Lever, Camshaft
レバー，カムシヤフト; |
5DV-25355-00-00 |
— | ||
|
13
|
13
90101-06278-00 Bolt |
90101-06278-00 |
from US $1.54 |
||
|
14
|
14
95301-06600-00 Nut, Hexagon |
95301-06600-00 |
from US $0.90 |
||
| replacement | |||||
|
14
|
14
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
15
|
15
3Y6-2533A-01-00 Plate, Indicatorプレート，インデケータ; |
3Y6-2533A-01-00 |
from US $2.55 |
||
| replacement | |||||
|
15
|
15
5AD-F533A-00-00
Plate, Indicator
プレート，インデケータ; |
5AD-F533A-00-00 |
— | ||
|
16
|
16
22F-25366-00-00
Clutch, Hub
|
22F-25366-00-00 |
— | ||
|
17
|
17
296-25304-10-00 Spoke Set, Rearスポークセツト，リヤ; |
296-25304-10-00 |
US $108.18 |
||
|
18
|
18
94122-17009-00
225X17 Irc
タイヤ ; ２．２５−１７; ＵＲ イノウエ |
94122-17009-00 |
— | ||
|
18
|
18
94122-170E7-00
Tire (2.25-17)
タイヤ ; ２．２５−１７; ＵＲ イノウエ |
94122-170E7-00 |
— | ||
|
19
|
19
94222-17081-00
Tube (2.25-17)
チユーブ ; ２．２５−１７; ヨコハマ |
94222-17081-00 |
— | ||
| replacement | |||||
|
19
|
19
94222-17269-00
Tube (2.25-17)(1Aj)
チユーブ ; ２．２５−１７; ヨコハマ |
94222-17269-00 |
— | ||
|
20
|
20
94320-17062-00 Band, Rim (2.00-17)バンド，リム ; ２．００−１７; ＵＲ ヨコハマ |
94320-17062-00 |
US $5.67 |
||
| replacement | |||||
|
20
|
20
94332-17112-00 Band, Rim (2.75-17)バンド，リム ; ２．００−１７; ＵＲ ヨコハマ |
94332-17112-00 |
from US $5.67 |
||
|
20
|
20
94322-17078-00 Band, Rim (2.25-17)バンド，リム ; ２．２５−１７; ＵＲ イノウエ |
94322-17078-00 |
US $1.42 |
||
| replacement | |||||
|
20
|
20
94332-17112-00 Band, Rim (2.75-17)バンド，リム ; ２．２５−１７; ＵＲ イノウエ |
94332-17112-00 |
from US $5.67 |
||
|
21
|
21
94412-17002-00 Rim (1.20-17)リム ; １．２０−１７ |
94412-17002-00 |
from US $58.17 |
||
| replacement | |||||
|
21
|
21
94412-17496-00 Rimリム ; １．２０−１７ |
94412-17496-00 |
from US $58.17 |
||
|
22
|
22
22F-25371-00-00
Bar, Tension
バー，テンシヨン; |
22F-25371-00-00 |
— | ||
| replacement | |||||
|
22
|
22
999-99999-99-00
Not Available
バー，テンシヨン; |
999-99999-99-00 |
— | ||
|
23
|
23
90109-08183-00 Bolt |
90109-08183-00 |
from US $5.67 |
||
| replacement | |||||
|
23
|
23
90109-08816-00 Bolt |
90109-08816-00 |
US $2.55 |
||
|
24
|
24
437-83525-00-00 Clip |
437-83525-00-00 |
US $1.84 |
||
| replacement | |||||
|
24
|
24
90468-10050-00 Clip (156-83525-00) |
90468-10050-00 |
from US $1.84 |
||
|
25
|
25
95301-08700-00 Nut |
95301-08700-00 |
US $1.42 |
||
| replacement | |||||
|
25
|
25
95380-08700-00 Nut |
95380-08700-00 |
from US $1.42 |
||
|
26
|
26
90185-08055-00 Nut, Self-Locking |
90185-08055-00 |
from US $1.35 |
||
| replacement | |||||
|
26
|
26
95617-08100-00 Nut, U |
95617-08100-00 |
from US $3.26 |
||
|
27
|
27
929-01082-00-00
Washer, Plain
ワツシヤ，プレーン; |
929-01082-00-00 |
— | ||
| replacements | |||||
|
27
|
27
92990-08200-00 Washer, Plainワツシヤ，プレーン; |
92990-08200-00 |
from US $1.07 |
||
|
27
|
27
92907-08200-00 Washerワツシヤ，プレーン; |
92907-08200-00 |
from US $1.56 |
||
|
28
|
28
929-01081-00-00
Washer, Spring
ワツシヤ，スプリング; |
929-01081-00-00 |
— | ||
| replacement | |||||
|
28
|
28
92990-08100-00 Ybs67-8 Washer, Springワツシヤ，スプリング; |
92990-08100-00 |
from US $1.34 |
||
|
29
|
29
22F-25381-00-00 Axle, Wheelアクスル，ホイール; |
22F-25381-00-00 |
US $27.32 |
||
|
30
|
30
92901-12600-00 Washer, Plateワツシヤ，プレート; |
92901-12600-00 |
from US $1.42 |
||
| replacement | |||||
|
30
|
30
92990-12600-00 Washer, Plateワツシヤ，プレート; |
92990-12600-00 |
from US $1.42 |
||
|
31
|
31
90171-12005-00 Nut, Castle |
90171-12005-00 |
from US $3.83 |
||
| replacement | |||||
|
31
|
31
90171-12039-00 Nut, Castle(36R) |
90171-12039-00 |
from US $2.27 |
||
|
32
|
32
91401-30025-00 Pin, Split |
91401-30025-00 |
from US $1.42 |
||
| replacement | |||||
|
32
|
32
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.13 |
||
|
33
|
33
90387-127G1-00 Collarカラー; |
90387-127G1-00 |
US $7.65 |
||
