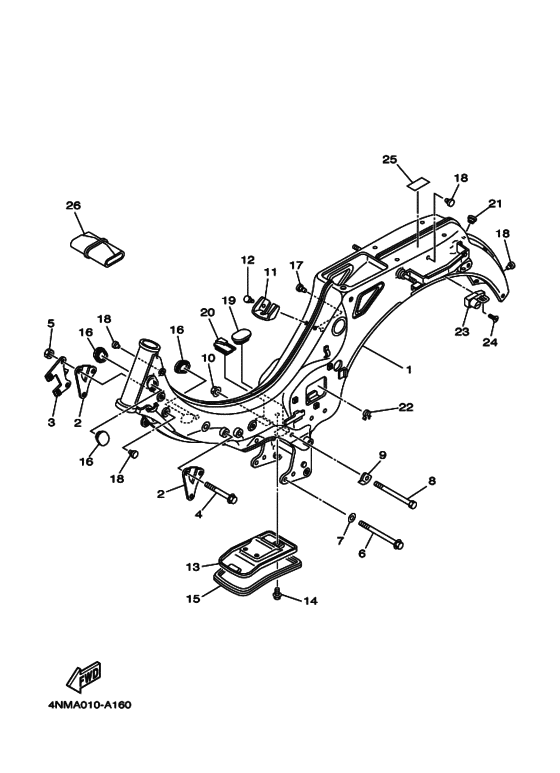

Frame Diagram Yamaha T90 News Mate
- Year
- 2002
- Colour
- Pastel Mineral Blue (PMIB; 00T7)
- Model code
- 4NMB
- Sales region
- Japan (010)
- Engine Capacity
- 90
- Color Variant
- A
- Model
- T90
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4NM-21110-20-T7 Frame Compフレームコンプリート; パステルミネラルブルー |
4NM-21110-20-T7 |
US $703.04 |
||
|
2
|
2
4GL-21315-00-00 Stay, Engine 1ステー，エンジン ２; |
4GL-21315-00-00 |
US $11.02 |
||
|
3
|
3
4GL-21359-00-00 Bracket, Coil |
4GL-21359-00-00 |
US $9.70 |
||
|
4
|
4
90105-08024-00 Bolt, Flangeボルト，フランジ; |
90105-08024-00 |
from US $5.10 |
||
|
5
|
5
95607-08200-00 Nut, Self-Lockingナツト，セルフロツキング; |
95607-08200-00 |
US $2.35 |
||
| replacement | |||||
|
5
|
5
901-85081-69-00 Nut, Self-Lockingナツト，セルフロツキング; |
901-85081-69-00 |
from US $2.35 |
||
|
6
|
6
90105-10701-00 Bolt, Flangeボルト，フランジ; |
90105-10701-00 |
from US $7.76 |
||
|
7
|
7
92907-10600-00 Washer, Plateワツシヤ，プレート; |
92907-10600-00 |
from US $1.18 |
||
|
8
|
8
90101-08538-00 Bolt |
90101-08538-00 |
from US $7.37 |
||
|
9
|
9
58K-2129Y-00-00 Bracket |
58K-2129Y-00-00 |
US $9.25 |
||
|
10
|
10
95607-08200-00 Nut, Self-Lockingナツト，セルフロツキング; |
95607-08200-00 |
US $2.35 |
||
| replacement | |||||
|
10
|
10
901-85081-69-00 Nut, Self-Lockingナツト，セルフロツキング; |
901-85081-69-00 |
from US $2.35 |
||
|
11
|
11
296-21345-00-00
Bracket, Tank Ftng
ブラケツト，フユエルタンク; |
296-21345-00-00 |
— | ||
|
12
|
12
97007-06010-00 Boltボルト; |
97007-06010-00 |
from US $1.66 |
||
| replacement | |||||
|
12
|
12
97017-06010-00 Boltボルト; |
97017-06010-00 |
from US $1.66 |
||
|
13
|
13
4GL-2117F-00-00
Cover
カバー; |
4GL-2117F-00-00 |
— | ||
|
14
|
14
90119-06018-00 Bolt, With Washer |
90119-06018-00 |
from US $1.56 |
||
| replacement | |||||
|
14
|
14
97017-06016-00 Bolt |
97017-06016-00 |
from US $1.36 |
||
|
15
|
15
19E-21268-00-00 Sealシール; |
19E-21268-00-00 |
US $16.01 |
||
|
16
|
16
4GL-21268-00-00 Sealシール; |
4GL-21268-00-00 |
US $14.31 |
||
|
17
|
17
90338-05056-00 Plug |
90338-05056-00 |
from US $2.55 |
||
|
18
|
18
90338-07043-00 Plug |
90338-07043-00 |
from US $1.71 |
||
|
19
|
19
4GL-21289-00-00 Plug, Blindプラグ，ブラインド; |
4GL-21289-00-00 |
US $6.46 |
||
|
20
|
20
4GL-21279-00-00 Plug, Blind |
4GL-21279-00-00 |
US $7.64 |
||
|
21
|
21
90480-13203-00 Grommet |
90480-13203-00 |
US $2.98 |
||
| replacement | |||||
|
21
|
21
90480-14153-00 Grommet (420) |
90480-14153-00 |
from US $2.98 |
||
|
22
|
22
90464-13133-00 Clamp |
90464-13133-00 |
from US $1.81 |
||
|
23
|
23
4R8-21308-00-00
Helmet Hanger Assy
ヘルメツトハンガーアセンブリ; |
4R8-21308-00-00 |
— | ||
| replacement | |||||
|
23
|
23
26H-21308-01-00 Helmet Hanger Assyヘルメツトハンガーアセンブリ; |
26H-21308-01-00 |
from US $44.85 |
||
|
24
|
24
90149-06154-00 Screw |
90149-06154-00 |
from US $1.56 |
||
|
26
|
26
22F-28100-10-00 Tool Kitツールキツト; |
22F-28100-10-00 |
US $54.63 |
||
| replacement | |||||
|
26
|
26
22F-W2810-00-00 Tool Kit (55X-28100-00)ツールキツト; |
22F-W2810-00-00 |
US $54.63 |
||
