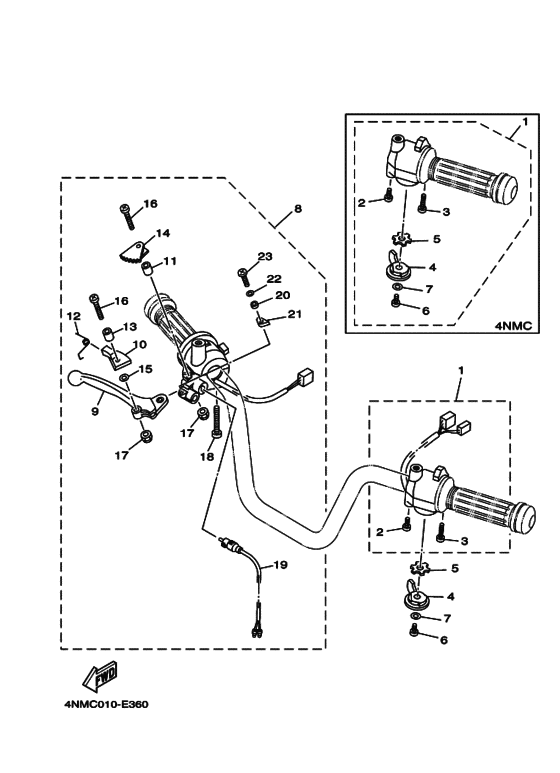

Handle switch & lever Diagram Yamaha T90 News Mate
- Year
- 2006
- Colour
- Pastel Mineral Blue (PMIB; 00T7)
- Model code
- 4NMD
- Sales region
- Japan (010)
- Engine Capacity
- 90
- Color Variant
- A
- Model
- T90
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5T9-W8392-05-00 Switch, Handle 2 |
5T9-W8392-05-00 |
US $82.21 |
||
|
2
|
2
98504-05018-00 Screw, Pan Head．スクリユ，パンヘツド; |
98504-05018-00 |
from US $1.04 |
||
|
3
|
3
98504-05030-00 Screw, Pan Head．スクリユ，パンヘツド; |
98504-05030-00 |
US $1.28 |
||
|
4
|
4
3LA-83941-00-00 Lever, Starterレバー，スタータ; |
3LA-83941-00-00 |
from US $10.12 |
||
|
5
|
5
90209-10131-00 Washer |
90209-10131-00 |
from US $1.84 |
||
|
6
|
6
98507-06008-00 Screwスクリユ，パンヘツド; |
98507-06008-00 |
from US $2.41 |
||
| replacement | |||||
|
6
|
6
98517-06008-00 Screwスクリユ，パンヘツド; |
98517-06008-00 |
from US $1.70 |
||
|
7
|
7
92907-06200-00 Washer(6Ta) |
92907-06200-00 |
from US $1.07 |
||
|
8
|
8
4GL-82920-00-00 Lever Holder Assy (Right)レバーホルダアセンブリ ; ライト |
4GL-82920-00-00 |
US $133.46 |
||
|
9
|
9
566-83922-01-00 Lever 2．レバー ２; |
566-83922-01-00 |
US $12.89 |
||
|
10
|
10
5T9-2175J-00-00 Lever Lock Comp．レバーロツクコンプリート; |
5T9-2175J-00-00 |
US $17.33 |
||
|
11
|
11
40X-83923-00-00 Collar, Lever 2．カラー，レバー ２; |
40X-83923-00-00 |
US $2.94 |
||
|
12
|
12
296-83966-00-00 Spring, Return．スプリング，リターン; |
296-83966-00-00 |
US $3.54 |
||
|
13
|
13
296-83913-00-00 Collar, Lever 1．カラー，レバー １; |
296-83913-00-00 |
US $2.20 |
||
|
14
|
14
5T9-82729-00-00 Bracket, Lock．ブラケツト，ロツク; |
5T9-82729-00-00 |
US $13.18 |
||
|
15
|
15
92907-05200-00 Washer．ワツシヤ; |
92907-05200-00 |
from US $1.36 |
||
|
16
|
16
985-07050-30-00
Screw, Pan Head
．スクリユ，パンヘツド; |
985-07050-30-00 |
— | ||
| replacement | |||||
|
16
|
16
98517-05030-00 Screw, Pan Head．スクリユ，パンヘツド; |
98517-05030-00 |
from US $1.22 |
||
|
17
|
17
95707-05300-00 Nut, Flange．ナツト，フランジ; |
95707-05300-00 |
from US $1.42 |
||
|
18
|
18
98507-05035-00 Screw, Pan Head．スクリユ，パンヘツド; |
98507-05035-00 |
from US $1.42 |
||
|
19
|
19
2T5-83980-00-00 Front Stop Switch Assy．フロントストツプスイツチアセンブリ; |
2T5-83980-00-00 |
US $37.58 |
||
| replacement | |||||
|
19
|
19
395-83980-09-00 Front Stop Switch Assy．フロントストツプスイツチアセンブリ; |
395-83980-09-00 |
from US $28.79 |
||
|
20
|
20
4GL-8254J-00-00 Collar, Special．カラー，スペシヤル; |
4GL-8254J-00-00 |
US $1.62 |
||
|
21
|
21
4GL-26185-00-00 Cam 1．カム １; |
4GL-26185-00-00 |
US $6.88 |
||
|
22
|
22
4GL-82558-00-00 Washer．ワツシヤ; |
4GL-82558-00-00 |
US $1.62 |
||
|
23
|
23
4GL-82113-00-00 Screw．スクリユ; |
4GL-82113-00-00 |
from US $1.46 |
||
