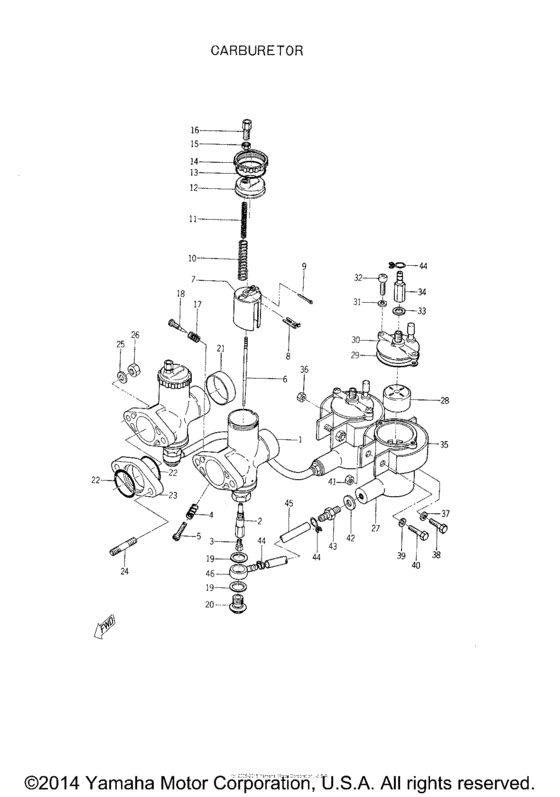

Carburetor Diagram Yamaha TD1/ TD2/ TD3
- Year
- 1964
- Sales region
- USA
- Engine Capacity
- 1000
- Model
- TD1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
144-14110-00-00
Mixing Asy 1
|
144-14110-00-00 |
— | ||
| replacement | |||||
|
1
|
1
177-14110-00-00
NOZZLE,MAIN
|
177-14110-00-00 |
— | ||
|
2
|
2
144-14141-43-00
Nozzle, Main
|
144-14141-43-00 |
— | ||
| replacement | |||||
|
2
|
2
145-14141-34-00
Nozzle, Main
|
145-14141-34-00 |
— | ||
|
3
|
3
137-14143-42-00 Jet, Main #210 (210)#210 210 |
137-14143-42-00 |
from US $11.95 |
||
| replacement | |||||
|
3
|
3
137-14143-42-A1 Jet, Main #210 (210)#210 210 |
137-14143-42-A1 |
from US $12.94 |
||
|
3
|
3
137-14143-46-00
Jet, Main
|
137-14143-46-00 |
— | ||
| replacement | |||||
|
3
|
3
137-14143-46-A1 Jet, Main (#230) |
137-14143-46-A1 |
from US $11.12 |
||
|
3
|
3
137-14143-40-00 Jet, Main |
137-14143-40-00 |
from US $12.15 |
||
| replacement | |||||
|
3
|
3
137-14143-40-A1 Jet, Main #200 |
137-14143-40-A1 |
from US $9.44 |
||
|
3
|
3
137-14143-44-00 Jet, Main (#220)220 220 |
137-14143-44-00 |
from US $12.96 |
||
| replacement | |||||
|
3
|
3
137-14143-44-A1 Jet, Main 220 (220)220 220 |
137-14143-44-A1 |
from US $9.44 |
||
|
3
|
3
137-14143-36-00 Jet, Main |
137-14143-36-00 |
from US $10.75 |
||
| replacement | |||||
|
3
|
3
137-14143-36-A1 Jet, Main (#180) |
137-14143-36-A1 |
from US $11.66 |
||
|
3
|
3
137-14143-38-00 Jet, Main |
137-14143-38-00 |
from US $9.32 |
||
| replacement | |||||
|
3
|
3
137-14143-38-A0 Jet, Main (#190) |
137-14143-38-A0 |
from US $10.13 |
||
|
4
|
4
143-14133-00-00 Spring, Throttle Stop |
143-14133-00-00 |
US $9.63 |
||
| replacement | |||||
|
4
|
4
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
5
|
5
143-14121-00-00
Screw, Thrtl Stop
|
143-14121-00-00 |
— | ||
|
6
|
6
143-14116-03-00
Needle
8F3-2 |
143-14116-03-00 |
— | ||
|
7
|
7
143-14112-52-00
Valve, Throttle
2.5 |
143-14112-52-00 |
— | ||
|
8
|
8
143-14137-00-00
Clip
|
143-14137-00-00 |
— | ||
|
9
|
9
914-01100-15-00
Pin, Cotter
|
914-01100-15-00 |
— | ||
|
10
|
10
143-14131-00-00
Spring, Thrtl Valve 1
|
143-14131-00-00 |
— | ||
|
11
|
11
143-14132-00-00
Spring, Thrtl Valve
|
143-14132-00-00 |
— | ||
| replacement | |||||
|
11
|
11
156-14131-01-00
Spring, Thrtl Valve
|
156-14131-01-00 |
— | ||
|
12
|
12
143-14158-00-00
Top, Mixing Chamber
|
143-14158-00-00 |
— | ||
|
13
|
13
143-14147-00-00
O-Ring
|
143-14147-00-00 |
— | ||
| replacement | |||||
|
13
|
13
184-14147-00-00
NUT,CABLE ADJ
|
184-14147-00-00 |
— | ||
|
14
|
14
143-14168-00-00
Cap, Mixing Chamber
|
143-14168-00-00 |
— | ||
|
15
|
15
143-14161-00-00
Nut, Cable Adjusting
|
143-14161-00-00 |
— | ||
| replacement | |||||
|
15
|
15
127-14161-00-00 Nut, Cable Adjusting |
127-14161-00-00 |
from US $4.96 |
||
|
16
|
16
143-14124-00-00
Cable Adjust Screw Set
|
143-14124-00-00 |
— | ||
| replacement | |||||
|
16
|
16
12G-14106-00-00 Cble Adjust Screw Set |
12G-14106-00-00 |
from US $11.79 |
||
|
17
|
17
143-14134-00-00
Spring, Air Adjusting
|
143-14134-00-00 |
— | ||
|
18
|
18
137-14123-00-00
Screw, Air Adjusting
|
137-14123-00-00 |
— | ||
|
19
|
19
143-14165-00-00
Gasket, Holding Bolt
16-20-1 |
143-14165-00-00 |
— | ||
|
20
|
20
144-14162-00-00
Bolt, Holding
|
144-14162-00-00 |
— | ||
|
21
|
21
144-14157-00-00
Cover, Mixing
|
144-14157-00-00 |
— | ||
|
22
|
22
932-10330-35-00
O-Ring
1.8-32.5 |
932-10330-35-00 |
— | ||
|
23
|
23
156-14114-00-00
Bar, Throttle
|
156-14114-00-00 |
— | ||
|
24
|
24
145-13558-00-00
Bolt, Stud
|
145-13558-00-00 |
— | ||
|
25
|
25
929-01081-00-00
Washer, Spring
|
929-01081-00-00 |
— | ||
| replacement | |||||
|
25
|
25
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
26
|
26
928-01081-00-00 Nut |
928-01081-00-00 |
US $1.42 |
||
| replacements | |||||
|
26
|
26
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
26
|
26
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
|
27
|
27
144-14180-00-00
Float Chamber Assy
|
144-14180-00-00 |
— | ||
|
28
|
28
143-14185-00-00
Float
|
143-14185-00-00 |
— | ||
| replacement | |||||
|
28
|
28
136-14185-00-00
PIPE,TENTION
|
136-14185-00-00 |
— | ||
|
29
|
29
143-14184-00-00
Gasket,float Chmbr
|
143-14184-00-00 |
— | ||
| replacement | |||||
|
29
|
29
136-14184-00-00
FLOAT
|
136-14184-00-00 |
— | ||
|
30
|
30
143-14182-00-00
Cover, Float Chamber
|
143-14182-00-00 |
— | ||
|
31
|
31
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
31
|
31
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
32
|
32
923-01040-12-00
Screw
|
923-01040-12-00 |
— | ||
|
33
|
33
144-14198-00-00
Gasket, Float Chamber
8-14-2 |
144-14198-00-00 |
— | ||
|
34
|
34
144-14188-00-00
Connector, Float
|
144-14188-00-00 |
— | ||
|
35
|
35
145-14491-00-00
Holder, Float Chamber
|
145-14491-00-00 |
— | ||
|
36
|
36
928-01061-00-00 Nut, Hexagon |
928-01061-00-00 |
US $1.07 |
||
| replacement | |||||
|
36
|
36
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
37
|
37
92901-06100-00 Washer, Spring |
92901-06100-00 |
US $0.99 |
||
| replacement | |||||
|
37
|
37
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
38
|
38
912-01060-30-00 Bolt |
912-01060-30-00 |
US $1.07 |
||
| replacement | |||||
|
38
|
38
97017-06030-00 Bolt |
97017-06030-00 |
from US $1.07 |
||
|
39
|
39
92901-06100-00 Washer, Spring |
92901-06100-00 |
US $0.99 |
||
| replacement | |||||
|
39
|
39
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
40
|
40
912-01060-35-00 Bolt, Hexagon |
912-01060-35-00 |
US $2.41 |
||
| replacement | |||||
|
40
|
40
970-14060-35-00 Bolt, Hexagon |
970-14060-35-00 |
from US $2.41 |
||
|
41
|
41
928-01061-00-00 Nut, Hexagon |
928-01061-00-00 |
US $1.07 |
||
| replacement | |||||
|
41
|
41
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
42
|
42
144-14199-00-00
Gasket, Connector
10-15-1 |
144-14199-00-00 |
— | ||
|
43
|
43
144-14189-00-00
Connector, Float Pipe
|
144-14189-00-00 |
— | ||
|
44
|
44
144-14159-00-00 Clip |
144-14159-00-00 |
US $1.28 |
||
| replacement | |||||
|
44
|
44
90467-11106-00 Clip |
90467-11106-00 |
from US $1.39 |
||
|
45
|
45
145-14149-00-00
Pipe, Float
|
145-14149-00-00 |
— | ||
|
46
|
46
150-14167-00-00
Connector, Banjo
|
150-14167-00-00 |
— | ||
