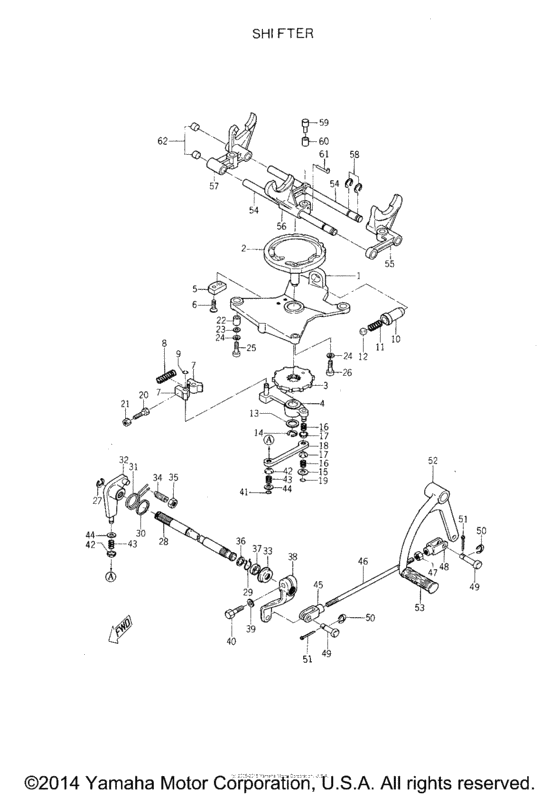

Shift shaft Diagram Yamaha TD1/ TD2/ TD3
- Year
- 1964
- Sales region
- USA
- Engine Capacity
- 1000
- Model
- TD1
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
156-18351-00-00
Plate, Cam Fitting
|
156-18351-00-00 |
— | ||
| replacement | |||||
|
1
|
1
170-18351-00-00
Plate, Cam Fitting
|
170-18351-00-00 |
— | ||
|
2
|
2
152-18331-00-00
Plate, Shift Cam
|
152-18331-00-00 |
— | ||
|
3
|
3
156-18333-00-00
Plate, Working
|
156-18333-00-00 |
— | ||
|
4
|
4
156-18180-00-00
Pawl Holder Assembly
|
156-18180-00-00 |
— | ||
|
5
|
5
150-18352-00-00
Plate, Pawl
|
150-18352-00-00 |
— | ||
|
6
|
6
927-01040-12-00
Screw, Flat Head
|
927-01040-12-00 |
— | ||
| replacement | |||||
|
6
|
6
926-01040-12-00
Screw
|
926-01040-12-00 |
— | ||
|
7
|
7
150-18182-00-00
Pawl, Shifter
|
150-18182-00-00 |
— | ||
|
8
|
8
150-18183-00-00
Spring, Compression
|
150-18183-00-00 |
— | ||
| replacement | |||||
|
8
|
8
905-01060-26-00
Spring, Compression
|
905-01060-26-00 |
— | ||
|
9
|
9
150-18189-00-00
Clip, Pawl Lock
|
150-18189-00-00 |
— | ||
|
10
|
10
150-18587-00-00
Bush, Stopper
|
150-18587-00-00 |
— | ||
|
11
|
11
152-18557-00-00
Spring, Compression
|
152-18557-00-00 |
— | ||
| replacement | |||||
|
11
|
11
905-01160-98-00
Spring, Compression
|
905-01160-98-00 |
— | ||
|
12
|
12
93513-32008-00 Ball 13/3213/32 13/32in. |
93513-32008-00 |
US $2.55 |
||
|
13
|
13
150-18334-00-09
Shim, Shifter Cam
10.2-18-0.7,0.8,0.9, |
150-18334-00-09 |
— | ||
|
14
|
14
93430-08006-00 Circlip |
93430-08006-00 |
from US $1.42 |
||
| replacement | |||||
|
14
|
14
99001-08600-00 Circlip |
99001-08600-00 |
from US $1.52 |
||
|
15
|
15
150-18338-00-00
Washer, Plain
6.3-14-1 |
150-18338-00-00 |
— | ||
| replacement | |||||
|
15
|
15
902-01060-46-00
Washer, Plate
6.3-14-1 |
902-01060-46-00 |
— | ||
|
16
|
16
150-18337-00-00
Spring, Compression
|
150-18337-00-00 |
— | ||
| replacement | |||||
|
16
|
16
905-01050-21-00
Spring, Compression
|
905-01050-21-00 |
— | ||
|
17
|
17
150-18336-00-00
Washer, Spec''l Shap
|
150-18336-00-00 |
— | ||
| replacements | |||||
|
17
|
17
902-09060-83-00
Washer, Spec''l Shap
|
902-09060-83-00 |
— | ||
|
17
|
17
150-18336-01-00
New Genuine Part
|
150-18336-01-00 |
— | ||
|
18
|
18
150-18335-00-00
Link, Shift
|
150-18335-00-00 |
— | ||
|
19
|
19
150-18189-00-00
Clip, Pawl Lock
|
150-18189-00-00 |
— | ||
|
20
|
20
912-01060-18-00 Bolt |
912-01060-18-00 |
US $1.07 |
||
| replacement | |||||
|
20
|
20
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.16 |
||
|
21
|
21
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
22
|
22
918-00020-15-00 Pin, Dowel |
918-00020-15-00 |
US $1.07 |
||
| replacements | |||||
|
22
|
22
99530-10114-00 Pin, Dowel |
99530-10114-00 |
from US $2.02 |
||
|
22
|
22
995-10101-14-00
Pin, Dowel
|
995-10101-14-00 |
— | ||
|
23
|
23
92901-06200-00 Washer, Plain |
92901-06200-00 |
from US $1.07 |
||
| replacement | |||||
|
23
|
23
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.18 |
||
|
24
|
24
92901-06100-00 Washer, Spring |
92901-06100-00 |
US $0.99 |
||
| replacement | |||||
|
24
|
24
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
25
|
25
92501-06030-00 Screw, Pan Head |
92501-06030-00 |
from US $1.35 |
||
| replacement | |||||
|
25
|
25
97885-06030-00 Screw, Pan Head |
97885-06030-00 |
from US $1.52 |
||
|
26
|
26
92901-06100-00 Washer, Spring |
92901-06100-00 |
US $0.99 |
||
| replacement | |||||
|
26
|
26
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
27
|
27
93430-10015-00 Circlip |
93430-10015-00 |
from US $2.41 |
||
|
28
|
28
150-18125-00-00
Shaft, Change
|
150-18125-00-00 |
— | ||
|
29
|
29
150-18135-00-00
Clip
|
150-18135-00-00 |
— | ||
|
30
|
30
150-18137-00-00
Washer, Change Shaft
12.5-26-1 |
150-18137-00-00 |
— | ||
| replacement | |||||
|
30
|
30
902-01121-86-00
Washer, Plate
12.5-26-1 |
902-01121-86-00 |
— | ||
|
31
|
31
150-18124-00-00
Spring, Torsion
|
150-18124-00-00 |
— | ||
| replacement | |||||
|
31
|
31
905-08402-09-00
Spring, Torsion
|
905-08402-09-00 |
— | ||
|
32
|
32
150-18121-00-00
Shift Lever Assembly
|
150-18121-00-00 |
— | ||
| replacement | |||||
|
32
|
32
150-18120-00-00
Shift Lever Assembly
|
150-18120-00-00 |
— | ||
|
33
|
33
150-18129-00-00
Cover, Change Shaft
|
150-18129-00-00 |
— | ||
|
34
|
34
150-18133-00-00
Screw, Spec''l Shape
|
150-18133-00-00 |
— | ||
| replacement | |||||
|
34
|
34
901-49100-45-00
Screw, Spec''l Shape
|
901-49100-45-00 |
— | ||
|
35
|
35
150-18134-00-00
Nut, Hexagon
|
150-18134-00-00 |
— | ||
| replacement | |||||
|
35
|
35
901-70100-44-00
Nut, Hexagon
|
901-70100-44-00 |
— | ||
|
36
|
36
150-18138-00-00
Washer, Change Shaft 2
12.3-18-0.2 |
150-18138-00-00 |
— | ||
| replacement | |||||
|
36
|
36
90201-12168-00
Washer, Plate (12.3-18-0.2) (15
12.3-18-0.2 |
90201-12168-00 |
— | ||
|
37
|
37
931-02120-01-00 Oil SealSD 12-22-7 |
931-02120-01-00 |
US $4.53 |
||
| replacements | |||||
|
37
|
37
931-02123-21-00 Oil SealSD 12-22-7 |
931-02123-21-00 |
from US $4.86 |
||
|
37
|
37
93102-12106-00 Oil Seal (Sd 12-22-5 Hs)SD 12-22-7 |
93102-12106-00 |
from US $3.72 |
||
|
38
|
38
150-18133-00-00
Screw, Spec''l Shape
|
150-18133-00-00 |
— | ||
| replacement | |||||
|
38
|
38
901-49100-45-00
Screw, Spec''l Shape
|
901-49100-45-00 |
— | ||
|
39
|
39
92901-06100-00 Washer, Spring |
92901-06100-00 |
US $0.99 |
||
| replacement | |||||
|
39
|
39
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
40
|
40
91101-06020-00 Bolt |
91101-06020-00 |
US $1.07 |
||
| replacement | |||||
|
40
|
40
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.16 |
||
|
41
|
41
150-18189-00-00
Clip, Pawl Lock
|
150-18189-00-00 |
— | ||
|
42
|
42
150-18336-00-00
Washer, Spec''l Shap
|
150-18336-00-00 |
— | ||
| replacements | |||||
|
42
|
42
902-09060-83-00
Washer, Spec''l Shap
|
902-09060-83-00 |
— | ||
|
42
|
42
150-18336-01-00
New Genuine Part
|
150-18336-01-00 |
— | ||
|
43
|
43
150-18337-00-00
Spring, Compression
|
150-18337-00-00 |
— | ||
| replacement | |||||
|
43
|
43
905-01050-21-00
Spring, Compression
|
905-01050-21-00 |
— | ||
|
44
|
44
150-18338-00-00
Washer, Plain
|
150-18338-00-00 |
— | ||
| replacement | |||||
|
44
|
44
902-01060-46-00
Washer, Plate
|
902-01060-46-00 |
— | ||
|
45
|
45
144-18116-00-00
Joint, Change Rod 1
|
144-18116-00-00 |
— | ||
|
46
|
46
144-18115-00-00
Rod, Change
|
144-18115-00-00 |
— | ||
|
47
|
47
928-03083-00-00 Nut |
928-03083-00-00 |
US $1.42 |
||
| replacement | |||||
|
47
|
47
95380-08700-00 Nut |
95380-08700-00 |
from US $1.52 |
||
|
48
|
48
144-18117-00-00
Joint, Change Rod 2
|
144-18117-00-00 |
— | ||
|
49
|
49
144-18118-00-00
Pin, Spec''l Shape
|
144-18118-00-00 |
— | ||
| replacement | |||||
|
49
|
49
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
50
|
50
934-30060-05-00
Circlip
|
934-30060-05-00 |
— | ||
| replacement | |||||
|
50
|
50
99001-06600-00 Circlip |
99001-06600-00 |
from US $1.66 |
||
|
51
|
51
91401-20018-00 Pin, Cotter |
91401-20018-00 |
US $1.56 |
||
| replacement | |||||
|
51
|
51
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.66 |
||
|
52
|
52
144-18111-00-00
Pedal,shift
|
144-18111-00-00 |
— | ||
| replacement | |||||
|
52
|
52
144-18111-00-93
PIN,SPECL SHAPE
|
144-18111-00-93 |
— | ||
|
53
|
53
132-18113-00-00 Cover, Shift Pedal |
132-18113-00-00 |
US $4.11 |
||
| replacement | |||||
|
53
|
53
132-18113-01-00 Cover, Shift Pedal |
132-18113-01-00 |
from US $2.02 |
||
|
54
|
54
150-18318-00-00
Shaft, Shifter
|
150-18318-00-00 |
— | ||
|
55
|
55
152-18313-00-00
Fork, Shift 3
|
152-18313-00-00 |
— | ||
|
56
|
56
152-18311-00-00
Fork, Shift 1
|
152-18311-00-00 |
— | ||
|
57
|
57
152-18312-00-00
Fork, Shift 2
|
152-18312-00-00 |
— | ||
|
58
|
58
93430-08006-00 Circlip |
93430-08006-00 |
from US $1.42 |
||
| replacement | |||||
|
58
|
58
99001-08600-00 Circlip |
99001-08600-00 |
from US $1.52 |
||
|
59
|
59
145-18327-00-00
Pin, Cam Follower
|
145-18327-00-00 |
— | ||
|
60
|
60
136-18551-00-00
Pin, Spec''l Shape
|
136-18551-00-00 |
— | ||
| replacement | |||||
|
60
|
60
902-49050-35-00
Pin, Spec''l Shape
|
902-49050-35-00 |
— | ||
|
61
|
61
150-18317-00-00
Pin, Spec''l Shape
|
150-18317-00-00 |
— | ||
| replacement | |||||
|
61
|
61
902-49020-03-00
Pin, Spec''l Shape
|
902-49020-03-00 |
— | ||
|
62
|
62
150-18328-00-00 Plug, Blind |
150-18328-00-00 |
US $1.62 |
||
| replacement | |||||
|
62
|
62
903-34100-06-00
Plug, Straight
|
903-34100-06-00 |
— | ||
