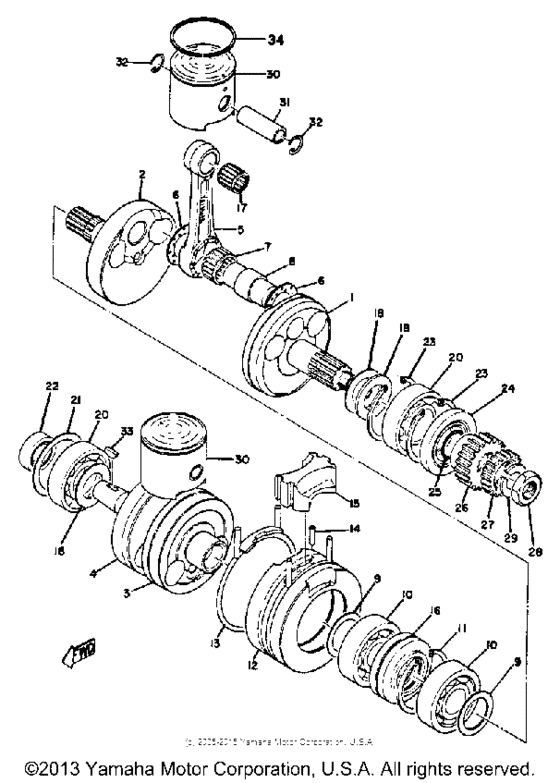

Crankshaft & Piston Diagram Yamaha TD1/ TD2/ TD3
- Year
- 1970
- Sales region
- USA
- Engine Capacity
- 200
- Model
- TD2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
170-11412-00-00
Crank 1
|
170-11412-00-00 |
— | ||
|
1
|
1
295-11400-00-00
Crankshaft Assembly
|
295-11400-00-00 |
— | ||
|
2
|
2
156-11422-01-00
Crank 2
|
156-11422-01-00 |
— | ||
|
3
|
3
156-11432-01-00
Crank 2 (Lh)
|
156-11432-01-00 |
— | ||
|
4
|
4
170-11442-00-00
Crank 4
|
170-11442-00-00 |
— | ||
|
5
|
5
246-11651-00-00
Rod, Connecting
|
246-11651-00-00 |
— | ||
|
5
|
5
295-11651-00-00
Rod, Connecting
|
295-11651-00-00 |
— | ||
|
6
|
6
902-09240-73-00 Washer, Special Shape |
902-09240-73-00 |
from US $5.74 |
||
|
6
|
6
90209-22248-00 Washer, Special Shape |
90209-22248-00 |
from US $4.38 |
||
|
7
|
7
93310-422E7-00 Bearing, Cyl. #10Bearing, cylindrical |
93310-422E7-00 |
from US $11.76 |
||
|
7
|
7
933-10424-17-00
Bearing
|
933-10424-17-00 |
— | ||
|
8
|
8
156-11681-00-00
Pin, Crank 1
|
156-11681-00-00 |
— | ||
|
8
|
8
295-11681-00-00
Pin, Crank 1
|
295-11681-00-00 |
— | ||
|
9
|
9
156-11564-00-06
Shim, Crank 4
U.R. |
156-11564-00-06 |
— | ||
|
9
|
9
156-11564-00-04
Shim, Crank 4 (25-44-0.5)
25-44-0.5 U.R. |
156-11564-00-04 |
— | ||
|
9
|
9
156-11564-00-03
Shim, Crank 4 (25-44-0.3)
25-44-0.3 U.R. |
156-11564-00-03 |
— | ||
|
10
|
10
933-06206-22-00
Bearing
|
933-06206-22-00 |
— | ||
| replacement | |||||
|
10
|
10
933-06206-27-00 Bearing (5X5) |
933-06206-27-00 |
from US $32.32 |
||
|
11
|
11
934-20620-70-00
Circlip
|
934-20620-70-00 |
— | ||
| replacement | |||||
|
11
|
11
99009-62500-00 Circlip |
99009-62500-00 |
from US $2.08 |
||
|
12
|
12
246-11511-00-00
Cover, Crank
|
246-11511-00-00 |
— | ||
|
13
|
13
246-11512-00-00
Seal, Crank Cover
|
246-11512-00-00 |
— | ||
|
14
|
14
93604-18058-00
Pin, Dowel
|
93604-18058-00 |
— | ||
| replacement | |||||
|
14
|
14
93604-18251-00
Pin, Dowel(4Ss)
|
93604-18251-00 |
— | ||
|
15
|
15
246-11541-00-00
Metal, Filler
|
246-11541-00-00 |
— | ||
|
16
|
16
145-11515-01-00
Seal, Labyrinth 1
|
145-11515-01-00 |
— | ||
|
17
|
17
933-10216-L2-00 Bearing, Cylindrical |
933-10216-L2-00 |
from US $28.57 |
||
|
18
|
18
156-11562-00-05
Shim, Crank 2
U.R. |
156-11562-00-05 |
— | ||
|
18
|
18
156-11562-00-07
Shim, Crank 2
U.R. |
156-11562-00-07 |
— | ||
|
18
|
18
156-11562-00-04
Shim, Crank 2
U.R. |
156-11562-00-04 |
— | ||
|
19
|
19
156-11561-00-00
Shim, Crank 1
|
156-11561-00-00 |
— | ||
|
20
|
20
93306-30536-00 Bearing (8R9) |
93306-30536-00 |
from US $25.08 |
||
|
21
|
21
156-11563-00-00 Shim, Crank 3 |
156-11563-00-00 |
from US $8.93 |
||
|
22
|
22
931-03201-10-00 Oil Seal, Sw-Type |
931-03201-10-00 |
from US $13.88 |
||
|
23
|
23
934-20620-70-00
Circlip
|
934-20620-70-00 |
— | ||
| replacement | |||||
|
23
|
23
99009-62500-00 Circlip |
99009-62500-00 |
from US $2.08 |
||
|
24
|
24
931-03350-15-00
Oil Seal
|
931-03350-15-00 |
— | ||
|
25
|
25
93210-25071-00 O-Ring |
93210-25071-00 |
from US $2.08 |
||
|
26
|
26
177-16111-01-00
Gear, Pri Drive
|
177-16111-01-00 |
— | ||
|
27
|
27
170-13188-00-00
Gear, Drive
|
170-13188-00-00 |
— | ||
|
28
|
28
90170-16182-00 Nut |
90170-16182-00 |
from US $3.12 |
||
| replacement | |||||
|
28
|
28
90170-16425-00 Nut |
90170-16425-00 |
from US $2.70 |
||
|
29
|
29
92901-16100-00 Washer |
92901-16100-00 |
from US $3.40 |
||
| replacement | |||||
|
29
|
29
92907-16100-00 Washer(Jn5) |
92907-16100-00 |
from US $3.74 |
||
|
29
|
29
90170-16182-00 Nut |
90170-16182-00 |
from US $3.12 |
||
| replacement | |||||
|
29
|
29
90170-16425-00 Nut |
90170-16425-00 |
from US $2.70 |
||
|
30
|
30
240-11631-00-96
Piston Std (Std)
|
240-11631-00-96 |
— | ||
|
31
|
31
137-11633-00-00
Pin, Piston
|
137-11633-00-00 |
— | ||
| replacement | |||||
|
31
|
31
137-11633-10-00 Pin, Piston |
137-11633-10-00 |
from US $18.22 |
||
|
32
|
32
93450-17025-00 Circlip |
93450-17025-00 |
from US $1.70 |
||
|
33
|
33
90280-04005-00
Key, Woodruff
|
90280-04005-00 |
— | ||
|
34
|
34
240-11611-00-00
Ring, Piston Std
|
240-11611-00-00 |
— | ||
