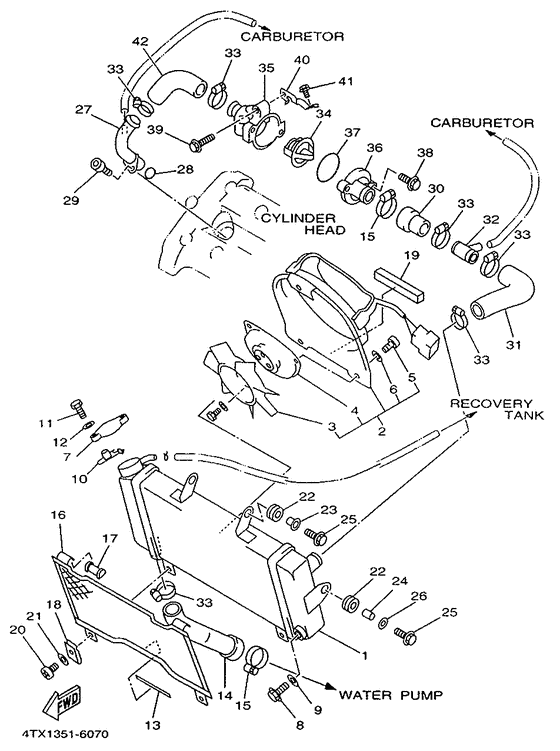

Radiator & hose Diagram Yamaha TDM850
- Year
- 1998
- Colour
- Deep Purplish Blue Metallic C (DPBMC; 0564)
- Model code
- 5AR2
- Sales region
- Austria (020)
- Engine Capacity
- 850
- Model
- TDM850
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
4TX-12461-00-00
Radiator Assy
|
4TX-12461-00-00 |
— | ||
|
02
|
02
4TX-12405-00-00
Blower Assy
|
4TX-12405-00-00 |
— | ||
| replacement | |||||
|
02
|
02
1UF-12405-00-00 Blower Assembly |
1UF-12405-00-00 |
US $769.57 |
||
|
03
|
03
1UF-12611-00-00 Fan |
1UF-12611-00-00 |
US $137.09 |
||
|
04
|
04
26H-12630-00-00 Motor Assy |
26H-12630-00-00 |
from US $296.73 |
||
|
05
|
05
985-07050-08-00 Screw, Pan Head |
985-07050-08-00 |
from US $1.07 |
||
|
06
|
06
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
07
|
07
4FL-12462-20-00
Cap, Radiator
|
4FL-12462-20-00 |
— | ||
|
08
|
08
1AA-12561-00-00 Plug,drain Cock |
1AA-12561-00-00 |
from US $13.18 |
||
|
09
|
09
1AA-12435-00-00 Gasket |
1AA-12435-00-00 |
from US $4.58 |
||
|
10
|
10
1KT-12437-00-00 Stopper |
1KT-12437-00-00 |
from US $11.62 |
||
|
11
|
11
97007-05012-00 Bolt |
97007-05012-00 |
US $1.52 |
||
| replacement | |||||
|
11
|
11
97017-05012-00 Bolt |
97017-05012-00 |
from US $1.52 |
||
|
12
|
12
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.18 |
||
|
13
|
13
3VD-12465-00-00 Damper, Radiator |
3VD-12465-00-00 |
from US $2.41 |
||
|
14
|
14
4TX-12578-00-00
Hose 3
|
4TX-12578-00-00 |
— | ||
|
15
|
15
90450-38040-00 Hose Clamp Assy |
90450-38040-00 |
from US $4.99 |
||
|
16
|
16
1UF-12467-00-00 Cover, Radiator |
1UF-12467-00-00 |
US $165.80 |
||
|
17
|
17
1UF-12435-00-00 Gasket |
1UF-12435-00-00 |
from US $4.52 |
||
|
18
|
18
901-83050-24-00
Nut, Spring
|
901-83050-24-00 |
— | ||
| replacement | |||||
|
18
|
18
901-83051-A0-00 Nut, Spring |
901-83051-A0-00 |
from US $1.66 |
||
|
19
|
19
4TX-12465-00-00 Damper, Radiator |
4TX-12465-00-00 |
from US $2.72 |
||
|
20
|
20
985-07050-10-00
Screw, Pan Head
|
985-07050-10-00 |
— | ||
| replacement | |||||
|
20
|
20
985-17050-10-00 Screw, Pan Head |
985-17050-10-00 |
from US $1.36 |
||
|
21
|
21
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.18 |
||
|
22
|
22
904-80153-63-00 Grommet |
904-80153-63-00 |
from US $1.66 |
||
|
23
|
23
90387-0700G-00 Collar |
90387-0700G-00 |
from US $4.11 |
||
| replacement | |||||
|
23
|
23
90387-0614M-00 Collar |
90387-0614M-00 |
from US $4.11 |
||
|
24
|
24
903-87073-90-00
Collar
|
903-87073-90-00 |
— | ||
| replacement | |||||
|
24
|
24
90387-07020-00 Collar |
90387-07020-00 |
from US $1.98 |
||
|
25
|
25
95807-06025-00 Bolt, Flange |
95807-06025-00 |
from US $1.18 |
||
| replacements | |||||
|
25
|
25
958-17060-25-00 Bolt, Flange |
958-17060-25-00 |
from US $1.18 |
||
|
25
|
25
95822-06025-00 Bolt, Flange |
95822-06025-00 |
from US $0.97 |
||
|
26
|
26
90201-06071-00 Washer, Plate |
90201-06071-00 |
from US $2.38 |
||
| replacement | |||||
|
26
|
26
90201-063J2-00 Washer, Plate(36Y) |
90201-063J2-00 |
from US $3.12 |
||
|
27
|
27
4NX-12482-00-00 Pipe 2 |
4NX-12482-00-00 |
US $76.68 |
||
|
28
|
28
932-10184-17-00 O-Ring |
932-10184-17-00 |
from US $1.94 |
||
|
29
|
29
91317-06016-00 Bolt |
91317-06016-00 |
from US $1.18 |
||
|
30
|
30
4NX-12576-00-00
Hose 1
|
4NX-12576-00-00 |
— | ||
|
31
|
31
4NX-12577-00-00
Hose 2
|
4NX-12577-00-00 |
— | ||
|
32
|
32
4NX-12481-00-00
Pipe 1
|
4NX-12481-00-00 |
— | ||
|
33
|
33
90450-32015-00 Hose Clamp Assy |
90450-32015-00 |
from US $4.39 |
||
|
34
|
34
1AE-12410-00-00 Thermostat Assy |
1AE-12410-00-00 |
from US $61.20 |
||
| replacement | |||||
|
34
|
34
1AE-12410-01-00 Thermostat Assy |
1AE-12410-01-00 |
from US $42.01 |
||
|
35
|
35
4NX-12417-00-00
Housing, Thermostat
|
4NX-12417-00-00 |
— | ||
| replacement | |||||
|
35
|
35
4NX-12417-01-00
Housing, Thermostat
|
4NX-12417-01-00 |
— | ||
|
36
|
36
4NX-12413-00-00 Cover, Thermostat |
4NX-12413-00-00 |
from US $32.22 |
||
|
37
|
37
932-10490-46-00 O-Ring |
932-10490-46-00 |
from US $1.94 |
||
|
38
|
38
950-27060-20-00 Bolt, Flange |
950-27060-20-00 |
from US $1.52 |
||
|
39
|
39
95027-06025-00 Bolt, Flange |
95027-06025-00 |
from US $1.52 |
||
| replacement | |||||
|
39
|
39
90105-060A0-00 Bolt, Washer Based(4Kg) |
90105-060A0-00 |
from US $2.22 |
||
|
40
|
40
4TX-1244E-00-00
Bracket 1
|
4TX-1244E-00-00 |
— | ||
|
41
|
41
950-27060-14-00 Bolt, Flange |
950-27060-14-00 |
from US $1.42 |
||
| replacement | |||||
|
41
|
41
950-22060-14-00 Bolt, Flange |
950-22060-14-00 |
from US $1.52 |
||
|
42
|
42
4NX-12579-00-00
Hose 4
|
4NX-12579-00-00 |
— | ||
