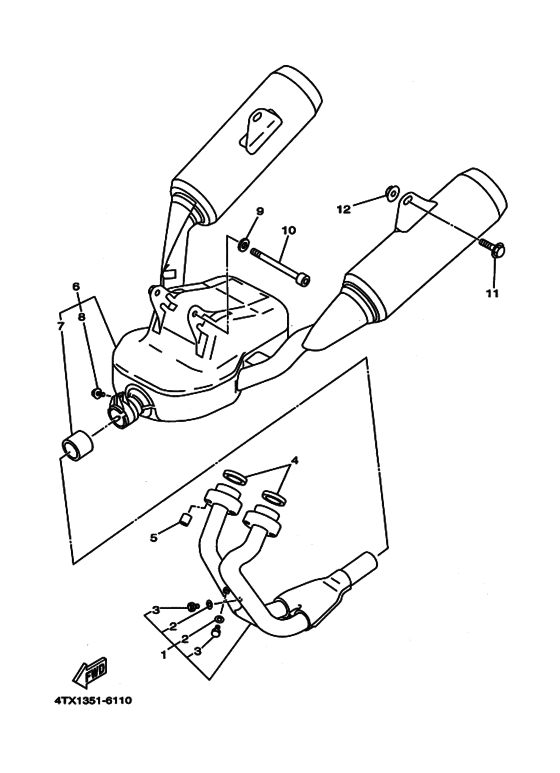

Exhaust Diagram Yamaha TDM850
- Year
- 1998
- Colour
- Light Gray Metallic 3 (LGM3; 0137)
- Model code
- 5GG1
- Sales region
- Japan (010)
- Engine Capacity
- 850
- Color Variant
- B
- Model
- TDM850
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4TX-14602-01-00
Exhaust Pipe Comp
エギゾーストパイプコンプ; |
4TX-14602-01-00 |
— | ||
|
2
|
2
929-90066-00-00 Washer, Plain (646)．ワツシヤ，プレート; |
929-90066-00-00 |
from US $0.90 |
||
|
3
|
3
90101-06576-00 Bolt．ボルト，ヘキサゴン; |
90101-06576-00 |
from US $1.65 |
||
|
4
|
4
3VD-14613-00-00
Gasket, Exhaust Pipe
ガスケツト，エキゾーストパイプ; |
3VD-14613-00-00 |
— | ||
| replacement | |||||
|
4
|
4
3VD-14613-01-00 Gasket, Exhaust Pipeガスケツト，エキゾーストパイプ; |
3VD-14613-01-00 |
from US $5.84 |
||
|
5
|
5
90179-08345-00 Nut, Spec''l Shape |
90179-08345-00 |
US $6.73 |
||
| replacement | |||||
|
5
|
5
90179-08004-00 Nut |
90179-08004-00 |
from US $5.56 |
||
|
6
|
6
5GG-14710-00-00
Muffler Assy 1
マフラーアセンブリ １; |
5GG-14710-00-00 |
— | ||
|
7
|
7
3VD-14755-00-00 Gasket, Silencer．ガスケツト，サイレンサ; |
3VD-14755-00-00 |
from US $17.15 |
||
|
8
|
8
90149-08300-00 Screw．スクリユ; |
90149-08300-00 |
US $2.09 |
||
|
9
|
9
90201-08326-00 Washer (853)ワツシヤ，プレート; |
90201-08326-00 |
from US $1.65 |
||
| replacement | |||||
|
9
|
9
90201-08877-00
Washer (853)
ワツシヤ，プレート; |
90201-08877-00 |
— | ||
|
10
|
10
91317-08110-00 Boltボルト; |
91317-08110-00 |
from US $9.86 |
||
|
11
|
11
901-05102-71-00 Bolt, Flangeボルト，ワツシヤベースドヘツド; |
901-05102-71-00 |
from US $4.36 |
||
|
12
|
12
957-07105-00-00 Nut, Flange |
957-07105-00-00 |
from US $1.05 |
||
| replacement | |||||
|
12
|
12
90179-10394-00 Nut, Flange |
90179-10394-00 |
from US $1.28 |
||
