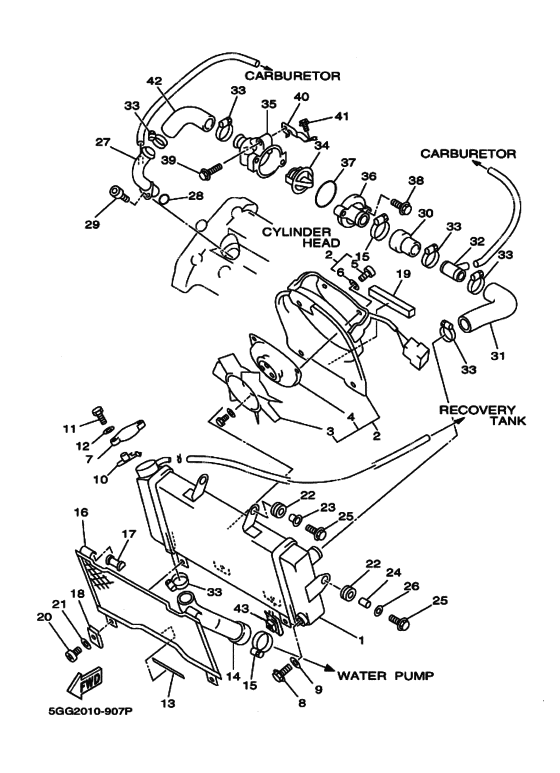

Radiator & hose Diagram Yamaha TDM850
- Year
- 1998
- Colour
- Light Gray Metallic 3 (LGM3; 0137)
- Model code
- 5GG1
- Sales region
- Japan (010)
- Engine Capacity
- 850
- Color Variant
- B
- Model
- TDM850
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4TX-12461-00-00
Radiator Assy
ラジエタアセンブリ; |
4TX-12461-00-00 |
— | ||
|
2
|
2
4TX-12405-00-00
Blower Assy
ブロワーアセンブリ; |
4TX-12405-00-00 |
— | ||
| replacement | |||||
|
2
|
2
1UF-12405-00-00 Blower Assemblyブロワーアセンブリ; |
1UF-12405-00-00 |
US $769.57 |
||
|
3
|
3
1UF-12611-00-00 Fan．フアン; |
1UF-12611-00-00 |
US $137.09 |
||
|
4
|
4
26H-12630-00-00 Motor Assy．モーターアセンブリ; |
26H-12630-00-00 |
from US $296.73 |
||
|
5
|
5
985-07050-08-00 Screw, Pan Head．スクリユ，パンヘツド; |
985-07050-08-00 |
from US $1.07 |
||
|
6
|
6
92990-05600-00 Washer, Plate．ワツシヤ，プレート; |
92990-05600-00 |
from US $1.07 |
||
|
7
|
7
4FL-12462-00-00 Cap, Radiatorキヤツプ，ラジエタ; |
4FL-12462-00-00 |
from US $36.80 |
||
| replacement | |||||
|
7
|
7
1B3-12462-00-00 Cap, Radiatorキヤツプ，ラジエタ; |
1B3-12462-00-00 |
from US $38.78 |
||
|
8
|
8
1AA-12561-00-00 Plug,drain Cockプラグ，ドレンコツク; |
1AA-12561-00-00 |
from US $13.18 |
||
|
9
|
9
1AA-12435-00-00 Gasket |
1AA-12435-00-00 |
from US $4.58 |
||
|
10
|
10
1KT-12437-00-00 Stopper |
1KT-12437-00-00 |
from US $11.62 |
||
|
11
|
11
97007-05012-00 Boltボルト; |
97007-05012-00 |
US $1.52 |
||
| replacement | |||||
|
11
|
11
97017-05012-00 Boltボルト; |
97017-05012-00 |
from US $1.52 |
||
|
12
|
12
92907-05600-00 Washer, Plateワツシヤ，プレート; |
92907-05600-00 |
from US $1.18 |
||
|
13
|
13
3VD-12465-00-00 Damper, Radiatorダンパ，ラジエタ; |
3VD-12465-00-00 |
from US $2.41 |
||
|
14
|
14
4TX-12578-00-00
Hose 3
ホース ３; |
4TX-12578-00-00 |
— | ||
|
15
|
15
90450-38040-00 Hose Clamp Assyホースクランプアセンブリ; |
90450-38040-00 |
from US $4.99 |
||
|
16
|
16
1UF-12467-00-00 Cover, Radiatorカバー，ラジエタ; |
1UF-12467-00-00 |
US $165.80 |
||
|
17
|
17
1UF-12435-00-00 Gasket |
1UF-12435-00-00 |
from US $4.52 |
||
|
18
|
18
901-83050-24-00
Nut, Spring
|
901-83050-24-00 |
— | ||
| replacement | |||||
|
18
|
18
901-83051-A0-00 Nut, Spring |
901-83051-A0-00 |
from US $1.66 |
||
|
19
|
19
4TX-12465-00-00 Damper, Radiatorダンパ，ラジエタ; |
4TX-12465-00-00 |
from US $2.72 |
||
|
20
|
20
985-07050-10-00
Screw, Pan Head
|
985-07050-10-00 |
— | ||
| replacement | |||||
|
20
|
20
985-17050-10-00 Screw, Pan Head |
985-17050-10-00 |
from US $1.36 |
||
|
21
|
21
92907-05600-00 Washer, Plateワツシヤ，プレート; |
92907-05600-00 |
from US $1.18 |
||
|
22
|
22
904-80153-63-00 Grommet |
904-80153-63-00 |
from US $1.66 |
||
|
23
|
23
90387-0700G-00 Collarカラー; |
90387-0700G-00 |
from US $4.11 |
||
| replacement | |||||
|
23
|
23
90387-0614M-00 Collarカラー; |
90387-0614M-00 |
from US $4.11 |
||
|
24
|
24
90387-0714B-00 Collarカラー; |
90387-0714B-00 |
from US $1.98 |
||
| replacement | |||||
|
24
|
24
90387-07020-00 Collarカラー; |
90387-07020-00 |
from US $1.98 |
||
|
25
|
25
95807-06025-00 Bolt, Flange |
95807-06025-00 |
from US $1.18 |
||
| replacements | |||||
|
25
|
25
958-17060-25-00 Bolt, Flange |
958-17060-25-00 |
from US $1.18 |
||
|
25
|
25
95822-06025-00 Bolt, Flange |
95822-06025-00 |
from US $0.97 |
||
|
26
|
26
90201-06071-00 Washer, Plateワツシヤ，プレート; |
90201-06071-00 |
from US $2.38 |
||
| replacement | |||||
|
26
|
26
90201-063J2-00 Washer, Plate(36Y)ワツシヤ，プレート; |
90201-063J2-00 |
from US $3.12 |
||
|
27
|
27
4NX-12482-00-00 Pipe 2 |
4NX-12482-00-00 |
US $76.68 |
||
|
28
|
28
932-10184-17-00 O-Ring |
932-10184-17-00 |
from US $1.94 |
||
|
29
|
29
91317-06016-00 Boltボルト; |
91317-06016-00 |
from US $1.18 |
||
|
30
|
30
4NX-12576-00-00
Hose 1
ホース １; |
4NX-12576-00-00 |
— | ||
|
31
|
31
4NX-12577-00-00
Hose 2
ホース ２; |
4NX-12577-00-00 |
— | ||
|
32
|
32
4NX-12481-00-00
Pipe 1
|
4NX-12481-00-00 |
— | ||
|
33
|
33
904-50320-51-00
Hose Clamp Assy
ホースクランプアセンブリ; |
904-50320-51-00 |
— | ||
| replacement | |||||
|
33
|
33
90450-32015-00 Hose Clamp Assyホースクランプアセンブリ; |
90450-32015-00 |
from US $4.39 |
||
|
34
|
34
1AE-12410-00-00 Thermostat Assyサーモスタツトアセンブリ; |
1AE-12410-00-00 |
from US $61.20 |
||
| replacement | |||||
|
34
|
34
1AE-12410-01-00 Thermostat Assyサーモスタツトアセンブリ; |
1AE-12410-01-00 |
from US $42.01 |
||
|
35
|
35
4NX-12417-01-00
Housing, Thermostat
ハウジング，サーモスタツト; |
4NX-12417-01-00 |
— | ||
|
36
|
36
4NX-12413-00-00 Cover, Thermostatカバー，サーモスタツト; |
4NX-12413-00-00 |
from US $32.22 |
||
|
37
|
37
932-10490-46-00 O-Ring |
932-10490-46-00 |
from US $1.94 |
||
|
38
|
38
950-27060-20-00 Bolt, Flangeボルト，フランジ; |
950-27060-20-00 |
from US $1.52 |
||
|
39
|
39
95027-06025-00 Bolt, Flangeボルト，フランジ; |
95027-06025-00 |
from US $1.52 |
||
| replacement | |||||
|
39
|
39
90105-060A0-00 Bolt, Washer Based(4Kg)ボルト，フランジ; |
90105-060A0-00 |
from US $2.22 |
||
|
40
|
40
4TX-1244E-00-00
Bracket 1
|
4TX-1244E-00-00 |
— | ||
|
41
|
41
950-27060-14-00 Bolt, Flangeボルト，フランジ; |
950-27060-14-00 |
from US $1.42 |
||
| replacement | |||||
|
41
|
41
950-22060-14-00 Bolt, Flangeボルト，フランジ; |
950-22060-14-00 |
from US $1.52 |
||
|
42
|
42
4NX-12579-00-00
Hose 4
ホース ４; |
4NX-12579-00-00 |
— | ||
|
43
|
43
1AA-12535-00-00 Plateナット，プレート; |
1AA-12535-00-00 |
from US $11.33 |
||
