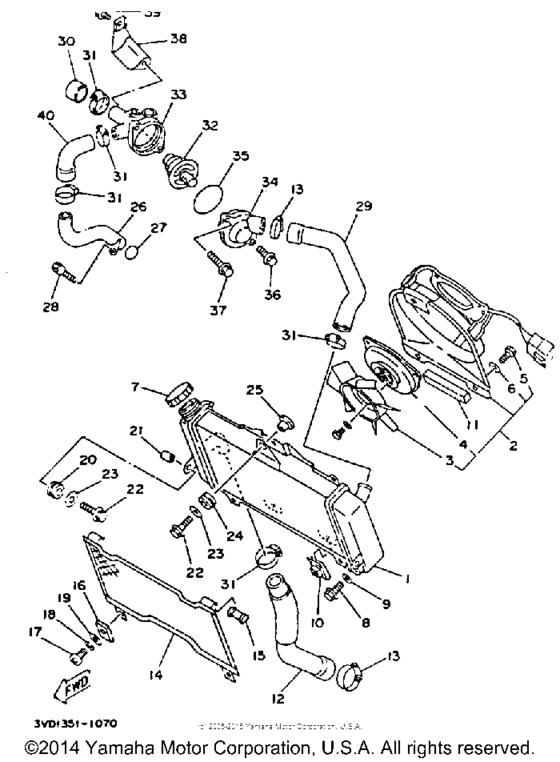

Radiator Diagram Yamaha TDM850
- Year
- 1992
- Sales region
- USA
- Engine Capacity
- 850
- Model
- TDM850
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3VD-12461-00-00 Radiator Assembly |
3VD-12461-00-00 |
US $842.09 |
||
|
2
|
2
1UF-12405-00-00 Blower Assembly |
1UF-12405-00-00 |
US $769.57 |
||
|
3
|
3
1UF-12611-00-00 Fan |
1UF-12611-00-00 |
US $137.09 |
||
|
4
|
4
26H-12630-00-00 Motor Assy |
26H-12630-00-00 |
from US $296.73 |
||
|
5
|
5
985-80050-10-00
Screw, Pan Head
|
985-80050-10-00 |
— | ||
| replacement | |||||
|
5
|
5
97885-05010-00 Screw, Pan Head |
97885-05010-00 |
from US $1.18 |
||
|
6
|
6
929-01056-00-00
Washer
|
929-01056-00-00 |
— | ||
| replacements | |||||
|
6
|
6
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
6
|
6
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.18 |
||
|
7
|
7
26H-12462-00-00
Cap, Radiator
|
26H-12462-00-00 |
— | ||
| replacement | |||||
|
7
|
7
1B3-12462-00-00 Cap, Radiator |
1B3-12462-00-00 |
from US $38.78 |
||
|
8
|
8
1AA-12561-00-00 Plug,drain Cock |
1AA-12561-00-00 |
from US $13.18 |
||
|
9
|
9
1AA-12435-00-00 Gasket |
1AA-12435-00-00 |
from US $4.58 |
||
|
10
|
10
1AA-12535-00-00 Plate |
1AA-12535-00-00 |
from US $11.33 |
||
|
11
|
11
3VD-12465-00-00 Damper, Radiator |
3VD-12465-00-00 |
from US $2.41 |
||
|
12
|
12
3VD-12578-00-00
Hose 3
|
3VD-12578-00-00 |
— | ||
|
13
|
13
90450-38040-00 Hose Clamp Assy |
90450-38040-00 |
from US $4.99 |
||
|
14
|
14
1UF-12467-00-00 Cover, Radiator |
1UF-12467-00-00 |
US $165.80 |
||
|
15
|
15
1UF-12435-00-00 Gasket |
1UF-12435-00-00 |
from US $4.52 |
||
|
16
|
16
901-83050-24-00
Nut, Spring
|
901-83050-24-00 |
— | ||
| replacement | |||||
|
16
|
16
901-83051-A0-00 Nut, Spring |
901-83051-A0-00 |
from US $1.66 |
||
|
17
|
17
985-06050-10-00
Screw, Pan Head
|
985-06050-10-00 |
— | ||
| replacement | |||||
|
17
|
17
985-17050-10-00 Screw, Pan Head |
985-17050-10-00 |
from US $1.36 |
||
|
18
|
18
929-06051-00-00
Washer, Spring
|
929-06051-00-00 |
— | ||
| replacement | |||||
|
18
|
18
92907-05100-00 Washer, Spring |
92907-05100-00 |
from US $1.56 |
||
|
19
|
19
929-06056-00-00
Washer, Plate
|
929-06056-00-00 |
— | ||
| replacement | |||||
|
19
|
19
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.18 |
||
|
20
|
20
904-80153-63-00 Grommet |
904-80153-63-00 |
from US $1.66 |
||
|
21
|
21
90387-074W0-00 Collar2UJ |
90387-074W0-00 |
from US $1.84 |
||
| replacement | |||||
|
21
|
21
90387-061V1-00 Collar(2Uj)2UJ |
90387-061V1-00 |
from US $1.84 |
||
|
22
|
22
95816-06025-00 Bolt, Flange (20X) |
95816-06025-00 |
US $1.07 |
||
| replacements | |||||
|
22
|
22
958-17060-25-00 Bolt, Flange |
958-17060-25-00 |
from US $1.18 |
||
|
22
|
22
95822-06025-00 Bolt, Flange |
95822-06025-00 |
from US $0.97 |
||
|
23
|
23
90201-06697-00 Washer, Plate |
90201-06697-00 |
from US $2.08 |
||
|
24
|
24
90480-18276-00 Grommet |
90480-18276-00 |
from US $1.56 |
||
|
25
|
25
90387-07037-00 Collar |
90387-07037-00 |
from US $3.54 |
||
|
26
|
26
3VD-12482-00-00
Pipe 2
|
3VD-12482-00-00 |
— | ||
| replacements | |||||
|
26
|
26
3VD-12482-10-00
Pipe 2
|
3VD-12482-10-00 |
— | ||
|
26
|
26
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
27
|
27
932-10184-17-00 O-Ring |
932-10184-17-00 |
from US $1.94 |
||
|
28
|
28
913-16060-16-00
Bolt
|
913-16060-16-00 |
— | ||
| replacement | |||||
|
28
|
28
91317-06016-00 Bolt |
91317-06016-00 |
from US $1.18 |
||
|
29
|
29
3VD-12577-00-00
Hose 2
|
3VD-12577-00-00 |
— | ||
|
30
|
30
3VD-12567-00-00
Cap, Water
|
3VD-12567-00-00 |
— | ||
|
31
|
31
904-50320-51-00
Hose Clamp Assy
|
904-50320-51-00 |
— | ||
| replacement | |||||
|
31
|
31
90450-32015-00 Hose Clamp Assy |
90450-32015-00 |
from US $4.39 |
||
|
32
|
32
1AE-12410-00-00 Thermostat Assy |
1AE-12410-00-00 |
from US $61.20 |
||
| replacement | |||||
|
32
|
32
1AE-12410-01-00 Thermostat Assy |
1AE-12410-01-00 |
from US $42.01 |
||
|
33
|
33
1UF-12417-01-00
Housing, Thermostat
|
1UF-12417-01-00 |
— | ||
|
34
|
34
1UF-12413-00-00 Cover, Thermostat |
1UF-12413-00-00 |
from US $59.55 |
||
|
35
|
35
932-10490-46-00 O-Ring |
932-10490-46-00 |
from US $1.94 |
||
|
36
|
36
95026-06020-00 Bolt, Flange |
95026-06020-00 |
from US $1.42 |
||
| replacement | |||||
|
36
|
36
950-27060-20-00 Bolt, Flange |
950-27060-20-00 |
from US $1.52 |
||
|
37
|
37
950-26060-30-00
Bolt, Flange
|
950-26060-30-00 |
— | ||
| replacements | |||||
|
37
|
37
95027-06030-00 Bolt, Flange |
95027-06030-00 |
from US $1.52 |
||
|
37
|
37
95817-06030-00 Bolt, Flange |
95817-06030-00 |
from US $1.07 |
||
|
38
|
38
3VD-1244E-00-00
Bracket 1
|
3VD-1244E-00-00 |
— | ||
|
39
|
39
95026-06010-00 Bolt, Flange |
95026-06010-00 |
from US $1.07 |
||
| replacement | |||||
|
39
|
39
950-27060-10-00 Bolt, Flange(4My) |
950-27060-10-00 |
from US $1.18 |
||
|
40
|
40
3VD-12579-00-00
Hose, 4
|
3VD-12579-00-00 |
— | ||
