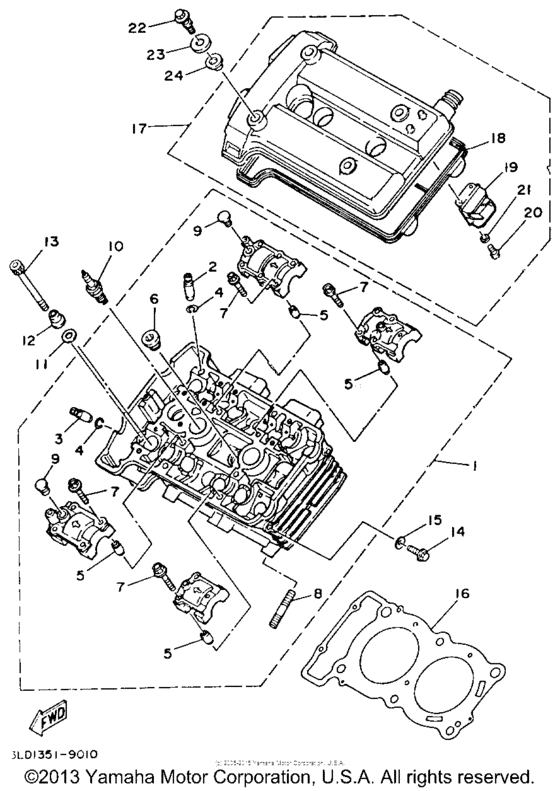

Cylinder head Diagram Yamaha TDM850
- Year
- 1993
- Sales region
- USA
- Engine Capacity
- 850
- Model
- TDM850
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3VD-11101-00-00
Cylinder Head Assembly
|
3VD-11101-00-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
2
|
2
3LD-11133-10-00 Guide, Intake Valve 1 O/sO/S |
3LD-11133-10-00 |
from US $43.78 |
||
|
3
|
3
3LD-11134-10-00 Guide, Exhaust Valve 1 O/sO/S |
3LD-11134-10-00 |
from US $43.78 |
||
|
4
|
4
93440-10109-00 Circlip |
93440-10109-00 |
from US $1.70 |
||
|
5
|
5
995-10080-16-00
P1N, Dowel
|
995-10080-16-00 |
— | ||
| replacement | |||||
|
5
|
5
918-08160-23-00 Pin, Dowel(3Xw) |
918-08160-23-00 |
from US $1.66 |
||
|
6
|
6
90340-18101-00 Plug, Straight Screw |
90340-18101-00 |
from US $7.51 |
||
|
7
|
7
90105-06153-00 Bolt, Flange |
90105-06153-00 |
from US $1.70 |
||
|
8
|
8
90116-08321-00 Bolt, Stud (3R3) |
90116-08321-00 |
from US $4.11 |
||
| replacements | |||||
|
8
|
8
90116-08394-00 Bolt, Stud |
90116-08394-00 |
from US $1.81 |
||
|
8
|
8
90116-08564-00 Bolt, Stud |
90116-08564-00 |
from US $4.11 |
||
|
9
|
9
90338-10150-00 Plug |
90338-10150-00 |
from US $1.81 |
||
|
10
|
10
NGK-DPR9E-A9-00 Dpr9Ea9 Ngk Splug |
NGK-DPR9E-A9-00 |
US $3.67 |
||
| replacement | |||||
|
10
|
10
DPR-9EA90-00-00 BPR6ES NGK SPLUG 4 |
DPR-9EA90-00-00 |
US $3.67 |
||
|
11
|
11
90201-103M4-00 Washer, Plate |
90201-103M4-00 |
from US $1.84 |
||
|
12
|
12
90179-10414-00 Nut |
90179-10414-00 |
from US $7.65 |
||
| replacement | |||||
|
12
|
12
901-79100-26-00 Nut |
901-79100-26-00 |
from US $10.26 |
||
|
13
|
13
91316-06150-00 Bolt,socket Head |
91316-06150-00 |
from US $5.89 |
||
| replacement | |||||
|
13
|
13
91317-06150-00 Bolt |
91317-06150-00 |
from US $9.07 |
||
|
14
|
14
950-23080-12-00
Bolt, Flange (Small Head)
|
950-23080-12-00 |
— | ||
| replacement | |||||
|
14
|
14
95024-08012-00 Bolt, Flange (Small Head) |
95024-08012-00 |
from US $1.42 |
||
|
15
|
15
90430-08143-00 Gasket |
90430-08143-00 |
from US $1.81 |
||
|
16
|
16
3VD-11181-01-00 Gasket,cyl Head 1 |
3VD-11181-01-00 |
from US $84.80 |
||
| replacement | |||||
|
16
|
16
4NX-11181-00-00 Gasket, Cylinder Head 1 |
4NX-11181-00-00 |
from US $84.97 |
||
|
17
|
17
3VD-Y1119-00-00
Cover Assembly, Cylinder Head
|
3VD-Y1119-00-00 |
— | ||
|
18
|
18
3LD-11193-00-00 Gskt,hd.cvr1 |
3LD-11193-00-00 |
from US $42.66 |
||
| replacements | |||||
|
18
|
18
3LD-11193-01-00 Gasket, Head Cover 1 |
3LD-11193-01-00 |
from US $45.98 |
||
|
18
|
18
3LD-11193-02-00 Gasket, head cover 1 |
3LD-11193-02-00 |
from US $45.13 |
||
|
19
|
19
3LD-11160-02-00
Breather Assembly
|
3LD-11160-02-00 |
— | ||
|
20
|
20
985-11040-06-00
Screw, Pan Head (98502-04006)
|
985-11040-06-00 |
— | ||
| replacements | |||||
|
20
|
20
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
20
|
20
985-17040-16-00 Screw, Pan Head |
985-17040-16-00 |
from US $1.52 |
||
|
21
|
21
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
21
|
21
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
22
|
22
90109-064F0-00 Bolt |
90109-064F0-00 |
from US $5.24 |
||
|
23
|
23
902-09112-62-00 Washer |
902-09112-62-00 |
from US $2.50 |
||
|
24
|
24
2GH-1111G-00-00 Rubber, Mount 1 |
2GH-1111G-00-00 |
from US $6.24 |
||
