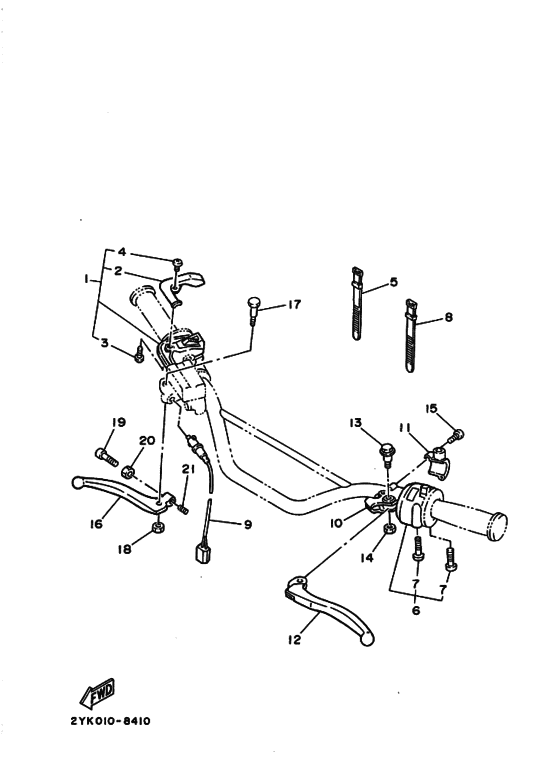

Handle switch & lever Diagram Yamaha TDR250
- Year
- 1988
- Colour
- Yamaha Black (YB; 0033)
- Model code
- 2YK1
- Sales region
- Japan (010)
- Engine Capacity
- 250
- Color Variant
- A
- Model
- TDR250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
47J-83976-00-00
Switch, Handle 1
スイツチ， ハンドル １; |
47J-83976-00-00 |
— | ||
| replacement | |||||
|
1
|
1
47J-83976-01-00
Switch, Handle 1
スイツチ， ハンドル １; |
47J-83976-01-00 |
— | ||
|
2
|
2
33G-83956-00-00
Cap 1
．キヤツプ １; |
33G-83956-00-00 |
— | ||
| replacement | |||||
|
2
|
2
33G-83956-01-00
Cap 1
．キヤツプ １; |
33G-83956-01-00 |
— | ||
|
3
|
3
98506-05020-00 Screw, Pan Head．スクリユ， パンヘツド; |
98506-05020-00 |
from US $1.84 |
||
| replacement | |||||
|
3
|
3
98517-05020-00 Screw, Pan Head．スクリユ， パンヘツド; |
98517-05020-00 |
from US $1.70 |
||
|
4
|
4
98906-04008-00 Screw, Bind．スクリユ， バインド; |
98906-04008-00 |
from US $1.56 |
||
| replacement | |||||
|
4
|
4
98907-04008-00 Screw, Binding．スクリユ， バインド; |
98907-04008-00 |
from US $1.56 |
||
|
5
|
5
437-83936-00-00
Band, Switch Cord
．バンド， スイツチコード; |
437-83936-00-00 |
— | ||
| replacement | |||||
|
5
|
5
437-83936-01-00 Band, Switch Cord．バンド， スイツチコード; |
437-83936-01-00 |
from US $1.81 |
||
|
6
|
6
2YK-83972-00-00
Switch, Handle 4
スイツチ， ハンドル ４; |
2YK-83972-00-00 |
— | ||
|
7
|
7
985-06050-30-00
Screw, Pan Head
．スクリユ， パンヘツド; |
985-06050-30-00 |
— | ||
| replacement | |||||
|
7
|
7
98517-05030-00 Screw, Pan Head．スクリユ， パンヘツド; |
98517-05030-00 |
from US $1.22 |
||
|
8
|
8
437-83936-00-00
Band, Switch Cord
バンド， スイツチコード; |
437-83936-00-00 |
— | ||
| replacement | |||||
|
8
|
8
437-83936-01-00 Band, Switch Cordバンド， スイツチコード; |
437-83936-01-00 |
from US $1.81 |
||
|
9
|
9
2U2-83980-30-00 Stop Switch Asy |
2U2-83980-30-00 |
from US $32.06 |
||
| replacement | |||||
|
9
|
9
3YF-83980-00-00 Front Stop Switch Assy |
3YF-83980-00-00 |
from US $41.45 |
||
|
10
|
10
1LN-82911-00-00 Holder, Lever 1ホルダ， レバー １; |
1LN-82911-00-00 |
from US $36.90 |
||
|
11
|
11
33G-82913-00-00
Holder, Lever Lower 1
ホルダ， レバーロワ １; |
33G-82913-00-00 |
— | ||
| replacement | |||||
|
11
|
11
33G-82913-01-00 Holder, Lever Lower 1ホルダ， レバーロワ １; |
33G-82913-01-00 |
from US $18.03 |
||
|
12
|
12
5Y1-83912-00-00 Lever 1レバー １; |
5Y1-83912-00-00 |
from US $23.52 |
||
| replacement | |||||
|
12
|
12
3FY-83912-02-00 Lever 1レバー １; |
3FY-83912-02-00 |
from US $23.52 |
||
|
13
|
13
90109-06798-00 Bolt |
90109-06798-00 |
from US $2.36 |
||
| replacement | |||||
|
13
|
13
90109-06799-00 Bolt (2Yk1) |
90109-06799-00 |
from US $3.60 |
||
|
14
|
14
956-16061-00-00
Nut (17W)
ナツト， Ｕ; |
956-16061-00-00 |
— | ||
| replacement | |||||
|
14
|
14
95617-06100-00 Nut, Uナツト， Ｕ; |
95617-06100-00 |
from US $1.39 |
||
|
15
|
15
98506-05020-00 Screw, Pan Headスクリユ， パンヘツド; |
98506-05020-00 |
from US $1.84 |
||
| replacement | |||||
|
15
|
15
98517-05020-00 Screw, Pan Headスクリユ， パンヘツド; |
98517-05020-00 |
from US $1.70 |
||
|
16
|
16
43F-83922-00-00 Lever 2レバー ２; |
43F-83922-00-00 |
from US $26.28 |
||
| replacement | |||||
|
16
|
16
3FY-83922-01-00 Lever 2レバー ２; |
3FY-83922-01-00 |
from US $20.71 |
||
|
17
|
17
90109-06577-00 Bolt |
90109-06577-00 |
from US $1.52 |
||
|
18
|
18
956-16061-00-00
Nut (17W)
ナツト， Ｕ; |
956-16061-00-00 |
— | ||
| replacement | |||||
|
18
|
18
95617-06100-00 Nut, Uナツト， Ｕ; |
95617-06100-00 |
from US $1.39 |
||
|
19
|
19
90149-06153-00 Screw |
90149-06153-00 |
from US $1.70 |
||
| replacement | |||||
|
19
|
19
90149-06131-00 Screw |
90149-06131-00 |
from US $2.08 |
||
|
20
|
20
90170-06010-00 Nut |
90170-06010-00 |
from US $2.35 |
||
|
21
|
21
90501-10312-00 Spring, Compressionスプリング， コンプレツシヨン; |
90501-10312-00 |
from US $1.66 |
||
