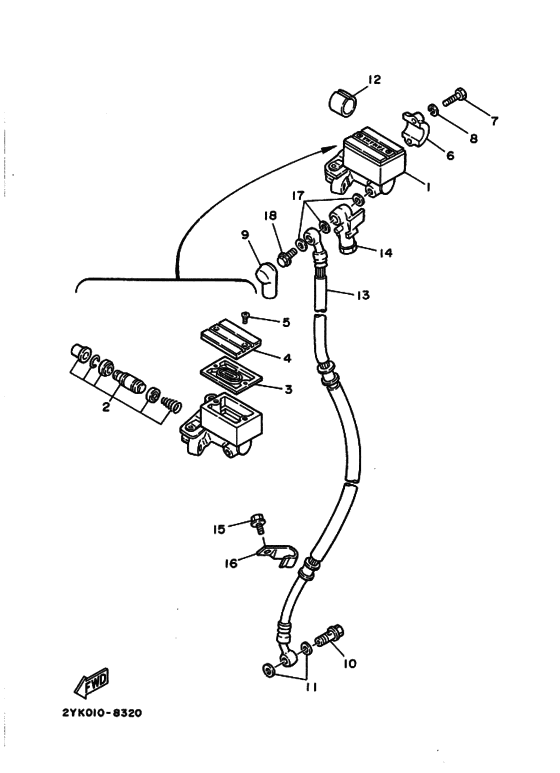

Front master cylinder Diagram Yamaha TDR250
- Year
- 1988
- Colour
- Faraway Blue (FWB; 00NJ)
- Model code
- 2YK1
- Sales region
- Japan (010)
- Engine Capacity
- 250
- Color Variant
- B
- Model
- TDR250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2GV-25850-01-00 Master Cylinder Assy |
2GV-25850-01-00 |
US $232.11 |
||
| replacement | |||||
|
1
|
1
3YF-2583T-00-00 Master Cylinder Assy |
3YF-2583T-00-00 |
US $232.11 |
||
|
2
|
2
4H7-W0041-00-00 Cylinder Kit, Master．シリンダキツト， マスタ; |
4H7-W0041-00-00 |
from US $65.02 |
||
|
3
|
3
4K0-25854-00-00
Diaphragm, Reservoir
．ダイヤフラム， リザーバ; |
4K0-25854-00-00 |
— | ||
| replacement | |||||
|
3
|
3
4HM-25854-00-00 Diaphragm, Reservoir．ダイヤフラム， リザーバ; |
4HM-25854-00-00 |
from US $17.48 |
||
|
4
|
4
2GV-25852-00-00 Cap, Reservoir．キヤツプ， リザーバ; |
2GV-25852-00-00 |
from US $25.79 |
||
| replacement | |||||
|
4
|
4
3GM-25852-02-00 Cap, Reservoir．キヤツプ， リザーバ; |
3GM-25852-02-00 |
from US $15.84 |
||
|
5
|
5
987-06040-12-00
Screw, Flat Head
．スクリユ， フラツトヘツド; |
987-06040-12-00 |
— | ||
| replacement | |||||
|
5
|
5
98707-04012-00 Screw, Flat Head．スクリユ， フラツトヘツド; |
98707-04012-00 |
from US $1.52 |
||
|
6
|
6
4L0-25867-00-00 Holderブラケツト， スマタシリンダ; |
4L0-25867-00-00 |
from US $18.42 |
||
|
7
|
7
97016-06025-00 Bolt |
97016-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
7
|
7
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.36 |
||
|
8
|
8
929-06061-00-00
Washer, Spring
ワツシヤ， スプリング; |
929-06061-00-00 |
— | ||
| replacement | |||||
|
8
|
8
92907-06100-00 Washer, Springワツシヤ， スプリング; |
92907-06100-00 |
from US $0.88 |
||
|
9
|
9
4L0-25862-00-00 Boot, Master Cylinderブーツ， マスタシリンダ; |
4L0-25862-00-00 |
from US $10.34 |
||
| replacement | |||||
|
9
|
9
4L0-25862-01-00 Boot, Master Cylinderブーツ， マスタシリンダ; |
4L0-25862-01-00 |
from US $10.34 |
||
|
10
|
10
904-01100-96-00
Bolt, Union
ボルト， ユニオン; |
904-01100-96-00 |
— | ||
| replacement | |||||
|
10
|
10
90401-10159-00 Bolt, Union(3Gm)ボルト， ユニオン; |
90401-10159-00 |
from US $3.26 |
||
|
11
|
11
902-01101-18-00 Washer, Plateワツシヤ， プレート; |
902-01101-18-00 |
from US $1.39 |
||
| replacement | |||||
|
11
|
11
90201-108J9-00 Washer, Plateワツシヤ， プレート; |
90201-108J9-00 |
US $1.39 |
||
|
12
|
12
90387-227H7-00 Collarカラー; |
90387-227H7-00 |
from US $1.70 |
||
|
13
|
13
2YK-25872-00-00
Hose, Brake 1
ホース， ブレーキ １; |
2YK-25872-00-00 |
— | ||
| replacement | |||||
|
13
|
13
999-99028-70-00
Brake Hose Set 2Yk2587201
ホース， ブレーキ １; |
999-99028-70-00 |
— | ||
|
14
|
14
2YK-25884-00-00
Valve, Proportioning
バルブ プロポーシヨニング; |
2YK-25884-00-00 |
— | ||
|
15
|
15
95023-06016-00 Bolt, Flange (Small Head)ボルト， フランジ; |
95023-06016-00 |
from US $1.56 |
||
| replacement | |||||
|
15
|
15
95024-06016-00 Bolt, Flangeボルト， フランジ; |
95024-06016-00 |
from US $1.56 |
||
|
16
|
16
2YK-25886-00-00 Holder, Brake Hoseホルド， ブレーキホース; |
2YK-25886-00-00 |
US $13.46 |
||
| replacement | |||||
|
16
|
16
3SX-25886-00-00
Holder, Brake Hose
ホルド， ブレーキホース; |
3SX-25886-00-00 |
— | ||
|
17
|
17
902-01101-18-00 Washer, Plateワツシヤ， プレート; |
902-01101-18-00 |
from US $1.39 |
||
| replacement | |||||
|
17
|
17
90201-108J9-00 Washer, Plateワツシヤ， プレート; |
90201-108J9-00 |
US $1.39 |
||
|
18
|
18
90401-10130-00
Bolt, Union
ボルト， ユニオン; |
90401-10130-00 |
— | ||
