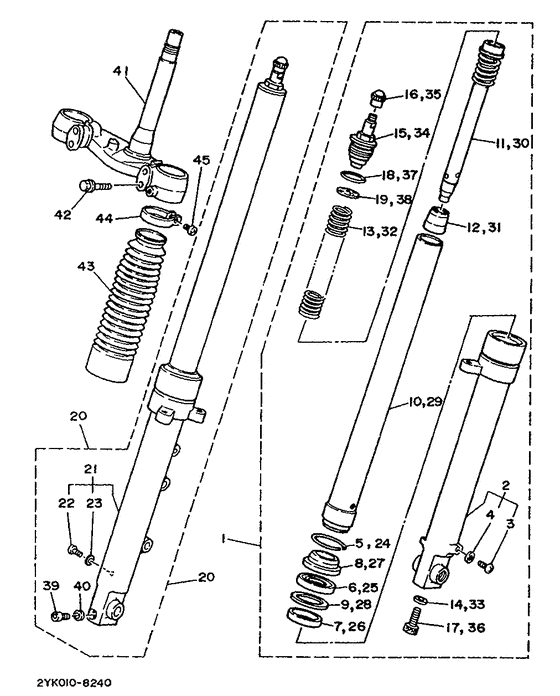

Front fork Diagram Yamaha TDR250
- Year
- 1988
- Colour
- Yamaha Black (YB; 0033)
- Model code
- 3CK1
- Sales region
- Germany (999)
- Engine Capacity
- 250
- Model
- TDR250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
2YK-23102-00-00
Front Fork Assy (L.h)
|
2YK-23102-00-00 |
— | ||
|
02
|
02
2YK-23126-00-00
Tube, Outer (L.h)
|
2YK-23126-00-00 |
— | ||
| replacement | |||||
|
02
|
02
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
03
|
03
4H7-23119-00-00
Screw, Pan Head
|
4H7-23119-00-00 |
— | ||
| replacements | |||||
|
03
|
03
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
03
|
03
985-11040-06-00
Screw, Pan Head (98502-04006)
|
985-11040-06-00 |
— | ||
|
04
|
04
122-23129-00-00 Gasket, Drain Plug |
122-23129-00-00 |
from US $3.26 |
||
|
05
|
05
3R4-23153-00-00 Ring, Snap |
3R4-23153-00-00 |
from US $5.81 |
||
|
06
|
06
2YK-23145-00-00 Oil Seal |
2YK-23145-00-00 |
US $28.76 |
||
|
07
|
07
2YK-23125-00-00 Metal, Slide 1 |
2YK-23125-00-00 |
from US $31.08 |
||
|
08
|
08
2YK-23144-00-00 Seal, Dust |
2YK-23144-00-00 |
US $28.76 |
||
|
09
|
09
4V2-23146-L0-00 Washer, Oil Seal |
4V2-23146-L0-00 |
from US $19.84 |
||
|
10
|
10
2YK-23110-00-00
Inner Tube Comp.1
|
2YK-23110-00-00 |
— | ||
|
11
|
11
2YK-23170-00-00
Cylinder Comp., Front Fork
|
2YK-23170-00-00 |
— | ||
| replacement | |||||
|
11
|
11
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
12
|
12
2YK-23173-00-00 Spindle, Taper |
2YK-23173-00-00 |
from US $31.88 |
||
|
13
|
13
2YK-23141-00-00
Spring, Front Fork
|
2YK-23141-00-00 |
— | ||
|
14
|
14
509-23158-L0-00 Gasket |
509-23158-L0-00 |
from US $4.03 |
||
|
15
|
15
2YK-23111-00-00
Bolt, Cap
|
2YK-23111-00-00 |
— | ||
|
16
|
16
509-23184-L0-00 Cap, Air Valve |
509-23184-L0-00 |
from US $9.81 |
||
|
17
|
17
278-23181-50-00
Bolt, Hexagon Socket Head
|
278-23181-50-00 |
— | ||
| replacement | |||||
|
17
|
17
3D8-23181-00-00 Bolt, Hexagon Socket Head |
3D8-23181-00-00 |
from US $5.41 |
||
|
18
|
18
1W4-23114-L0-00 Gasket |
1W4-23114-L0-00 |
from US $7.93 |
||
|
19
|
19
2YK-23149-00-00
Washer, Spring Upper
|
2YK-23149-00-00 |
— | ||
|
20
|
20
2YK-23103-00-00
Front Fork Assy (R.h)
|
2YK-23103-00-00 |
— | ||
| replacement | |||||
|
20
|
20
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
21
|
21
2YK-23136-00-00
Tube, Outer 2
|
2YK-23136-00-00 |
— | ||
|
22
|
22
4H7-23119-00-00
Screw, Pan Head
|
4H7-23119-00-00 |
— | ||
| replacements | |||||
|
22
|
22
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
22
|
22
985-11040-06-00
Screw, Pan Head (98502-04006)
|
985-11040-06-00 |
— | ||
|
23
|
23
122-23129-00-00 Gasket, Drain Plug |
122-23129-00-00 |
from US $3.26 |
||
|
24
|
24
3R4-23153-00-00 Ring, Snap |
3R4-23153-00-00 |
from US $5.81 |
||
|
25
|
25
2YK-23145-00-00 Oil Seal |
2YK-23145-00-00 |
US $28.76 |
||
|
26
|
26
2YK-23125-00-00 Metal, Slide 1 |
2YK-23125-00-00 |
from US $31.08 |
||
|
27
|
27
2YK-23144-00-00 Seal, Dust |
2YK-23144-00-00 |
US $28.76 |
||
|
28
|
28
4V2-23146-L0-00 Washer, Oil Seal |
4V2-23146-L0-00 |
from US $19.84 |
||
|
29
|
29
2YK-23110-00-00
Inner Tube Comp.1
|
2YK-23110-00-00 |
— | ||
|
30
|
30
2YK-23170-00-00
Cylinder Comp., Front Fork
|
2YK-23170-00-00 |
— | ||
| replacement | |||||
|
30
|
30
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
31
|
31
2YK-23173-00-00 Spindle, Taper |
2YK-23173-00-00 |
from US $31.88 |
||
|
32
|
32
2YK-23141-00-00
Spring, Front Fork
|
2YK-23141-00-00 |
— | ||
|
33
|
33
509-23158-L0-00 Gasket |
509-23158-L0-00 |
from US $4.03 |
||
|
34
|
34
2YK-23111-00-00
Bolt, Cap
|
2YK-23111-00-00 |
— | ||
|
35
|
35
509-23184-L0-00 Cap, Air Valve |
509-23184-L0-00 |
from US $9.81 |
||
|
36
|
36
278-23181-50-00
Bolt, Hexagon Socket Head
|
278-23181-50-00 |
— | ||
| replacement | |||||
|
36
|
36
3D8-23181-00-00 Bolt, Hexagon Socket Head |
3D8-23181-00-00 |
from US $5.41 |
||
|
37
|
37
1W4-23114-L0-00 Gasket |
1W4-23114-L0-00 |
from US $7.93 |
||
|
38
|
38
2YK-23149-00-00
Washer, Spring Upper
|
2YK-23149-00-00 |
— | ||
|
39
|
39
913-11080-40-00
Bolt, Hexagon Socket Head
|
913-11080-40-00 |
— | ||
| replacement | |||||
|
39
|
39
91314-08040-00 Bolt, Hexagon Socket Head |
91314-08040-00 |
from US $3.26 |
||
|
40
|
40
90201-08085-00 Washer, Plate |
90201-08085-00 |
from US $1.70 |
||
|
41
|
41
2YK-23340-00-00
Under Bracket Comp
|
2YK-23340-00-00 |
— | ||
|
42
|
42
95816-08035-00 Bolt, Flange(36R) |
95816-08035-00 |
from US $1.07 |
||
| replacement | |||||
|
42
|
42
95817-08035-00 Bolt, Flange |
95817-08035-00 |
from US $1.18 |
||
|
43
|
43
2YK-23191-00-00 BootCompetition yellow |
2YK-23191-00-00 |
US $157.50 |
||
|
44
|
44
1W4-23192-L0-00
Band
|
1W4-23192-L0-00 |
— | ||
|
45
|
45
92506-06010-00 Screw |
92506-06010-00 |
from US $1.07 |
||
| replacement | |||||
|
45
|
45
98507-06010-00 Screw, Pan Head |
98507-06010-00 |
from US $1.07 |
||
