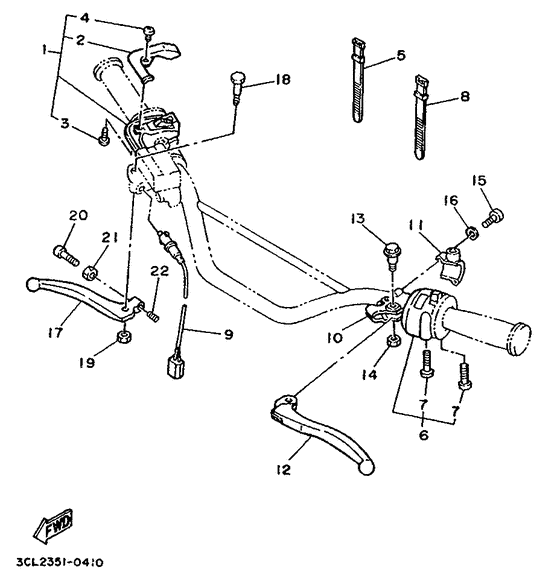

Handle switch & lever Diagram Yamaha TDR250
- Year
- 1990
- Colour
- Yamaha Black (YB; 0033)
- Model code
- 3CK2
- Sales region
- Europe (General) (999)
- Engine Capacity
- 250
- Model
- TDR250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
47J-83976-01-00
Switch, Handle 1
|
47J-83976-01-00 |
— | ||
|
02
|
02
33G-83956-01-00
Cap 1
|
33G-83956-01-00 |
— | ||
|
03
|
03
98506-05020-00 Screw, Pan Head |
98506-05020-00 |
from US $1.84 |
||
| replacement | |||||
|
03
|
03
98517-05020-00 Screw, Pan Head |
98517-05020-00 |
from US $1.70 |
||
|
04
|
04
98906-04008-00 Screw, Bind |
98906-04008-00 |
from US $1.56 |
||
| replacement | |||||
|
04
|
04
98907-04008-00 Screw, Binding |
98907-04008-00 |
from US $1.56 |
||
|
05
|
05
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
|
06
|
06
3CK-83972-00-00
Switch, Handle 4
|
3CK-83972-00-00 |
— | ||
|
07
|
07
985-06050-30-00
Screw, Pan Head
|
985-06050-30-00 |
— | ||
| replacement | |||||
|
07
|
07
98517-05030-00 Screw, Pan Head |
98517-05030-00 |
from US $1.22 |
||
|
08
|
08
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
|
09
|
09
2U2-83980-30-00 Stop Switch Asy |
2U2-83980-30-00 |
from US $32.06 |
||
| replacement | |||||
|
09
|
09
3YF-83980-00-00 Front Stop Switch Assy |
3YF-83980-00-00 |
from US $41.45 |
||
|
10
|
10
1LN-82911-00-00 Holder, Lever 1 |
1LN-82911-00-00 |
from US $36.90 |
||
|
11
|
11
33G-82913-00-00
Holder, Lever Lower 1
|
33G-82913-00-00 |
— | ||
| replacement | |||||
|
11
|
11
33G-82913-01-00 Holder, Lever Lower 1 |
33G-82913-01-00 |
from US $18.03 |
||
|
12
|
12
5Y1-83912-00-00 Lever 1 |
5Y1-83912-00-00 |
from US $23.52 |
||
| replacement | |||||
|
12
|
12
3FY-83912-02-00 Lever 1 |
3FY-83912-02-00 |
from US $23.52 |
||
|
13
|
13
90109-06799-00 Bolt (2Yk1) |
90109-06799-00 |
from US $3.60 |
||
|
14
|
14
956-16061-00-00
Nut (17W)
|
956-16061-00-00 |
— | ||
| replacement | |||||
|
14
|
14
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
15
|
15
98506-05020-00 Screw, Pan Head |
98506-05020-00 |
from US $1.84 |
||
| replacement | |||||
|
15
|
15
98517-05020-00 Screw, Pan Head |
98517-05020-00 |
from US $1.70 |
||
|
16
|
16
929-06051-00-00
Washer, Spring
|
929-06051-00-00 |
— | ||
| replacement | |||||
|
16
|
16
92907-05100-00 Washer, Spring |
92907-05100-00 |
from US $1.56 |
||
|
17
|
17
43F-83922-00-00 Lever 2 |
43F-83922-00-00 |
from US $26.28 |
||
| replacement | |||||
|
17
|
17
3FY-83922-01-00 Lever 2 |
3FY-83922-01-00 |
from US $20.71 |
||
|
18
|
18
90109-06577-00 Bolt |
90109-06577-00 |
from US $1.52 |
||
|
19
|
19
956-16061-00-00
Nut (17W)
|
956-16061-00-00 |
— | ||
| replacement | |||||
|
19
|
19
95617-06100-00 Nut, U |
95617-06100-00 |
from US $1.39 |
||
|
20
|
20
90149-06153-00 Screw |
90149-06153-00 |
from US $1.70 |
||
| replacement | |||||
|
20
|
20
90149-06131-00 Screw |
90149-06131-00 |
from US $1.81 |
||
|
21
|
21
90170-06010-00 Nut |
90170-06010-00 |
from US $2.08 |
||
|
22
|
22
90501-10312-00 Spring, Compression |
90501-10312-00 |
from US $1.66 |
||
