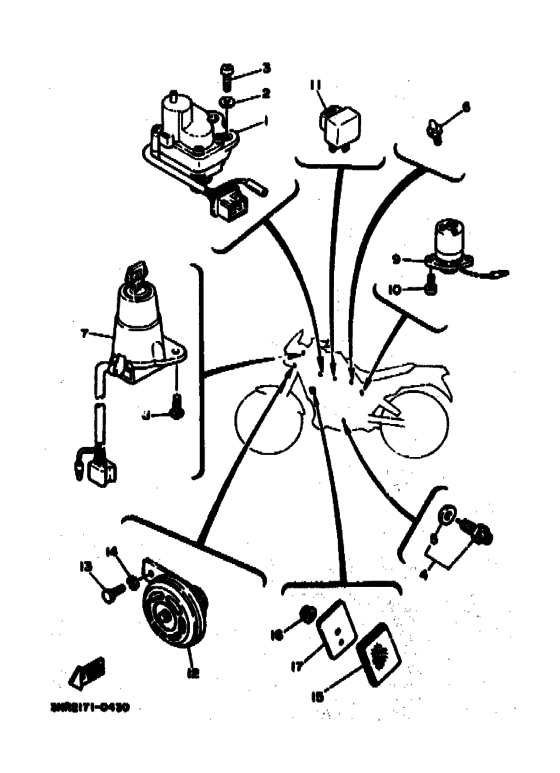

Electrical 2 Diagram Yamaha TDR250
- Year
- 1990
- Colour
- Sweet Blue (SWB; 00HN)
- Model code
- 3NR2
- Sales region
- Europe (010)
- Engine Capacity
- 250
- Color Variant
- A
- Model
- TDR250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2XT-35820-00-00
Servo Motor Assy
|
2XT-35820-00-00 |
— | ||
|
2
|
2
90201-06067-00 Washer, Plate |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
2
|
2
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
|
3
|
3
98501-06025-00 Screw Pan Head |
98501-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
3
|
3
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
4
|
4
2H7-82540-00-00
Neutral Switch Assy
|
2H7-82540-00-00 |
— | ||
| replacements | |||||
|
4
|
4
4KM-82540-00-00
Neutral Switch Assy
|
4KM-82540-00-00 |
— | ||
|
4
|
4
4GY-82540-10-00 Neutral Switch Assy |
4GY-82540-10-00 |
from US $26.22 |
||
|
5
|
5
341-82543-00-00
Gasket
|
341-82543-00-00 |
— | ||
| replacement | |||||
|
5
|
5
296-82543-00-00 Gasket |
296-82543-00-00 |
from US $2.69 |
||
|
6
|
6
2YK-83591-00-00 Thermo Unit |
2YK-83591-00-00 |
from US $41.65 |
||
|
7
|
7
2YK-82501-00-00 Main Swch Strg Lck |
2YK-82501-00-00 |
US $268.88 |
||
| replacement | |||||
|
7
|
7
3TU-82501-00-00 Main Switch Steering Lock |
3TU-82501-00-00 |
US $268.88 |
||
|
8
|
8
90149-06228-00 Screw |
90149-06228-00 |
from US $1.70 |
||
| replacement | |||||
|
8
|
8
90149-06308-00 Screw(4Hm) |
90149-06308-00 |
from US $1.81 |
||
|
9
|
9
5G9-85720-00-00
Oil Level Gauge Assy
|
5G9-85720-00-00 |
— | ||
|
10
|
10
91311-06016-00 Bolt, Hexagon Socket Head |
91311-06016-00 |
from US $1.52 |
||
| replacement | |||||
|
10
|
10
91314-06016-00 Bolt, Hexagon Socket Head |
91314-06016-00 |
from US $1.42 |
||
|
11
|
11
33M-83350-20-00
Flasher Relay Assy
|
33M-83350-20-00 |
— | ||
|
12
|
12
33M-83371-20-00 Horn |
33M-83371-20-00 |
from US $55.54 |
||
| replacement | |||||
|
12
|
12
4KG-83371-11-00 Horn |
4KG-83371-11-00 |
from US $55.54 |
||
|
13
|
13
97003-06012-00 Bolt,kt100S/j Recoil Starter |
97003-06012-00 |
from US $3.12 |
||
| replacements | |||||
|
13
|
13
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
13
|
13
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
|
14
|
14
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
14
|
14
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
15
|
15
23V-85110-00-00 Reflector Assy |
23V-85110-00-00 |
from US $15.30 |
||
|
16
|
16
957-01055-00-00
Nut, Flange
|
957-01055-00-00 |
— | ||
| replacement | |||||
|
16
|
16
95707-05500-00 Nut, Flange |
95707-05500-00 |
from US $1.07 |
||
|
17
|
17
3NR-85113-00-00
Damper
|
3NR-85113-00-00 |
— | ||
