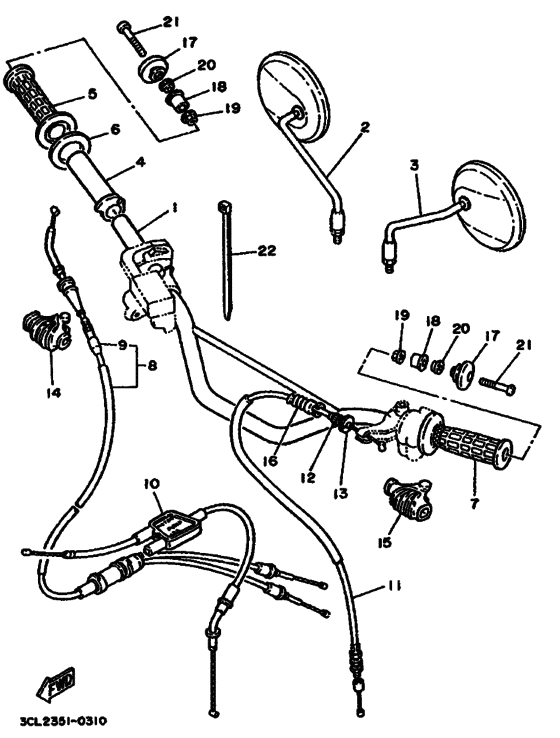

Steering handle & cable Diagram Yamaha TDR250
- Year
- 1990
- Colour
- Sweet Blue (SWB; 00HN)
- Model code
- 3NR2
- Sales region
- Europe (010)
- Engine Capacity
- 250
- Color Variant
- A
- Model
- TDR250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2X6-26111-00-00
Handle
|
2X6-26111-00-00 |
— | ||
| replacements | |||||
|
1
|
1
4ES-26111-10-00
Handlebar
|
4ES-26111-10-00 |
— | ||
|
1
|
1
22W-26111-00-00
Handlebar
|
22W-26111-00-00 |
— | ||
|
2
|
2
55V-26290-00-00 Rear View Mirror Assy (Right) |
55V-26290-00-00 |
US $51.12 |
||
|
3
|
3
55V-26280-00-00 Rear View Mirror Assy(Left)Back mirror assy (left) |
55V-26280-00-00 |
from US $51.12 |
||
|
4
|
4
434-26243-00-00 Tube, Throttle Guide |
434-26243-00-00 |
from US $8.93 |
||
|
5
|
5
55V-26242-00-00
Grip (Right)
|
55V-26242-00-00 |
— | ||
|
6
|
6
1M1-26249-01-00 Ring, Leaf |
1M1-26249-01-00 |
from US $3.68 |
||
|
7
|
7
55V-26241-00-00 Grip (LH) |
55V-26241-00-00 |
from US $14.82 |
||
| replacement | |||||
|
7
|
7
55V-26241-01-00 GRIP (LH) |
55V-26241-01-00 |
US $18.27 |
||
|
8
|
8
2YK-26260-00-00
Cable Assy, Throttle & Pump
|
2YK-26260-00-00 |
— | ||
|
9
|
9
2YK-26329-00-00
Cap, Rubber
|
2YK-26329-00-00 |
— | ||
|
10
|
10
2YK-26320-00-00
Pump Cable Assy
|
2YK-26320-00-00 |
— | ||
|
11
|
11
2YK-26335-00-00 Cable, clutch |
2YK-26335-00-00 |
US $39.65 |
||
|
12
|
12
901-23080-46-00 Bolt |
901-23080-46-00 |
from US $3.74 |
||
| replacement | |||||
|
12
|
12
901-23080-02-00 Bolt |
901-23080-02-00 |
from US $3.74 |
||
|
13
|
13
901-79081-48-00
Nut
|
901-79081-48-00 |
— | ||
| replacement | |||||
|
13
|
13
901-79080-30-00 Nut |
901-79080-30-00 |
from US $6.94 |
||
|
14
|
14
1T5-26372-00-00 Cover, Handle Lever 1 |
1T5-26372-00-00 |
from US $14.29 |
||
|
15
|
15
1E6-26372-00-00 Cover, Handle Lever 1 |
1E6-26372-00-00 |
from US $14.29 |
||
|
16
|
16
1E6-26342-00-00 Boot, Cable |
1E6-26342-00-00 |
from US $15.68 |
||
|
17
|
17
55V-26246-00-00
End, Grip
|
55V-26246-00-00 |
— | ||
|
18
|
18
55V-2622F-00-00
Damper, Locating 1 (55V-2622F-0
|
55V-2622F-00-00 |
— | ||
| replacement | |||||
|
18
|
18
21A-2622F-00-00
Damper, Locating 1 (55V-2622F-0
|
21A-2622F-00-00 |
— | ||
|
19
|
19
90179-06498-00 Nut |
90179-06498-00 |
from US $7.58 |
||
|
20
|
20
903-87066-81-00
Collar
|
903-87066-81-00 |
— | ||
| replacement | |||||
|
20
|
20
90387-06857-00 Collar |
90387-06857-00 |
from US $1.52 |
||
|
21
|
21
98506-06040-00 Screw, Pan Head |
98506-06040-00 |
from US $1.56 |
||
| replacement | |||||
|
21
|
21
98507-06040-00 Screw, Pan Head |
98507-06040-00 |
from US $1.56 |
||
|
22
|
22
90464-13080-00 Band |
90464-13080-00 |
from US $1.28 |
||
| replacement | |||||
|
22
|
22
1UA-82591-00-00 Band |
1UA-82591-00-00 |
from US $1.52 |
||
