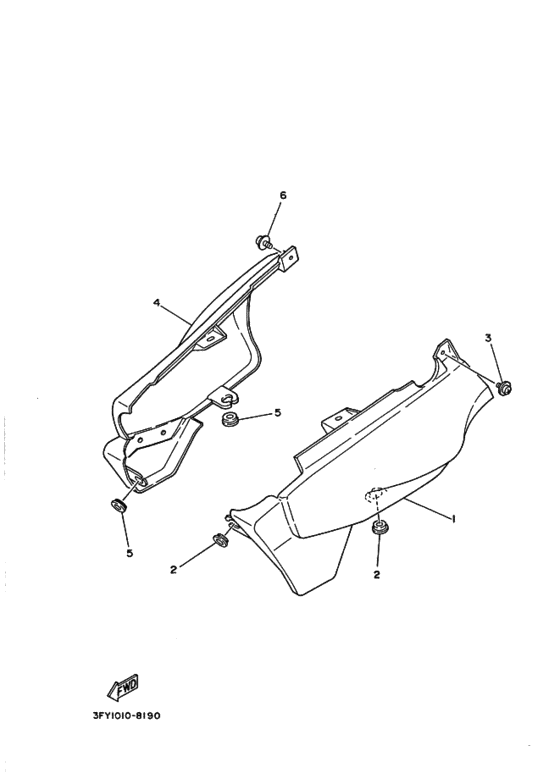

Side cover Diagram Yamaha TDR80
- Year
- 1988
- Colour
- Yamaha Black (YB; 0033)
- Model code
- 3GA1
- Sales region
- Japan (010)
- Engine Capacity
- 80
- Color Variant
- C
- Model
- TDR80
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3FY-21711-20-00
Cover, Side 1
カバー，サイド １; ＵＲ ヤマハブラツク |
3FY-21711-20-00 |
— | ||
|
2
|
2
90480-12320-00 Grommet |
90480-12320-00 |
from US $1.50 |
||
|
3
|
3
90159-05061-00 Screw, With Washer |
90159-05061-00 |
from US $1.65 |
||
| replacement | |||||
|
3
|
3
90159-05056-00 Screw, With Washer |
90159-05056-00 |
from US $1.65 |
||
|
4
|
4
3FY-21721-20-00
Cover, Side 2
カバー，サイド ２; ＵＲ ヤマハブラツク |
3FY-21721-20-00 |
— | ||
| replacement | |||||
|
4
|
4
999-99999-99-00
Not Available
カバー，サイド ２; ＵＲ ヤマハブラツク |
999-99999-99-00 |
— | ||
|
5
|
5
90480-12320-00 Grommet |
90480-12320-00 |
from US $1.50 |
||
|
6
|
6
90159-05061-00 Screw, With Washer |
90159-05061-00 |
from US $1.65 |
||
| replacement | |||||
|
6
|
6
90159-05056-00 Screw, With Washer |
90159-05056-00 |
from US $1.65 |
||
