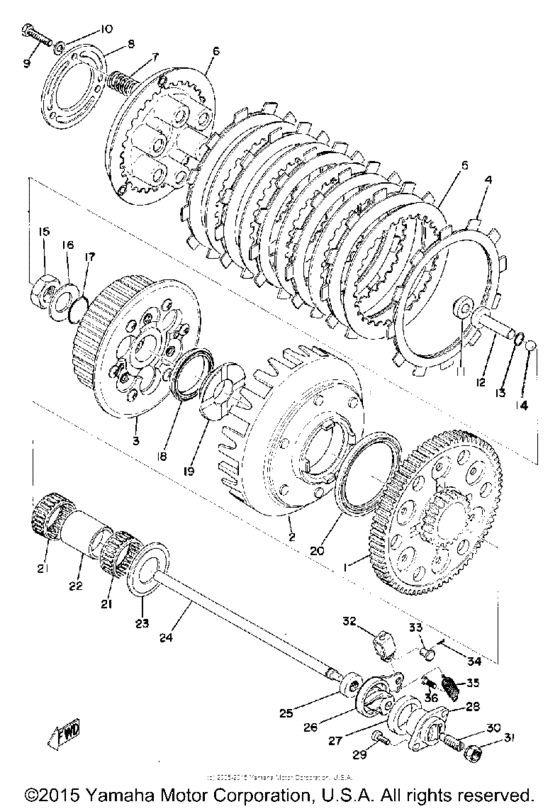

Clutch Diagram Yamaha TR2/ TR3
- Year
- 1972
- Sales region
- USA
- Engine Capacity
- 300
- Model
- TR3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
970-11060-25-00
Bolt
|
970-11060-25-00 |
— | ||
| replacement | |||||
|
1
|
1
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.36 |
||
|
1
|
1
329-16150-10-00
Pri Drvn Gear
|
329-16150-10-00 |
— | ||
|
1
|
1
328-16150-10-00
Pri Drvn Gear
|
328-16150-10-00 |
— | ||
|
1
|
1
328-16301-11-00
Clutch Assembly
|
328-16301-11-00 |
— | ||
|
2
|
2
328-16160-10-00
Buffer Boss Assembly
|
328-16160-10-00 |
— | ||
|
3
|
3
328-16370-10-00
Clutch Boss Assembly
|
328-16370-10-00 |
— | ||
| replacement | |||||
|
3
|
3
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
4
|
4
383-16321-10-00 Plate, Friction |
383-16321-10-00 |
from US $27.40 |
||
| replacement | |||||
|
4
|
4
3YL-16321-01-00 Plate, Friction |
3YL-16321-01-00 |
from US $32.81 |
||
|
5
|
5
328-16324-10-00
Plate, Clutch 1
|
328-16324-10-00 |
— | ||
| replacement | |||||
|
5
|
5
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
6
|
6
328-16350-00-00
Pressure Plate Assembly
|
328-16350-00-00 |
— | ||
|
7
|
7
905-01231-38-00 Spring, Compression |
905-01231-38-00 |
from US $3.04 |
||
|
8
|
8
328-16352-00-00
Plate, Pressure 2
|
328-16352-00-00 |
— | ||
|
9
|
9
970-11060-25-00
Bolt
|
970-11060-25-00 |
— | ||
| replacement | |||||
|
9
|
9
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.36 |
||
|
10
|
10
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
11
|
11
328-16366-10-00
Bush
|
328-16366-10-00 |
— | ||
|
12
|
12
174-16356-00-00 Rod, Push 1 |
174-16356-00-00 |
from US $15.78 |
||
|
13
|
13
93210-09350-00 O-Ring |
93210-09350-00 |
from US $1.39 |
||
| replacement | |||||
|
13
|
13
93210-09811-00 O-Ring |
93210-09811-00 |
from US $1.39 |
||
|
14
|
14
93505-16006-00 Ball |
93505-16006-00 |
from US $1.70 |
||
|
15
|
15
90170-18089-00
Nut Hexagon 156161740000
|
90170-18089-00 |
— | ||
|
16
|
16
214-16119-00-00 Spring, Belleville |
214-16119-00-00 |
from US $9.57 |
||
|
17
|
17
93210-22298-00 O-Ring |
93210-22298-00 |
from US $1.39 |
||
|
18
|
18
93107-40006-00
Oil Seal, Os-Type
|
93107-40006-00 |
— | ||
| replacement | |||||
|
18
|
18
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
19
|
19
328-16182-10-00
Spacer 2
|
328-16182-10-00 |
— | ||
| replacement | |||||
|
19
|
19
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
20
|
20
93102-66439-00 Oil Seal, S-Type |
93102-66439-00 |
from US $16.94 |
||
|
21
|
21
93310-23356-00
Bearing, Cylinder.#10
|
93310-23356-00 |
— | ||
| replacement | |||||
|
21
|
21
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
22
|
22
278-16181-01-00 Spacer 1 |
278-16181-01-00 |
from US $23.58 |
||
|
23
|
23
278-16154-00-00
Plate, Thrust 1
|
278-16154-00-00 |
— | ||
| replacement | |||||
|
23
|
23
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
24
|
24
328-16357-00-00 Rod, Push 2 |
328-16357-00-00 |
from US $29.89 |
||
|
25
|
25
93109-08061-00 Oil Seal |
93109-08061-00 |
from US $3.38 |
||
|
26
|
26
278-16340-00-00
Push Lever Assembly
|
278-16340-00-00 |
— | ||
|
27
|
27
214-16347-01-00
Seal, Dust
|
214-16347-01-00 |
— | ||
| replacement | |||||
|
27
|
27
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
28
|
28
371-16396-00-00
Housing, Push Screw
|
371-16396-00-00 |
— | ||
|
29
|
29
98580-05012-00 Screw, Pan Head |
98580-05012-00 |
from US $2.13 |
||
|
30
|
30
90113-08021-00 Bolt, Set |
90113-08021-00 |
from US $4.53 |
||
|
31
|
31
90179-08179-00 Nut |
90179-08179-00 |
from US $4.39 |
||
|
32
|
32
214-16389-00-00 Joint |
214-16389-00-00 |
from US $9.49 |
||
|
33
|
33
90240-06005-00 Pin, Clevis |
90240-06005-00 |
from US $5.53 |
||
|
34
|
34
914-01100-15-00
Pin, Cotter
|
914-01100-15-00 |
— | ||
|
35
|
35
90506-10023-00
Spring, Tension
|
90506-10023-00 |
— | ||
| replacement | |||||
|
35
|
35
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
36
|
36
132-16346-00-00 Hook, Spring |
132-16346-00-00 |
from US $1.84 |
||
