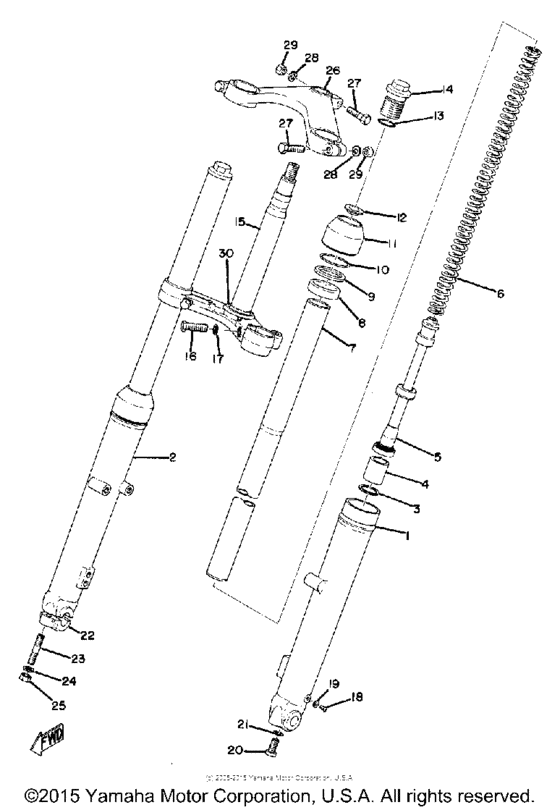

Front fork Diagram Yamaha TR2/ TR3
- Year
- 1972
- Sales region
- USA
- Engine Capacity
- 300
- Model
- TR3
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
328-23100-00-00
Front Fork Assembly
|
328-23100-00-00 |
— | ||
|
1
|
1
328-23126-00-00
Tube, Outer 1
|
328-23126-00-00 |
— | ||
|
2
|
2
278-23136-50-00
Tube, Outer 2
|
278-23136-50-00 |
— | ||
|
3
|
3
934-50300-33-00
Circlip, Inner
|
934-50300-33-00 |
— | ||
|
4
|
4
278-23171-50-00
Piston, Front Fork
|
278-23171-50-00 |
— | ||
| replacement | |||||
|
4
|
4
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
5
|
5
328-23170-00-00
Cylinder, Frtfrk
|
328-23170-00-00 |
— | ||
|
6
|
6
328-23141-00-00
Spring, Front Fork
|
328-23141-00-00 |
— | ||
|
7
|
7
328-23124-00-00
Tube, Inner 1
|
328-23124-00-00 |
— | ||
|
8
|
8
278-23145-51-00
Oil Seal
|
278-23145-51-00 |
— | ||
| replacement | |||||
|
8
|
8
584-23145-50-00 Oil Seal |
584-23145-50-00 |
from US $24.65 |
||
|
9
|
9
214-23146-00-00
Washer, Oil Seal
|
214-23146-00-00 |
— | ||
| replacement | |||||
|
9
|
9
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
10
|
10
214-23156-00-00
Clip, Oil Seal
|
214-23156-00-00 |
— | ||
| replacement | |||||
|
10
|
10
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
11
|
11
292-23144-00-00
Seal, Dust
|
292-23144-00-00 |
— | ||
|
12
|
12
278-23142-50-00
Seat, Spring Upper
|
278-23142-50-00 |
— | ||
| replacement | |||||
|
12
|
12
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
13
|
13
214-23114-00-00
Gasket
|
214-23114-00-00 |
— | ||
| replacement | |||||
|
13
|
13
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
14
|
14
291-23111-60-00
Bolt, Cap
|
291-23111-60-00 |
— | ||
| replacement | |||||
|
14
|
14
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
15
|
15
328-23340-00-33
Under Bracket
|
328-23340-00-33 |
— | ||
|
16
|
16
5J0-23346-00-00
Bolt 1
|
5J0-23346-00-00 |
— | ||
| replacement | |||||
|
16
|
16
122-23346-02-00 Bolt 1 |
122-23346-02-00 |
from US $6.66 |
||
|
17
|
17
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.66 |
||
|
18
|
18
98580-04008-00 Screw, Pan Head (713) |
98580-04008-00 |
from US $1.39 |
||
|
19
|
19
122-23129-00-00 Gasket, Drain Plug |
122-23129-00-00 |
from US $3.26 |
||
|
20
|
20
278-23181-50-00
Bolt, Hexagon Socket Head
|
278-23181-50-00 |
— | ||
| replacement | |||||
|
20
|
20
3D8-23181-00-00 Bolt, Hexagon Socket Head |
3D8-23181-00-00 |
from US $5.41 |
||
|
21
|
21
509-23158-L0-00 Gasket |
509-23158-L0-00 |
from US $4.03 |
||
|
22
|
22
278-23167-50-00
Holder, Axle
|
278-23167-50-00 |
— | ||
|
23
|
23
90116-08261-00 Bolt, Stud |
90116-08261-00 |
from US $1.33 |
||
|
24
|
24
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
25
|
25
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
| replacement | |||||
|
25
|
25
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
26
|
26
240-23435-00-00
Crown, Handle
|
240-23435-00-00 |
— | ||
|
27
|
27
97313-08040-00 Bolt, Hexagon |
97313-08040-00 |
US $5.29 |
||
| replacements | |||||
|
27
|
27
97014-08040-00 Bolt, Hexagon |
97014-08040-00 |
from US $2.35 |
||
|
27
|
27
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
28
|
28
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
29
|
29
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
| replacement | |||||
|
29
|
29
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
30
|
30
164-23462-00-00 Seal, Dust |
164-23462-00-00 |
from US $4.72 |
||
