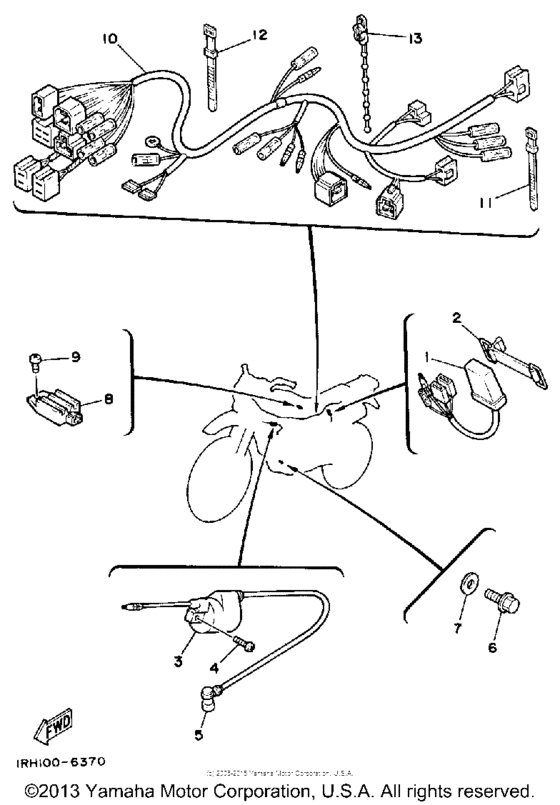

Electrical Diagram Yamaha TT225
- Year
- 1986
- Sales region
- USA
- Engine Capacity
- 225
- Model
- TT225
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1KH-85540-M0-00
Cdi Unit Assembly
|
1KH-85540-M0-00 |
— | ||
|
2
|
2
3TJ-82131-00-00 Band, Battery |
3TJ-82131-00-00 |
from US $10.96 |
||
|
3
|
3
5M0-82310-M0-00
Ignition Coil Assemb
|
5M0-82310-M0-00 |
— | ||
| replacements | |||||
|
3
|
3
4RP-82310-29-00 Ignition Coil Assembly |
4RP-82310-29-00 |
from US $89.39 |
||
|
3
|
3
4RP-82310-28-00 Ignition Coil Assy |
4RP-82310-28-00 |
from US $91.57 |
||
|
3
|
3
4RP-82310-27-00
Ignition Coil Assy
|
4RP-82310-27-00 |
— | ||
|
3
|
3
4RP-82310-26-00 Ignition Coil Assy |
4RP-82310-26-00 |
from US $81.02 |
||
|
4
|
4
985-03060-14-00
Screw, Pan Head
|
985-03060-14-00 |
— | ||
| replacement | |||||
|
4
|
4
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
5
|
5
55X-82370-00-00 Plug Cap Assy |
55X-82370-00-00 |
from US $32.87 |
||
| replacements | |||||
|
5
|
5
4BP-82370-00-00 Plug Cap Assy |
4BP-82370-00-00 |
from US $32.87 |
||
|
5
|
5
4BP-82370-01-00 PLUG CAP ASSY |
4BP-82370-01-00 |
from US $29.76 |
||
|
6
|
6
90340-10003-00 Plug, Straight Scrw |
90340-10003-00 |
from US $3.12 |
||
|
7
|
7
90430-10171-00 Gasket (5R6) |
90430-10171-00 |
from US $1.39 |
||
|
8
|
8
1RH-81960-A0-00 Rectifier/reg Assemblyassy |
1RH-81960-A0-00 |
US $203.76 |
||
|
9
|
9
985-80060-10-00 Screw, Pan Head (92503-06010-0092503-06010-00 |
985-80060-10-00 |
from US $1.42 |
||
|
10
|
10
1RH-82590-00-00
Wire Harness Assembly
|
1RH-82590-00-00 |
— | ||
|
11
|
11
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
|
12
|
12
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
|
13
|
13
90464-20031-00 Clamp |
90464-20031-00 |
from US $1.70 |
||
| replacement | |||||
|
13
|
13
90464-20824-00
Clamp
|
90464-20824-00 |
— | ||
