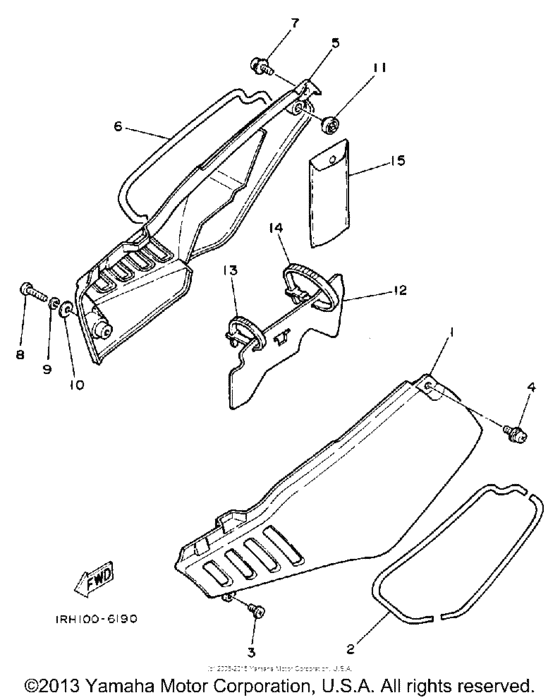

Side cover Diagram Yamaha TT225
- Year
- 1986
- Sales region
- USA
- Engine Capacity
- 225
- Model
- TT225
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1RH-21711-00-00
Cover, Side 1
CLEAN WHITE |
1RH-21711-00-00 |
— | ||
|
2
|
2
1RH-2173L-00-00
Graphic Set 1
|
1RH-2173L-00-00 |
— | ||
|
3
|
3
90154-05013-00 Screw, Binding |
90154-05013-00 |
from US $1.81 |
||
|
4
|
4
901-59060-82-00
Screw, Panhead W/washer (22F)
|
901-59060-82-00 |
— | ||
| replacement | |||||
|
4
|
4
98507-06016-00 Screw, Pan Head |
98507-06016-00 |
from US $1.52 |
||
|
5
|
5
1RH-21721-00-98
Cover, Side 2
LOW GLOSS BLK/WHITE |
1RH-21721-00-98 |
— | ||
|
6
|
6
1RH-2174L-00-00 Graphic Set 2 |
1RH-2174L-00-00 |
US $28.93 |
||
|
7
|
7
901-59060-82-00
Screw, Panhead W/washer (22F)
|
901-59060-82-00 |
— | ||
| replacement | |||||
|
7
|
7
98507-06016-00 Screw, Pan Head |
98507-06016-00 |
from US $1.52 |
||
|
8
|
8
98516-06030-00 Screw, Pan Head |
98516-06030-00 |
US $2.13 |
||
| replacement | |||||
|
8
|
8
98517-06030-00 Screw, Pan Head |
98517-06030-00 |
from US $1.70 |
||
|
9
|
9
929-06061-00-00
Washer, Spring
|
929-06061-00-00 |
— | ||
| replacement | |||||
|
9
|
9
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.88 |
||
|
10
|
10
90201-06067-00 Washer, Plate |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
10
|
10
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
|
11
|
11
22W-24181-00-00 Damper, Locating 1 |
22W-24181-00-00 |
from US $3.89 |
||
|
12
|
12
1RH-2177F-00-00
Cover
|
1RH-2177F-00-00 |
— | ||
|
13
|
13
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.81 |
||
|
14
|
14
437-83936-11-00 Band, Switch Cord |
437-83936-11-00 |
from US $1.56 |
||
|
15
|
15
1RH-28100-00-00 Tool Kit (5H0-28100-10-00)5H0-28100-10-00 |
1RH-28100-00-00 |
from US $103.34 |
||
| replacement | |||||
|
15
|
15
36X-W2810-00-00 Tool Kit (5H0-28100-10-00)5H0-28100-10-00 |
36X-W2810-00-00 |
from US $100.66 |
||
