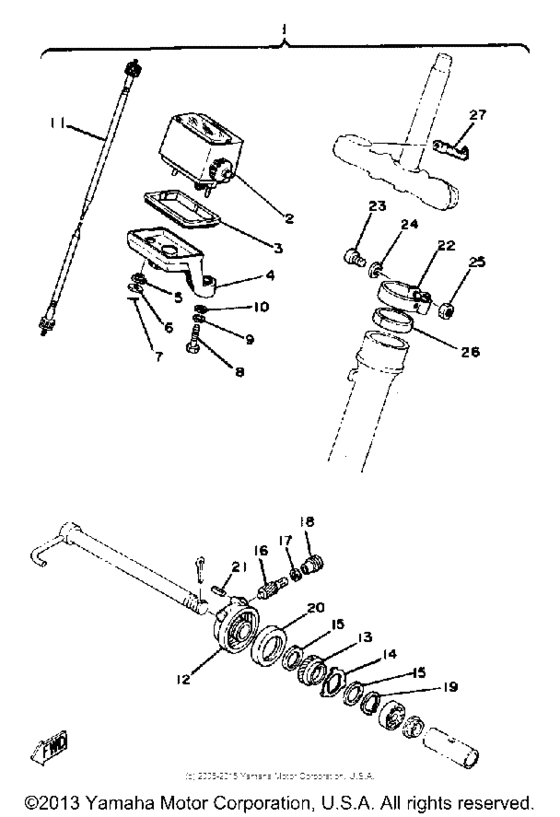

Meter kit Diagram Yamaha TT250
- Year
- 1981
- Sales region
- USA
- Engine Capacity
- 250
- Model
- TT250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3Y0-W0081-00-00
2002504234
|
3Y0-W0081-00-00 |
— | ||
|
2
|
2
3R8-83570-60-00
Speedometer Assembly
|
3R8-83570-60-00 |
— | ||
|
3
|
3
3R8-83513-00-00
Damper
|
3R8-83513-00-00 |
— | ||
|
4
|
4
3R8-83519-00-00
Bracket, Meter
|
3R8-83519-00-00 |
— | ||
|
5
|
5
1M1-83526-00-00
Damper 2
|
1M1-83526-00-00 |
— | ||
| replacement | |||||
|
5
|
5
1M1-83526-01-00 Damper 2 |
1M1-83526-01-00 |
from US $5.72 |
||
|
6
|
6
902-01052-E2-00
Washer, Plate
|
902-01052-E2-00 |
— | ||
| replacement | |||||
|
6
|
6
90201-05032-00 Washer Plate 803835240000 |
90201-05032-00 |
from US $1.81 |
||
|
7
|
7
90468-10050-00 Clip (156-83525-00) |
90468-10050-00 |
from US $1.84 |
||
|
8
|
8
970-21060-30-00
Bolt
|
970-21060-30-00 |
— | ||
| replacements | |||||
|
8
|
8
97017-06030-00 Bolt |
97017-06030-00 |
from US $1.07 |
||
|
8
|
8
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.36 |
||
|
9
|
9
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
10
|
10
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
10
|
10
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.18 |
||
|
10
|
10
902-01061-A5-00 Washer, Plate (4H7) |
902-01061-A5-00 |
from US $2.08 |
||
|
10
|
10
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.18 |
||
|
11
|
11
34X-83550-01-00
Spdmtr, Cable
|
34X-83550-01-00 |
— | ||
| replacement | |||||
|
11
|
11
16M-83550-01-00 Speedometer Cable Assy |
16M-83550-01-00 |
from US $48.55 |
||
|
12
|
12
1W2-25190-00-00
Gear Unit Assembly
|
1W2-25190-00-00 |
— | ||
| replacement | |||||
|
12
|
12
3XP-25190-00-00 Gear Unit Assembly |
3XP-25190-00-00 |
from US $146.45 |
||
|
13
|
13
1W2-25135-00-00
Gear, Drive
|
1W2-25135-00-00 |
— | ||
|
14
|
14
1K7-25149-00-00
Clutch, Meter
|
1K7-25149-00-00 |
— | ||
|
15
|
15
90201-22283-00 Washer, Plate |
90201-22283-00 |
from US $1.56 |
||
|
16
|
16
1W2-25138-00-00
Gear, Meter
|
1W2-25138-00-00 |
— | ||
|
17
|
17
102-18416-00-00
Shim, Rod
|
102-18416-00-00 |
— | ||
| replacement | |||||
|
17
|
17
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
18
|
18
306-25136-00-00
Bush
|
306-25136-00-00 |
— | ||
|
19
|
19
93410-22014-00 Circlip |
93410-22014-00 |
from US $1.56 |
||
| replacement | |||||
|
19
|
19
99009-22400-00 Circlip |
99009-22400-00 |
from US $1.56 |
||
|
20
|
20
93106-40027-00 Oil Seal |
93106-40027-00 |
from US $7.21 |
||
|
21
|
21
91609-20014-00 Pin, Spring |
91609-20014-00 |
from US $2 |
||
|
22
|
22
1W2-23318-00-00
Holder, Cable 1
|
1W2-23318-00-00 |
— | ||
|
23
|
23
98501-05018-00 Screw, Pan Head |
98501-05018-00 |
from US $1.56 |
||
| replacements | |||||
|
23
|
23
98507-05018-00 Screw, Pan Head |
98507-05018-00 |
from US $1.56 |
||
|
23
|
23
98580-05018-00 Screw Panhead (669) |
98580-05018-00 |
from US $2.27 |
||
|
24
|
24
929-01056-00-00
Washer
|
929-01056-00-00 |
— | ||
| replacements | |||||
|
24
|
24
92990-05600-00 Washer, Plate |
92990-05600-00 |
from US $1.07 |
||
|
24
|
24
92907-05600-00 Washer, Plate |
92907-05600-00 |
from US $1.18 |
||
|
25
|
25
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
26
|
26
3CV-28371-00-00 Damper |
3CV-28371-00-00 |
from US $2.16 |
||
| replacement | |||||
|
26
|
26
3FA-21639-00-00 Damper 2 |
3FA-21639-00-00 |
from US $4.25 |
||
|
27
|
27
904-62080-35-00
Clamp
|
904-62080-35-00 |
— | ||
