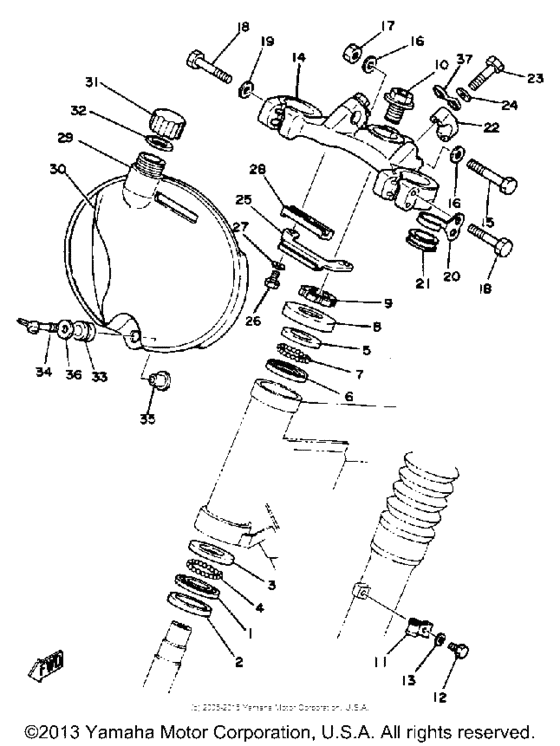

Steering Diagram Yamaha TT250
- Year
- 1981
- Sales region
- USA
- Engine Capacity
- 250
- Model
- TT250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
156-23411-00-00 Race, Ball 1 |
156-23411-00-00 |
from US $17.10 |
||
| replacement | |||||
|
1
|
1
B6E-23411-00-00 Race, Ball 1 |
B6E-23411-00-00 |
from US $9.65 |
||
|
2
|
2
164-23462-00-00 Seal, Dust |
164-23462-00-00 |
from US $4.72 |
||
|
3
|
3
156-23412-00-00 Race, Ball 2 |
156-23412-00-00 |
from US $12.48 |
||
| replacement | |||||
|
3
|
3
B6E-23412-00-00 Race, Ball 2 |
B6E-23412-00-00 |
from US $11.83 |
||
|
4
|
4
93501-04011-00 Ball |
93501-04011-00 |
from US $1.70 |
||
|
5
|
5
22F-23411-01-00 Race, Ball 1 |
22F-23411-01-00 |
US $9.71 |
||
| replacement | |||||
|
5
|
5
BP2-23411-00-00 Race, Ball 1 |
BP2-23411-00-00 |
from US $9.71 |
||
|
6
|
6
22F-23412-01-00 Race, Ball 2 |
22F-23412-01-00 |
US $8.74 |
||
| replacement | |||||
|
6
|
6
BP2-23412-00-00 Race, Ball 2 |
BP2-23412-00-00 |
from US $8.74 |
||
|
7
|
7
93503-16010-00 Ball 3-16 |
93503-16010-00 |
from US $1.39 |
||
| replacement | |||||
|
7
|
7
93503-16003-00 Ball |
93503-16003-00 |
from US $1.39 |
||
|
8
|
8
10V-23416-01-00 Cover Ball Race |
10V-23416-01-00 |
from US $14.88 |
||
|
9
|
9
901-79250-33-00
Nut
|
901-79250-33-00 |
— | ||
| replacements | |||||
|
9
|
9
901-79250-04-00 Nut |
901-79250-04-00 |
from US $4.86 |
||
|
9
|
9
90179-25003-00 Nut |
90179-25003-00 |
from US $9.92 |
||
|
10
|
10
90105-14102-00 Bolt, Flange |
90105-14102-00 |
from US $7.97 |
||
|
11
|
11
3Y1-23319-00-00 Wire, Holder 2 |
3Y1-23319-00-00 |
from US $5.97 |
||
|
12
|
12
97026-06012-00 Bolt(85G) |
97026-06012-00 |
from US $1.21 |
||
| replacement | |||||
|
12
|
12
97017-06012-00 Bolt |
97017-06012-00 |
from US $1.39 |
||
|
13
|
13
929-06061-00-00
Washer, Spring
|
929-06061-00-00 |
— | ||
| replacement | |||||
|
13
|
13
92907-06100-00 Washer, Spring |
92907-06100-00 |
from US $0.88 |
||
|
14
|
14
5X3-23435-01-98
Crown, Handle
|
5X3-23435-01-98 |
— | ||
|
15
|
15
97313-08055-00 Bolt (661)661 |
97313-08055-00 |
from US $4.12 |
||
| replacement | |||||
|
15
|
15
97013-08055-00 Bolt661 |
97013-08055-00 |
from US $3.55 |
||
|
16
|
16
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
16
|
16
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
17
|
17
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
| replacement | |||||
|
17
|
17
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
18
|
18
97313-08040-00 Bolt, Hexagon |
97313-08040-00 |
US $5.29 |
||
| replacements | |||||
|
18
|
18
97014-08040-00 Bolt, Hexagon |
97014-08040-00 |
from US $2.35 |
||
|
18
|
18
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
19
|
19
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
19
|
19
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
20
|
20
3Y0-23319-00-00
Holder, Cable 2
|
3Y0-23319-00-00 |
— | ||
|
21
|
21
1W1-23389-00-00 Guide, Cable |
1W1-23389-00-00 |
from US $12.75 |
||
|
22
|
22
1E6-23441-10-38
Holder, Handle Upr
|
1E6-23441-10-38 |
— | ||
|
23
|
23
90106-08032-00
Bolt, Dome Head
|
90106-08032-00 |
— | ||
| replacement | |||||
|
23
|
23
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
24
|
24
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
24
|
24
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
25
|
25
3Y0-2331A-00-00
Stay
|
3Y0-2331A-00-00 |
— | ||
|
26
|
26
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
26
|
26
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $2.22 |
||
|
27
|
27
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
28
|
28
3Y0-23497-00-00
Grommet
|
3Y0-23497-00-00 |
— | ||
|
29
|
29
3Y0-23477-10-00
Tank, Water
|
3Y0-23477-10-00 |
— | ||
|
30
|
30
3Y0-23395-00-00
Emblem
|
3Y0-23395-00-00 |
— | ||
|
31
|
31
3Y0-23478-00-00
Cap
|
3Y0-23478-00-00 |
— | ||
|
32
|
32
3Y0-23479-00-00
Gasket
|
3Y0-23479-00-00 |
— | ||
|
33
|
33
90480-14023-00 Grommet 839774310000 |
90480-14023-00 |
from US $1.66 |
||
|
34
|
34
901-22060-21-00
Bolt, Wing (38W)
38W |
901-22060-21-00 |
— | ||
|
35
|
35
903-87063-88-00
Collar
|
903-87063-88-00 |
— | ||
| replacement | |||||
|
35
|
35
90387-06158-00 Collar |
90387-06158-00 |
from US $1.66 |
||
|
36
|
36
90201-06M02-00 Washer,plate (6K8) |
90201-06M02-00 |
from US $2.27 |
||
|
37
|
37
1T2-23389-00-00
Guide, Cable
|
1T2-23389-00-00 |
— | ||
| replacement | |||||
|
37
|
37
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
