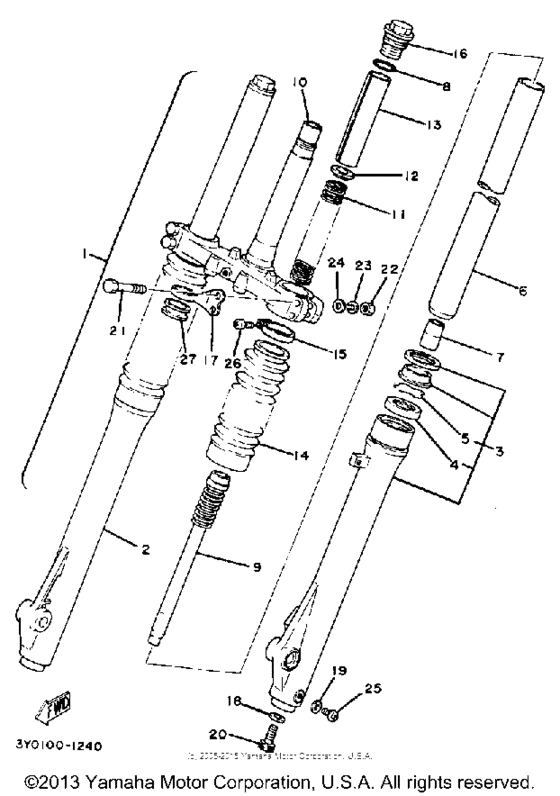

Front fork Diagram Yamaha TT250
- Year
- 1982
- Sales region
- USA
- Engine Capacity
- 250
- Model
- TT250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3Y0-23100-00-00
Front Fork Assembly
|
3Y0-23100-00-00 |
— | ||
|
2
|
2
3Y0-23136-00-38
Tube, Outer 2
CLEAR BUFFING |
3Y0-23136-00-38 |
— | ||
|
3
|
3
3Y0-23126-00-38
Tube, Outer 1
CLEAR BUFFING |
3Y0-23126-00-38 |
— | ||
|
4
|
4
48Y-23145-00-00 Oil Seal |
48Y-23145-00-00 |
from US $16.86 |
||
|
5
|
5
4A1-23156-00-00 Ring, Snap |
4A1-23156-00-00 |
from US $4.22 |
||
|
6
|
6
3Y0-23110-00-00
Inner Tube 1
|
3Y0-23110-00-00 |
— | ||
|
7
|
7
39K-23173-00-00 Spindle, Taper |
39K-23173-00-00 |
US $26.15 |
||
|
8
|
8
1W1-23114-L0-00 Gasket |
1W1-23114-L0-00 |
from US $7.37 |
||
|
9
|
9
3Y0-23170-00-00
Cylinder, Frtfrk
|
3Y0-23170-00-00 |
— | ||
|
10
|
10
3Y0-23340-00-38
Under Bracket
|
3Y0-23340-00-38 |
— | ||
|
11
|
11
3Y0-23141-00-00
Spring, Front Fork
|
3Y0-23141-00-00 |
— | ||
|
12
|
12
1W1-23142-L0-00
Seat, Spring Upper
|
1W1-23142-L0-00 |
— | ||
|
13
|
13
1W1-23118-L0-00
Spacer
|
1W1-23118-L0-00 |
— | ||
|
14
|
14
2X3-23191-M0-00
Boot, Front Fork
|
2X3-23191-M0-00 |
— | ||
|
15
|
15
341-92090-60-00 Band, B00T |
341-92090-60-00 |
from US $28.30 |
||
|
16
|
16
2X7-23111-00-00
Bolt, Cap
|
2X7-23111-00-00 |
— | ||
|
17
|
17
3Y0-23318-00-00
Holder, Cable 1
|
3Y0-23318-00-00 |
— | ||
|
18
|
18
509-23158-L0-00 Gasket |
509-23158-L0-00 |
from US $4.03 |
||
|
19
|
19
122-23129-00-00 Gasket, Drain Plug |
122-23129-00-00 |
from US $3.26 |
||
|
20
|
20
278-23181-50-00
Bolt, Hexagon Socket Head
|
278-23181-50-00 |
— | ||
| replacement | |||||
|
20
|
20
3D8-23181-00-00 Bolt, Hexagon Socket Head |
3D8-23181-00-00 |
from US $5.41 |
||
|
21
|
21
90101-08340-00 Bolt |
90101-08340-00 |
from US $5.04 |
||
|
22
|
22
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.39 |
||
| replacement | |||||
|
22
|
22
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.81 |
||
|
23
|
23
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
24
|
24
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
24
|
24
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.66 |
||
|
25
|
25
4H7-23119-00-00
Screw, Pan Head
|
4H7-23119-00-00 |
— | ||
| replacements | |||||
|
25
|
25
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
25
|
25
985-11040-06-00
Screw, Pan Head (98502-04006)
|
985-11040-06-00 |
— | ||
|
26
|
26
509-23194-L0-00 Screw, Boot Band |
509-23194-L0-00 |
from US $2.98 |
||
|
27
|
27
1W1-23389-00-00 Guide, Cable |
1W1-23389-00-00 |
from US $12.75 |
||
